TRANSPORT BY TRUCK
The MB20N/26 can be carried on a suitably rated transportation vehicle or trailer. Because
of its high gradeability, the machine can be driven under its own power on to a standard
loading ramp (Up to 14 degrees).
It is recommended to reverse the machine up on to the truck thus forward travelling down
the ramp at the delivery point. Winch-assisted loading is allowable for larger slopes,
however, operate the trucks assist winch at minimum speed to avoid overpressurising the
hydraulic system in the machine.
When the MB20N/26 is on the truck or trailer it should then be made secure by:-
1. Chocking the wheels.
2. Securing with adequate chains or straps to the lifting lugs on the chassis.
C A U T I O N
DO NOT loop straps through the cage, ladder or jib as this could cause
permanent structural damage during transportation.

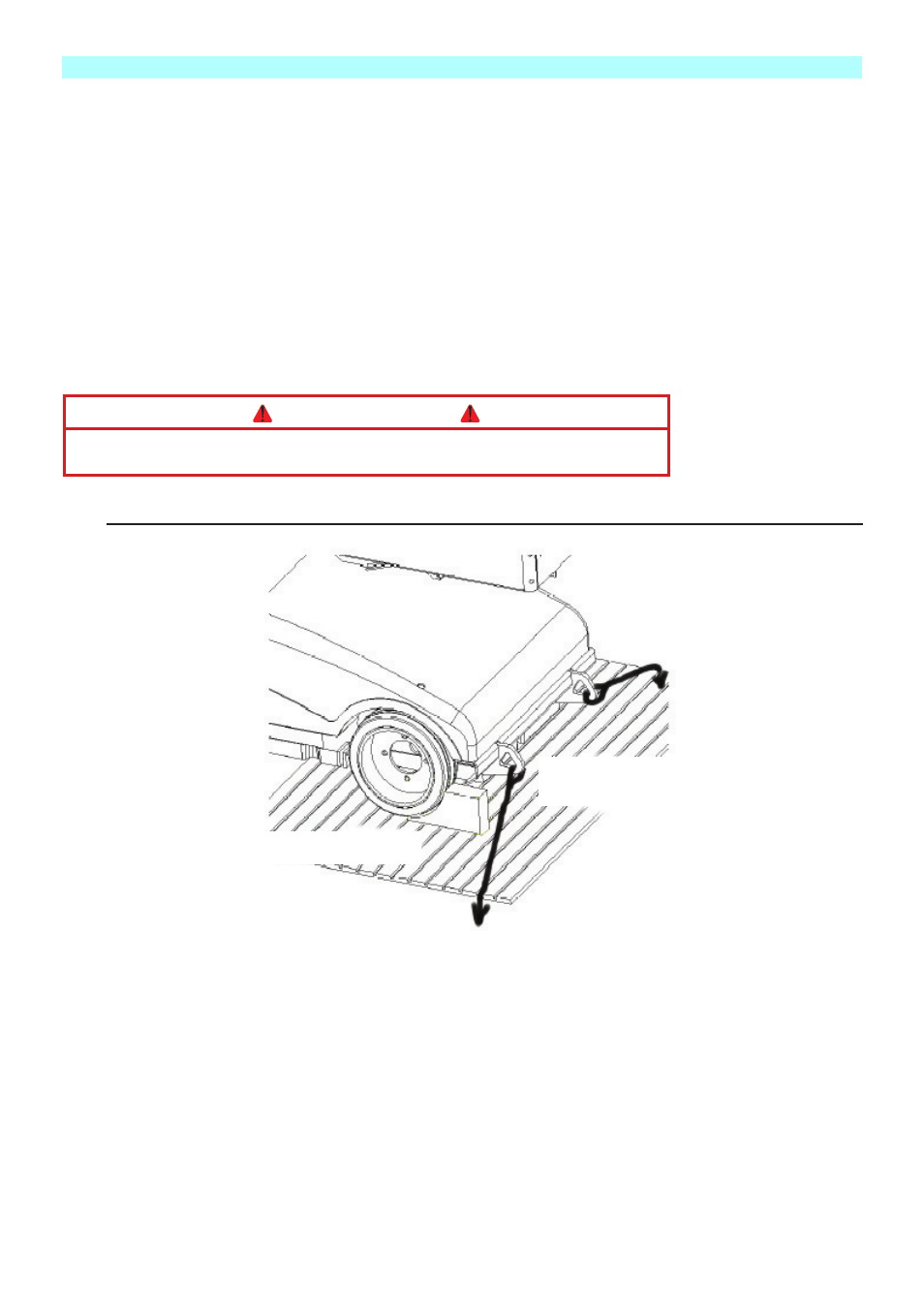

Figure 5: Securing the Platform
TOWING & WINCHING VALVES
The fail-safe brakes are automatically applied when the machine comes to a stop or in the
event of total power loss due to low battery or malfunction of the hydraulic drive system.
To tow the vehicle or to winch it on to a truck it is necessary to hydraulically bypass the
control valves and release these brakes.
Make sure the Jib is tied down securely during transport, DO NOT over tighten straps.
Straps should have adequate slack so no downward force is applied to the Jib.
USE 4 SEPARATE
TIE-DOWNS
WHEEL CHOCKS
