AB46JE – 0260072 15

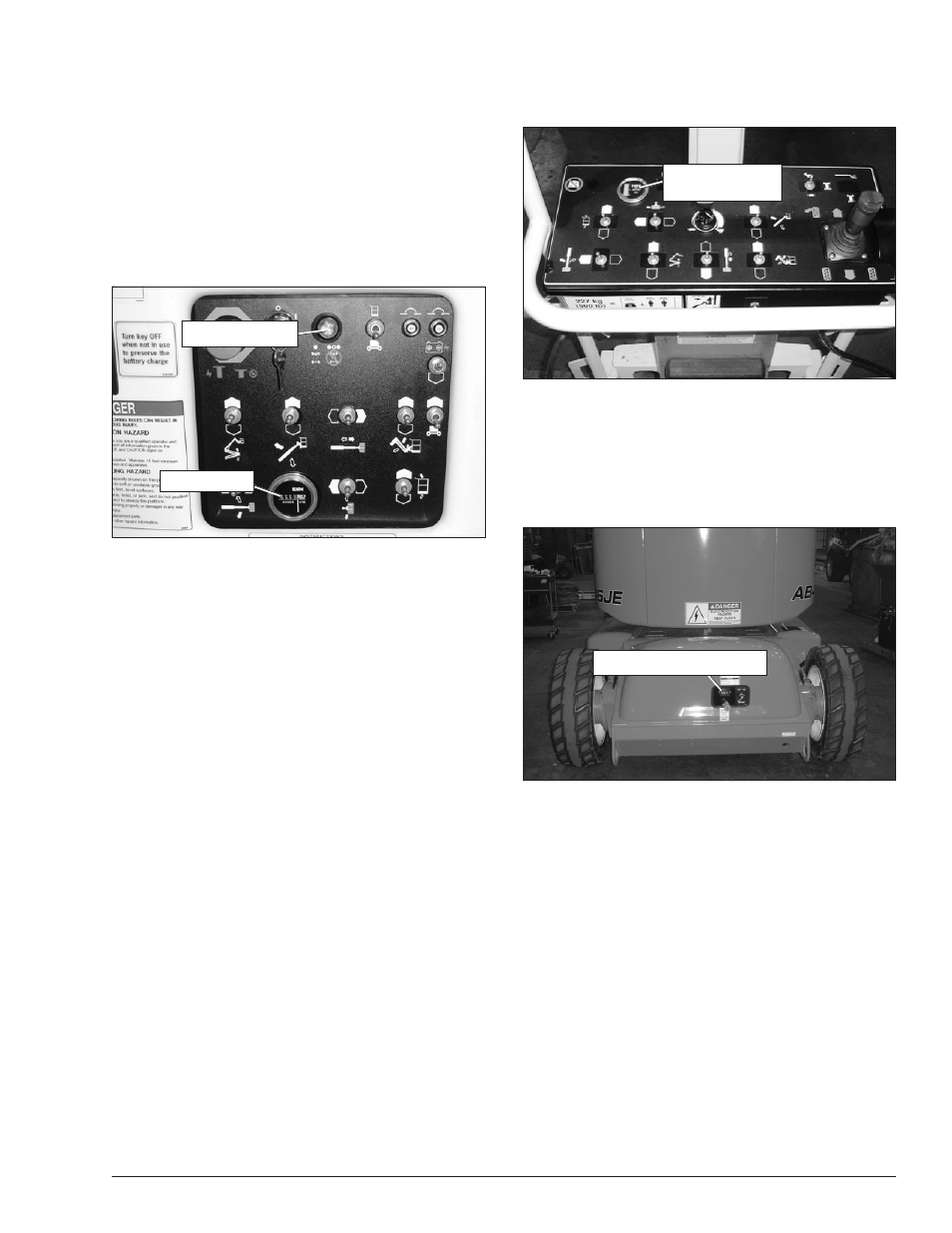

Figure 5.2 – Upper Controls
Battery Charge Indicator
The battery charge indicator is located at the rear of
the chassis (refer to Figure 5.3). When the batteries are
charging, the battery charge indicator displays the charg-
ing state of the charger.
Figure 5.3 – Battery Disconnect Panel
Hydraulic Fluid Filter Gauge
The fluid filter gauge (refer to Figure 5.4) is located on
the control valve behind the cover on the right side of
the turntable.
Battery Condition
Indicator
Battery Condition
Indicator
Battery Charge Indicator Battery Charge Indicator
Chapter 5 – Gauges and Displays
The aerial platform is equipped with several gauges to
monitor the condition of the machine before and during
operation.
Hour Meter
The hour meter is located on the lower control panel
(refer to Figure 5.1). It measures the accumulated aerial
platform operating time.
Figure 5.1 – Lower Controls
Drive Fault Light
The drive fault light is located on the lower control panel
(refer to Figure 5.1). It indicates the condition on the drive
control when the foot switch is pressed.
If the drive fault light is lit, the machine is in normal
operation mode and can be driven from the upper
controls.
If the drive fault light is not lit or fl ashing, there is no
power to the drive control or there is a machine error.
Remove the aerial platform from service until qualifi ed
maintenance personnel can make repairs.
Battery Condition Indicator
There is a battery condition indicator at the upper controls
(refer to Figure 5.2). The battery condition indicator dis-
plays the level of available battery power to operate the
aerial platform when the foot switch is pressed.
•
•
Drive Fault Light
Hour Meter
Drive Fault Light
Hour Meter
