11.4.3 Connection of attachment hose reels with pipework
Before you connect the pipework, you must check that suitable connection nipples (GE-08)
are present inside the connecting block and attachment hose reels. In case of doubt, please
contact your authorised LUKAS dealer or LUKAS directly.

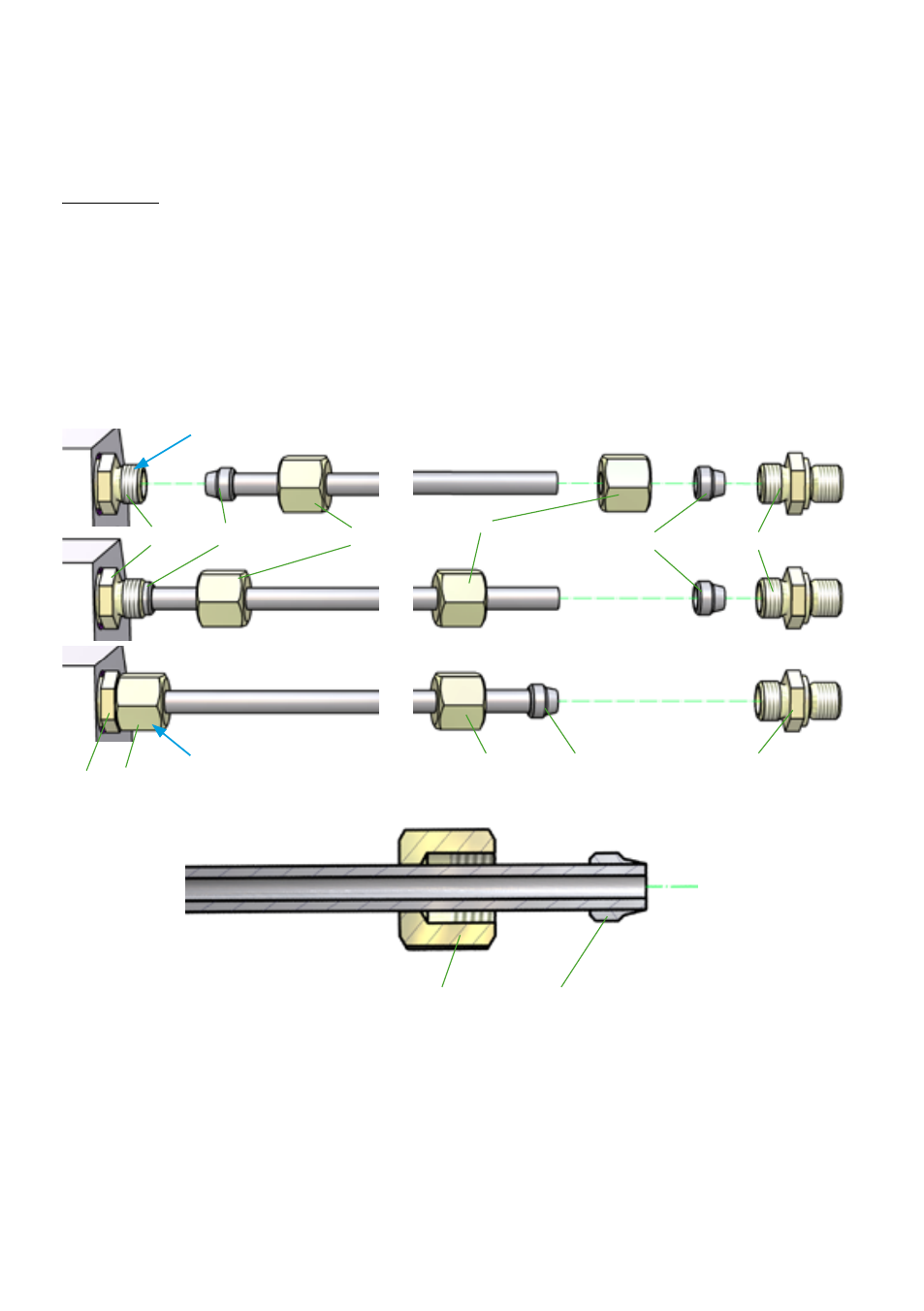

Procedure:
1. Lay out the necessary, preformed pipe.
2. If not present, screw a “G” (GE-08) connection nipple into the connecting/valve block or
attachment reel. (tightening torque M
A
= 40 Nm)
3. Slot union nut “D” onto the pipe with the thread facing towards the end of the pipe.
4. Slot olive “E” fully onto the pipe.
5. Fit the pipe with coupling sleeve into connection nipple “G”.
6. Slide the union nut up to the connection nipple and screw it on.
(tightening torque M
A
= 40 Nm)
7. Proceed in the same way for the other end of the pipe.
M
A
= 40 Nm
M
A
= 40 Nm
D G
D E
G
G
G D
D
D
E
E
E
