Install 90 degree coupler – GrimmSpeed 02-07 WRX Top Mount Intercooler User Manual
Page 9

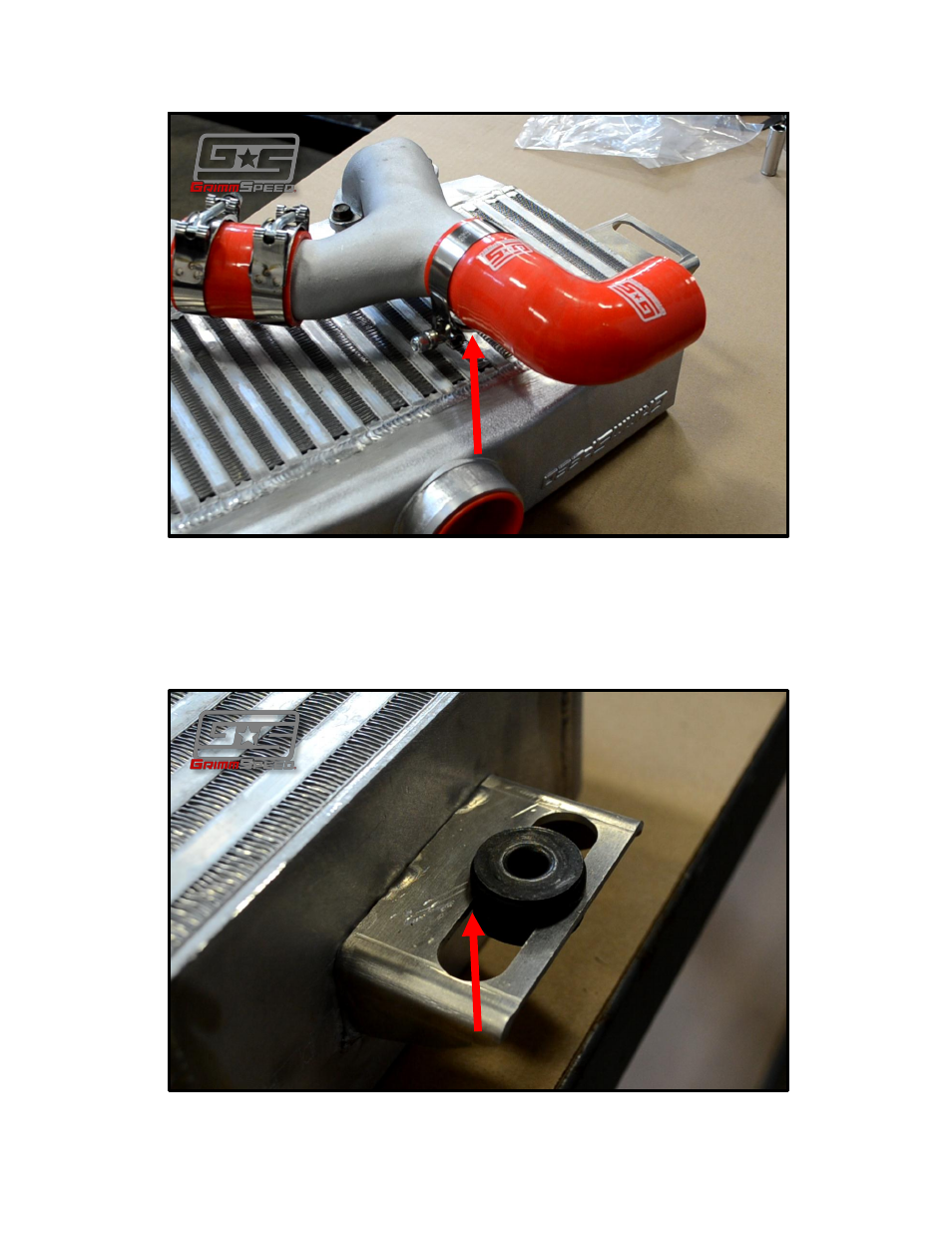

Figure 14: Install 90 degree coupler
12. Pop the rubber bushings and steel cores out of your stock TMIC and fit them
to your shiny new GrimmSpeed TMIC. This is a very important step! You will
need to remove the steel core to be able to remove the rubber bushing and
transfer it to our TMIC. Reinstall steel core after you swap the bushing.
Install 90 degree coupler
Install 90 degree coupler
