GrimmSpeed Install Guide Series
Installing the GrimmSpeed TMIC Splitter
Updated 8/30/13
Introduction: This guide will illustrate the installation of the GrimmSpeed Top
Mount Intercooler Splitter on your 02-07 Subaru. This install is pretty
straightforward, so take your time and enjoy it!
Tools: The tools listed below are suggested for this task (figure 1). Optional tools
are noted.
-
8mm socket
-
Ratchet
-
Philips
-
Pliers (optional, if you need to remove a tree clip)

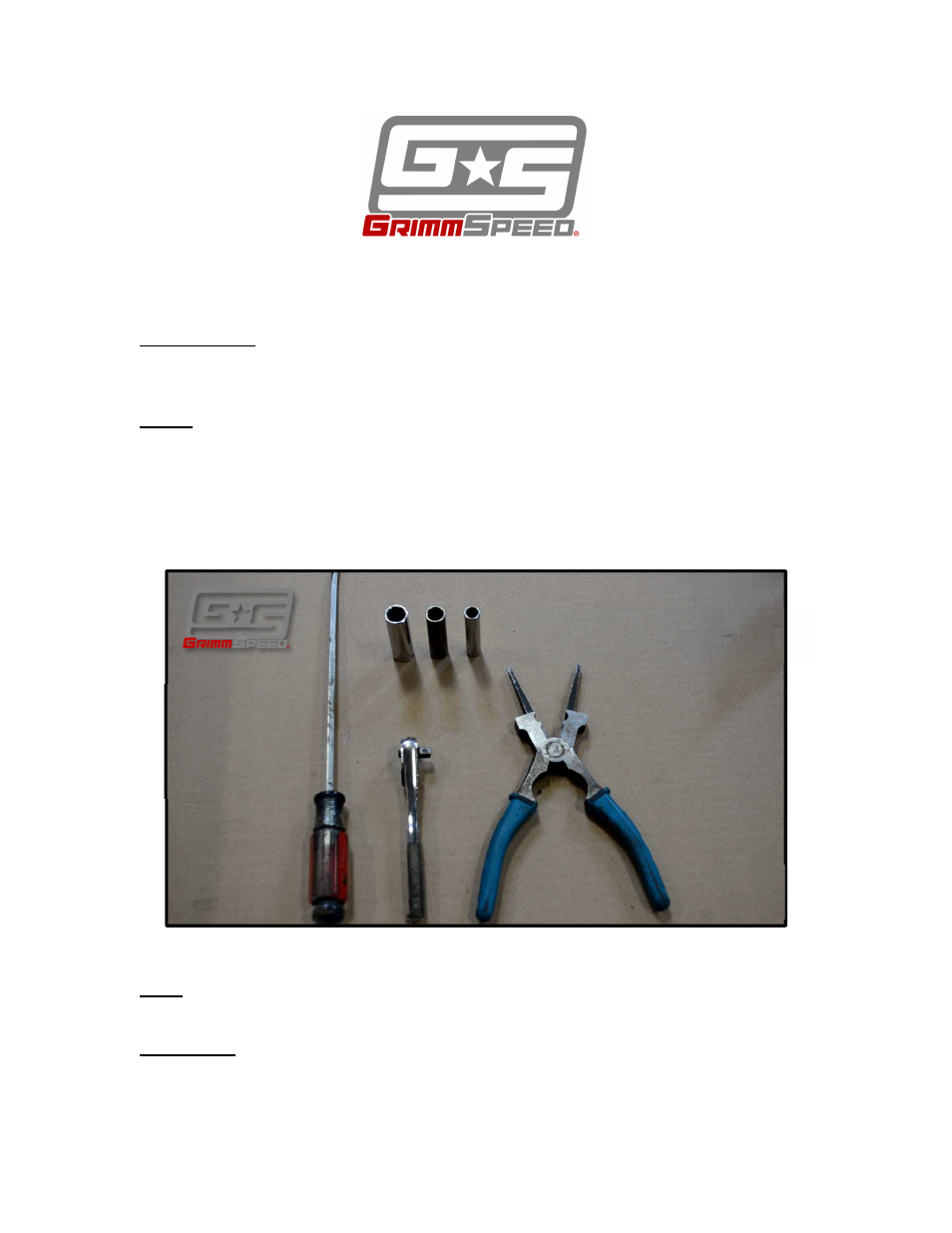

Figure 1: Tools
Tips: Avoid dumping the bag of tree clips onto your work bench. They have a
tendency to run away!
Procedure:
1.
Begin by collecting your tools and popping your hood.
Pliers
8mm Socket
Philips
Screwdriver
