Turbo coupler throttle body bpv mounting points – GrimmSpeed 02-07 WRX Top Mount Intercooler User Manual
Page 2
Procedure:
1. Begin by collecting your tools and popping your hood.
2. The first step will be to remove your stock/existing top mount intercooler.
There are a few primary points of connection and we’ll step through those
before pulling the TMIC. Use the figure below to identify each of these points
and familiarize yourself with the procedure.

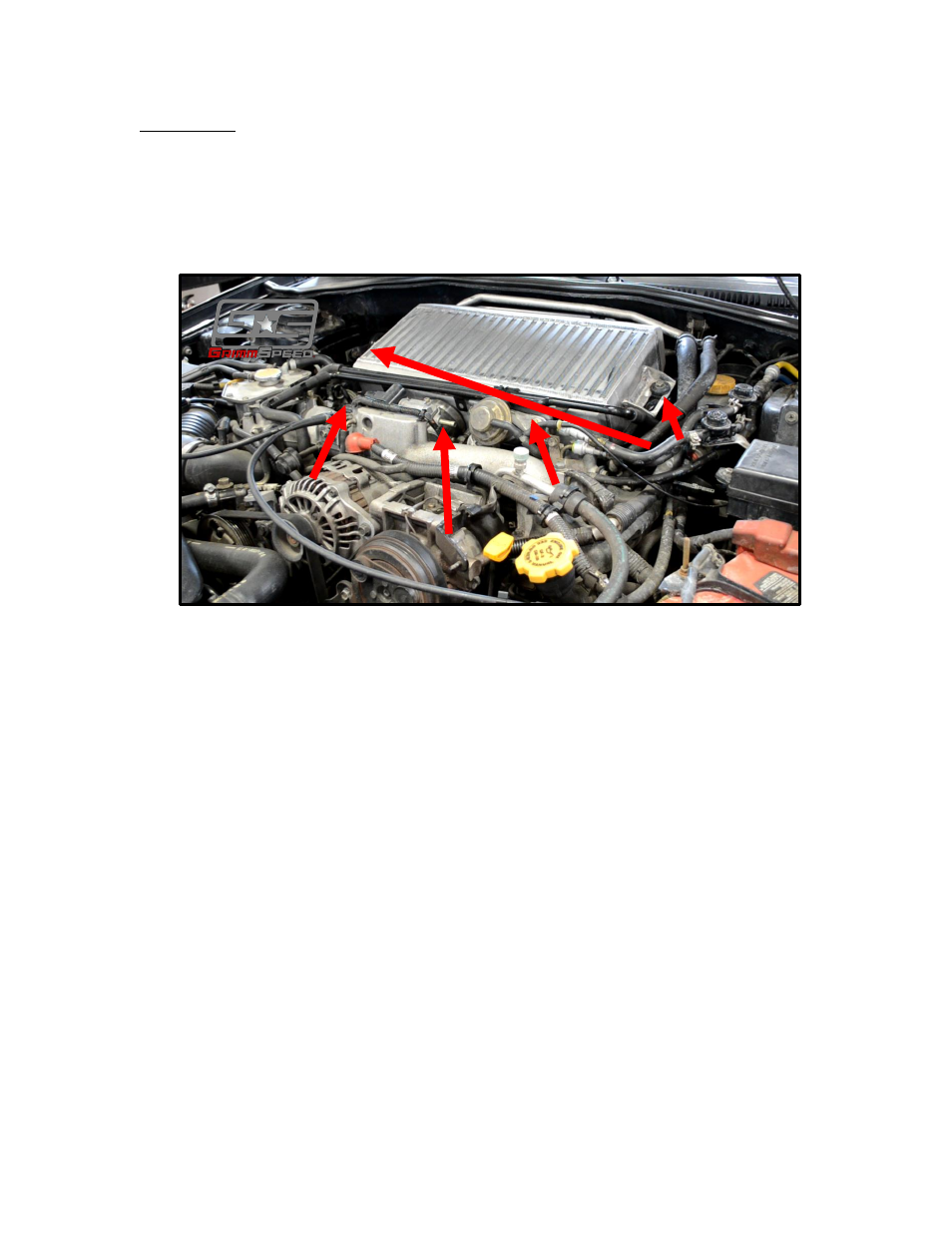

Figure 2: TMIC Mounting Points
Turbo Coupler
Throttle Body
BPV
Mounting Points
