GrimmSpeed 02-07 WRX Top Mount Intercooler User Manual
Page 13

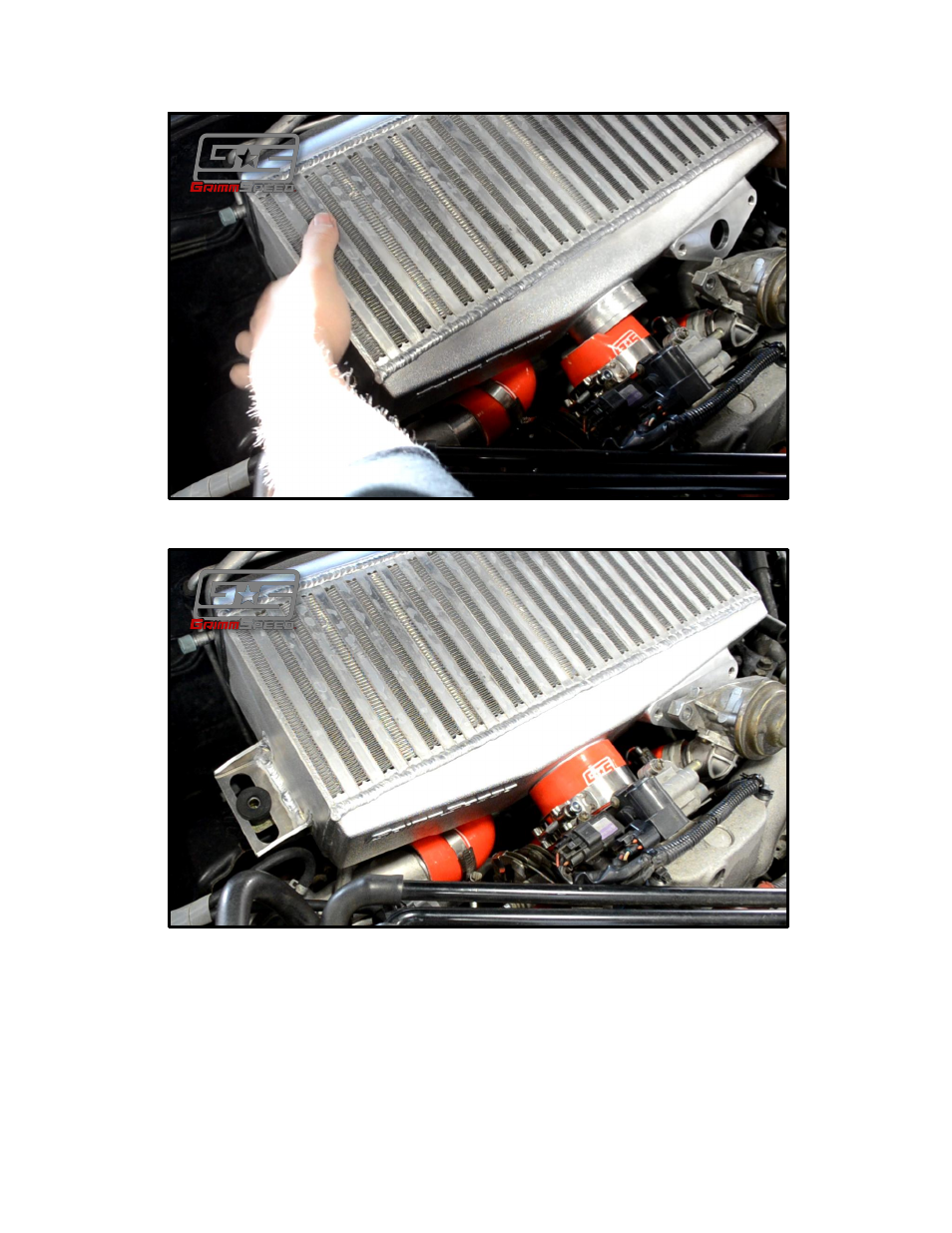

Figure 20: Position TMIC
Figure 21: Position TMIC
16. If, like me, you opted to leave one of the throttle body clamps off, you’ll want
to remove the nut, pull it apart and sneak it around. Now is the appropriate
time to snug up your clamps on both the throttle body and the turbo,
checking again to make sure that your coupler makes a nice seal all the way
around.
