Install 12mm bolt – GrimmSpeed 02-07 WRX Top Mount Intercooler User Manual
Page 15
Figure 23: Reinstall BPV
18. Finally, use the two longer 12mm bolts to bolt the entire assembly back into
place on the stock brackets. Get both bolts in loosely before tightening
anything down. The driver’s side bracket has some adjustment is you loosen
it from the intake manifold. Some cars have had these brackets adjusted over
the years, so you may need to do the same.

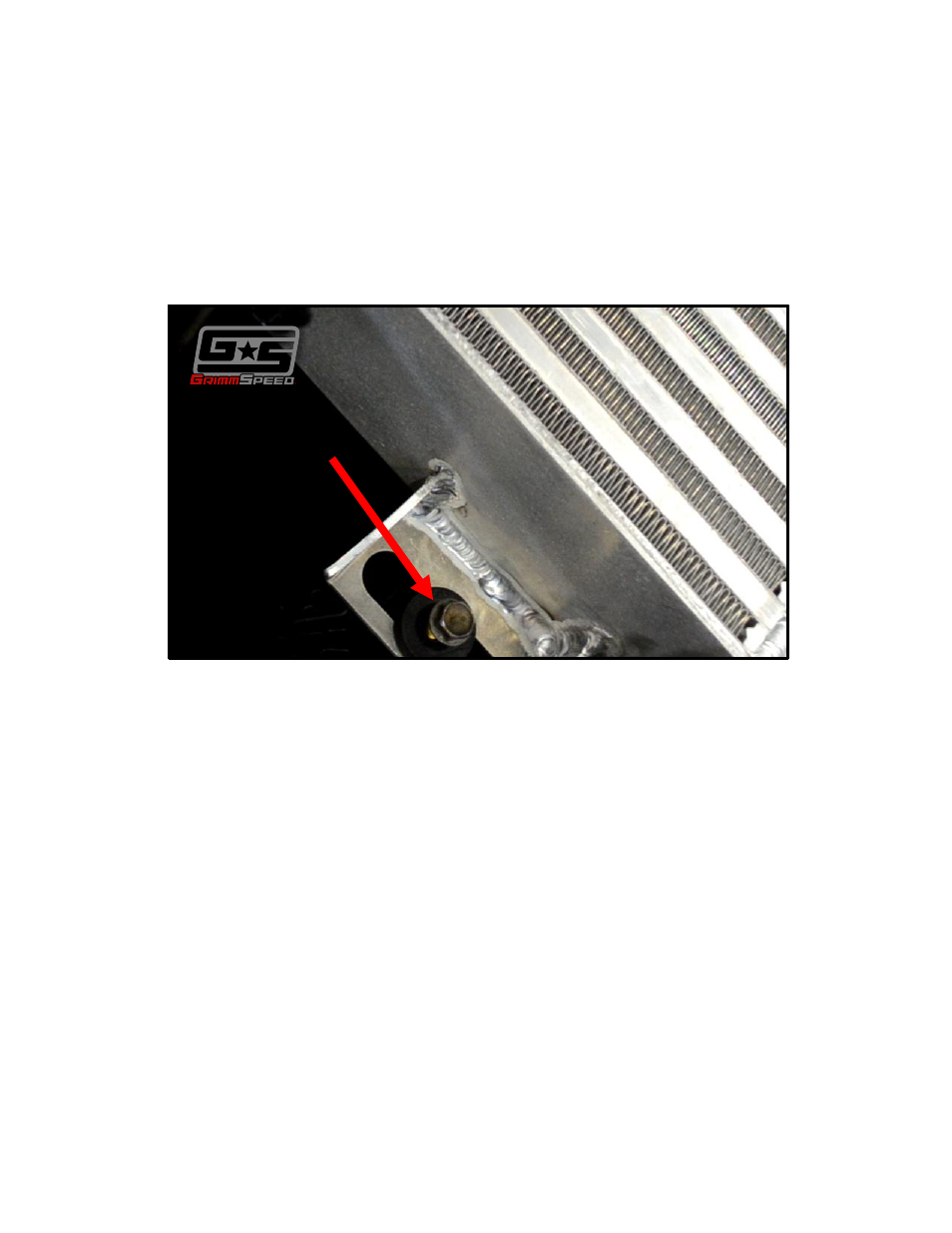

Figure 24: Bolt intercooler back down
Install 12mm Bolt
