Operation
41 Model 6042 Origin 2/04

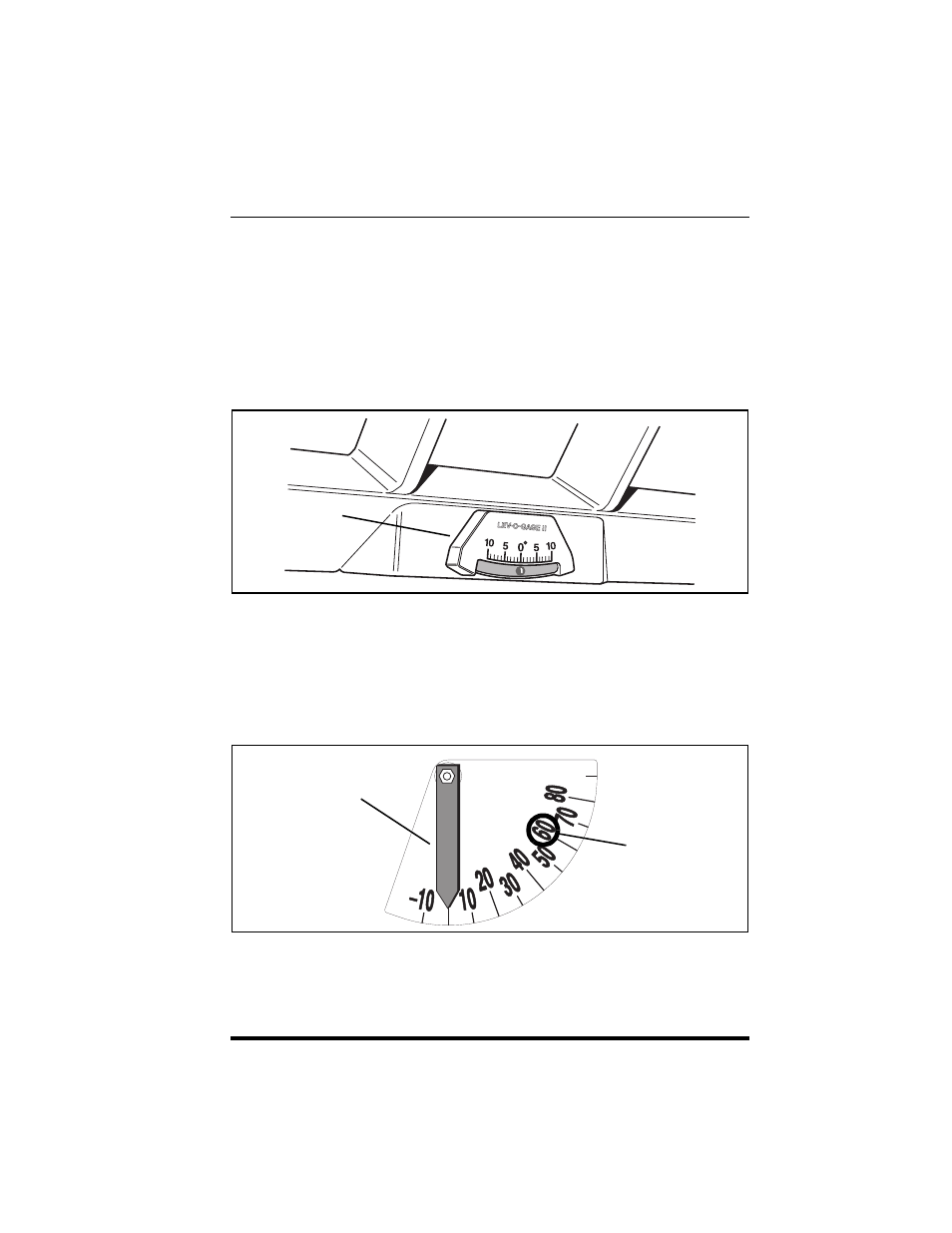

Frame Level Indicator
The indicator (2) is mounted on the top inside of the Operator's Protective
Structure (cab). This is a bubble type indicator which allows the operator to
tell if the vehicle has been positioned in a level condition. Always frame
sway the vehicle either right or left until the indicator reads zero degrees
(0°). If zero cannot be achieved, then reposition the vehicle until it is level
before placing the load.
NOTE: Maximum frame sway is 10° in either direction.
Boom Angle Indicator
The boom angle indicator is a plumb arrow (3) with angular graduations (4)
from minus 10° to plus 80°. It is located on the left side of the boom and is
visible from the operator’s position. Use this indicator to determine the
boom angle when reading the capacity chart (see “Using The Capacity
Chart”).
