Page 96

Section 5 - Attachments
5-24
31200352
Swing Carriage
Use Swing Carriage Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-8.

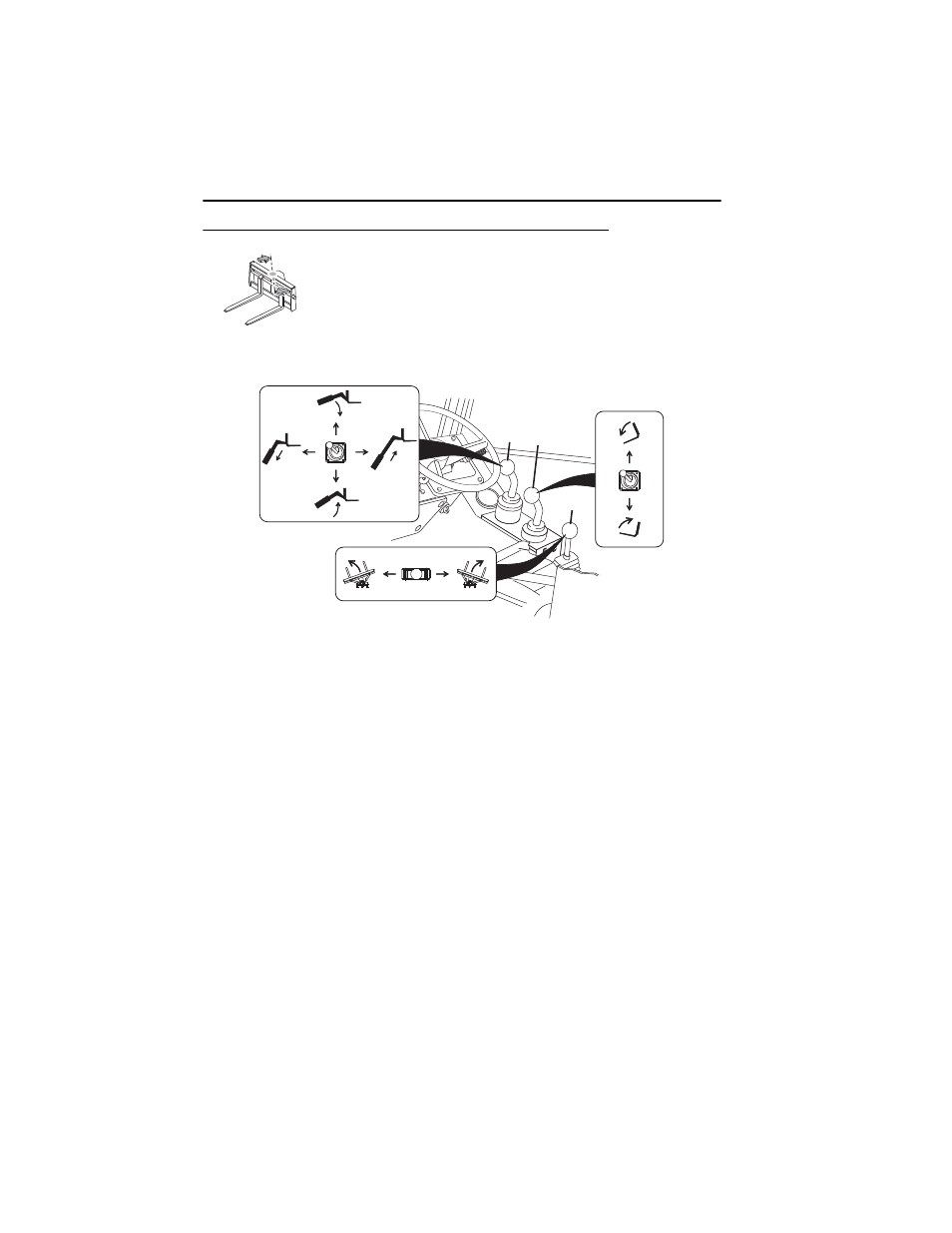

The boom joystick (1) controls lift/lower and extend/retract movement of the boom.
The attachment tilt joystick (2) controls fork tilt.
• Move joystick back to tilt up.
• Move joystick forward to tilt down.
To Swing:
The auxiliary hydraulic joystick (3) controls the swing function.
• Move joystick left to swing left.
• Move joystick right to swing right.
Installation Procedure:
• Refer to “Attachment Installation” on page 5-16.
OU2150
OH4062
2
1
3
