Section 3 - Controls and Indicators
3-11
31200352

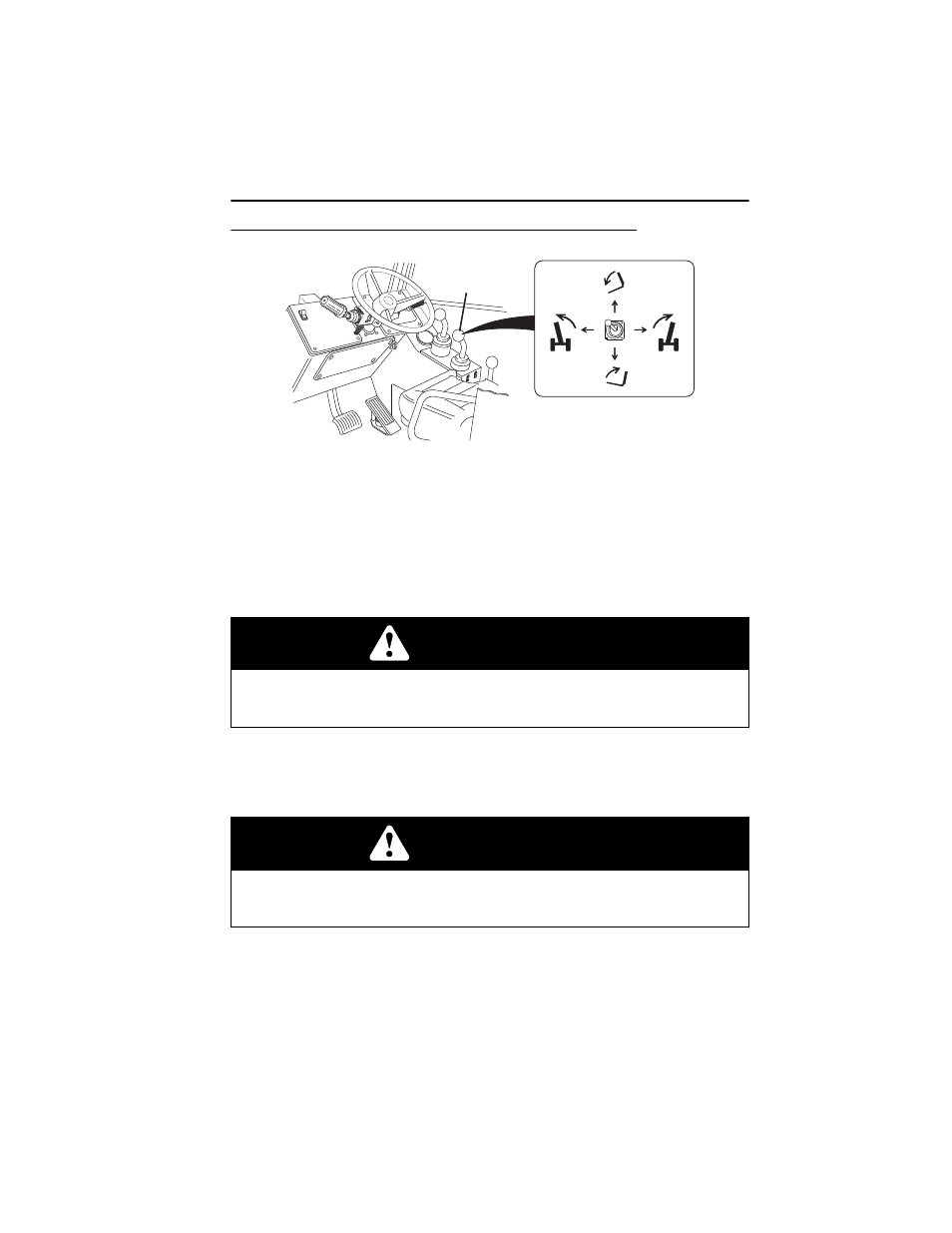

Frame Level and Attachment Tilt Joystick
The middle joystick (2) controls the left to right frame level and attachment tilt
functions.
Frame Level
• Move the joystick left to rotate frame left, move the joystick right to rotate frame
right.
• A level indicator is located above the front cab window to permit operator to
determine whether the telehandler frame is level.
Attachment Tilt
• Move the joystick forward to tilt down, move the joystick back to tilt up.
WARNING
TIP OVER HAZARD. Always move boom as low as possible while allowing for
best visibility of right hand mirror before leveling frame. Attempting to level
machine with boom raised could cause it to tip over.
WARNING
TIP OVER/CRUSH HAZARD. Rapid, jerky operation of controls will cause rapid,
jerky movement of the load. Such movements could cause the load to shift or fall
or could cause the machine to tip over.
OH3861
2
