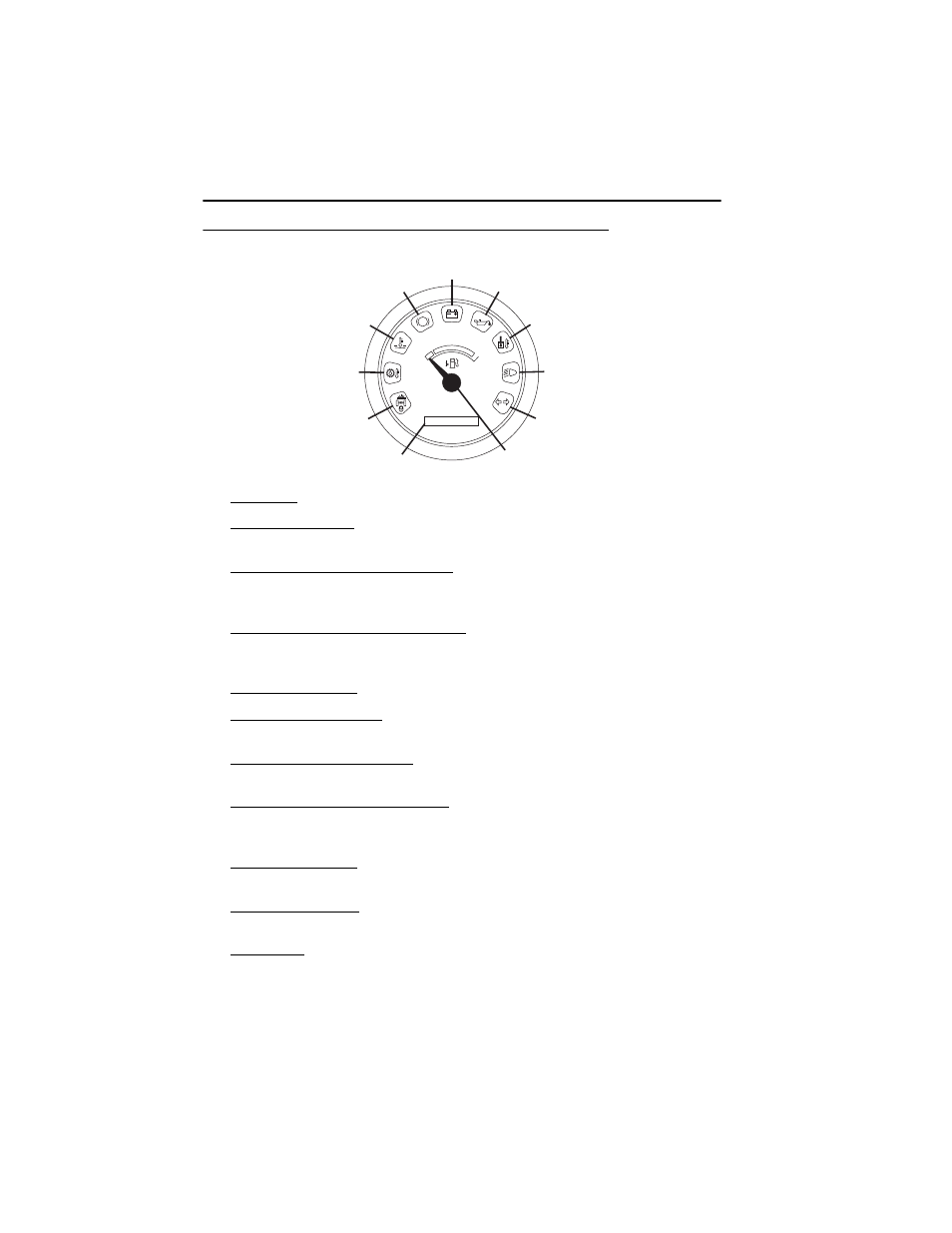

Instrument Cluster
1. Hourmeter: Records and indicates engine operating hours.
2. Stabil-Trak Indicator (6042, 8042, 10042 & 10054): Illuminates when Stabil-Trak
system has been activated. See page 3-16.
3. Transmission Temperature Indicator: Illuminates when transmission oil
temperature is too high. Stop and idle engine with transmission in neutral,
allowing time for cooling. If light remains on, shut-down engine.
4. Engine Coolant Temperature Indicator: Illuminates when engine coolant
temperature is too high. Stop and idle engine, allowing time to cool and
shut-down.
5. Park Brake Indicator: Illuminates when park brake is applied. See page 3-7.
6. Battery Charge Indicator: Illuminates when battery is at low charge or charging
system is not functioning properly.
7. Engine Oil Pressure Indicator: Illuminates when engine oil pressure is too low.
Shut-down engine immediately.
8. Hydraulic Oil Temperature Indicator: Illuminates when hydraulic oil temperature
is too high. Stop and idle engine, allowing time for cooling. If light remains on,
shut-down engine.
9. High Beam Indicator (if equipped): Illuminates while high beam lights are
activated.
10. Turn Signal Indicator (if equipped): Illuminates and flashes while turn signals or
hazard lights are activated.
11. Fuel Gauge: Indicates amount of fuel in fuel tank.
