Page 94

Section 5 - Attachments
5-22
31200352
Side Tilt Carriage
Use Side Tilt Carriage Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-8.

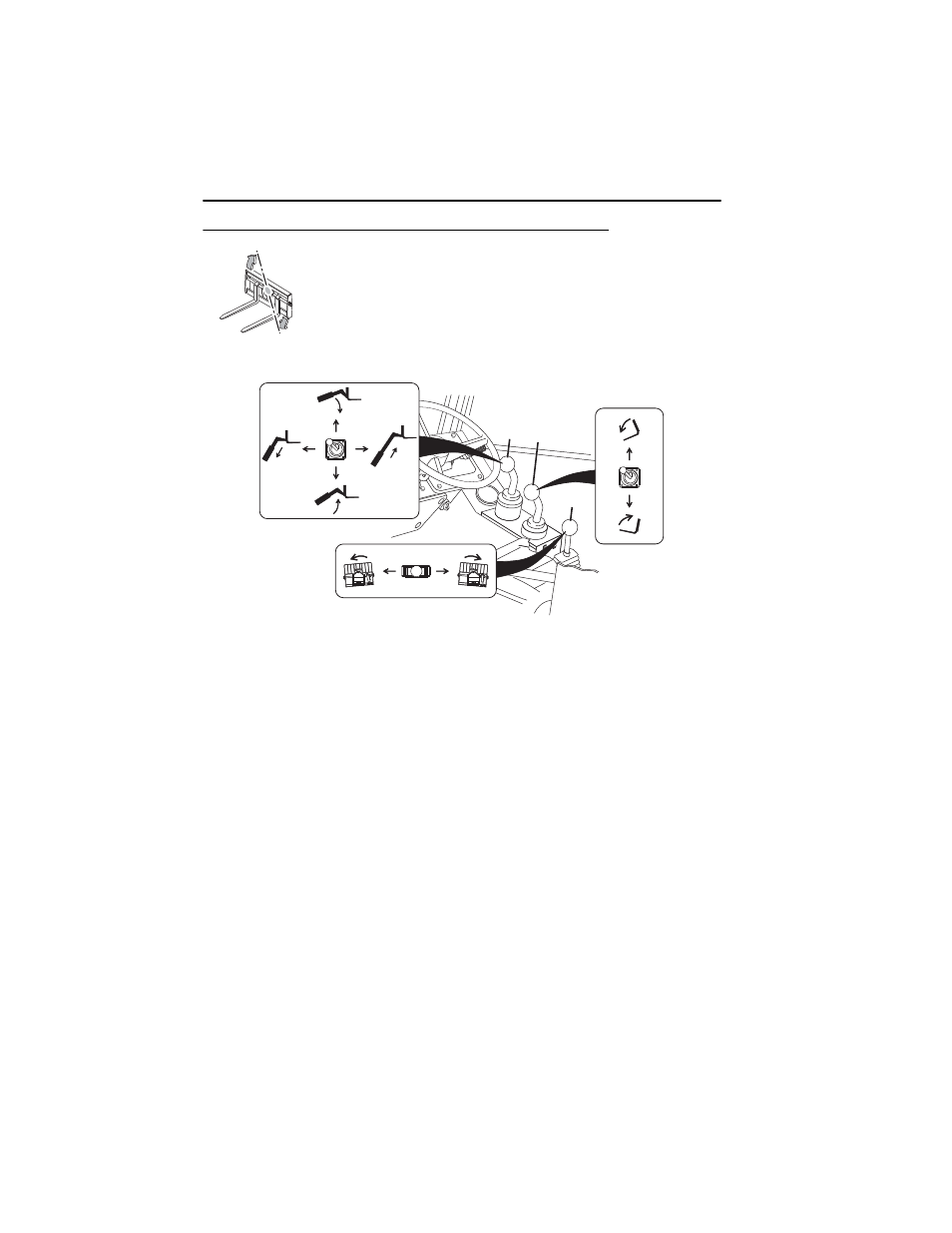

The boom joystick (1) controls lift/lower and extend/retract movement of the boom.
The attachment tilt joystick (2) controls fork tilt.
• Move joystick back to tilt up.
• Move joystick forward to tilt down.
To Side Tilt:
The auxiliary hydraulic joystick (3) controls the carriage side tilt.
• Move joystick left to (side) tilt left.
• Move joystick right to (side) tilt right.
Installation Procedure:
• Refer to “Attachment Installation” on page 5-16.
OAL1550
OH4112
2
1
3
