Carriage w/Forks
Use Carriage Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-8.

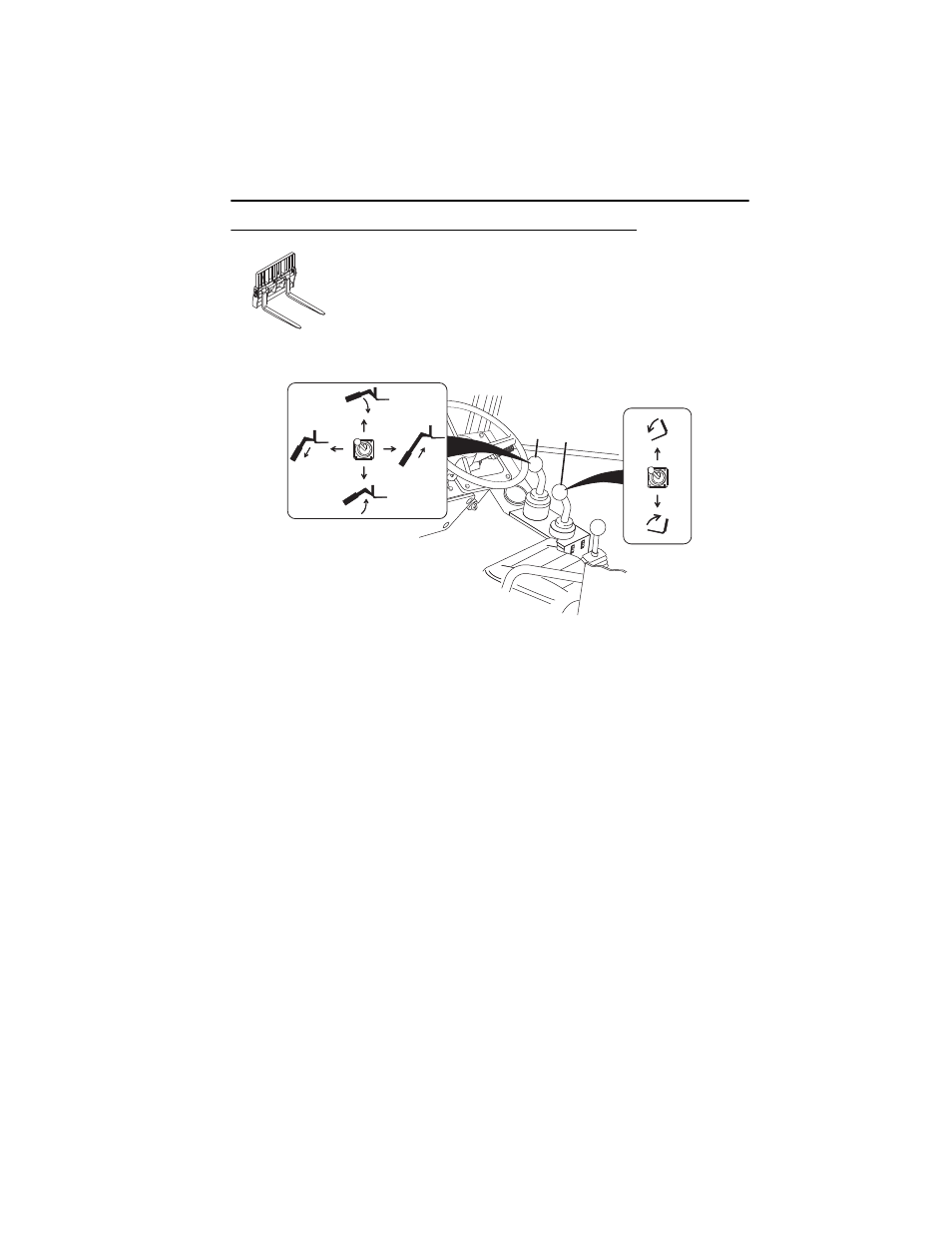

The boom joystick (1) controls lift/lower and extend/retract movement of the boom.
The attachment tilt joystick (2) controls fork tilt.
• Move joystick back to tilt up.
• Move joystick forward to tilt down.
Installation Procedure:
Refer to “Attachment Installation” on page 5-16.
Equipment Damage Precautions:
• Do not use forks as a lever to pry material. Excessive prying forces could
damage forks or machine structure.
• Do not attempt to lift loads that are attached or connected to another object.
OY0690
OH4011
2
1
