Concrete Bucket (Before S/N 0160037788)
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-8.
Suspend loads in accordance with requirements set forth in Section
1 - General Safety Practices.

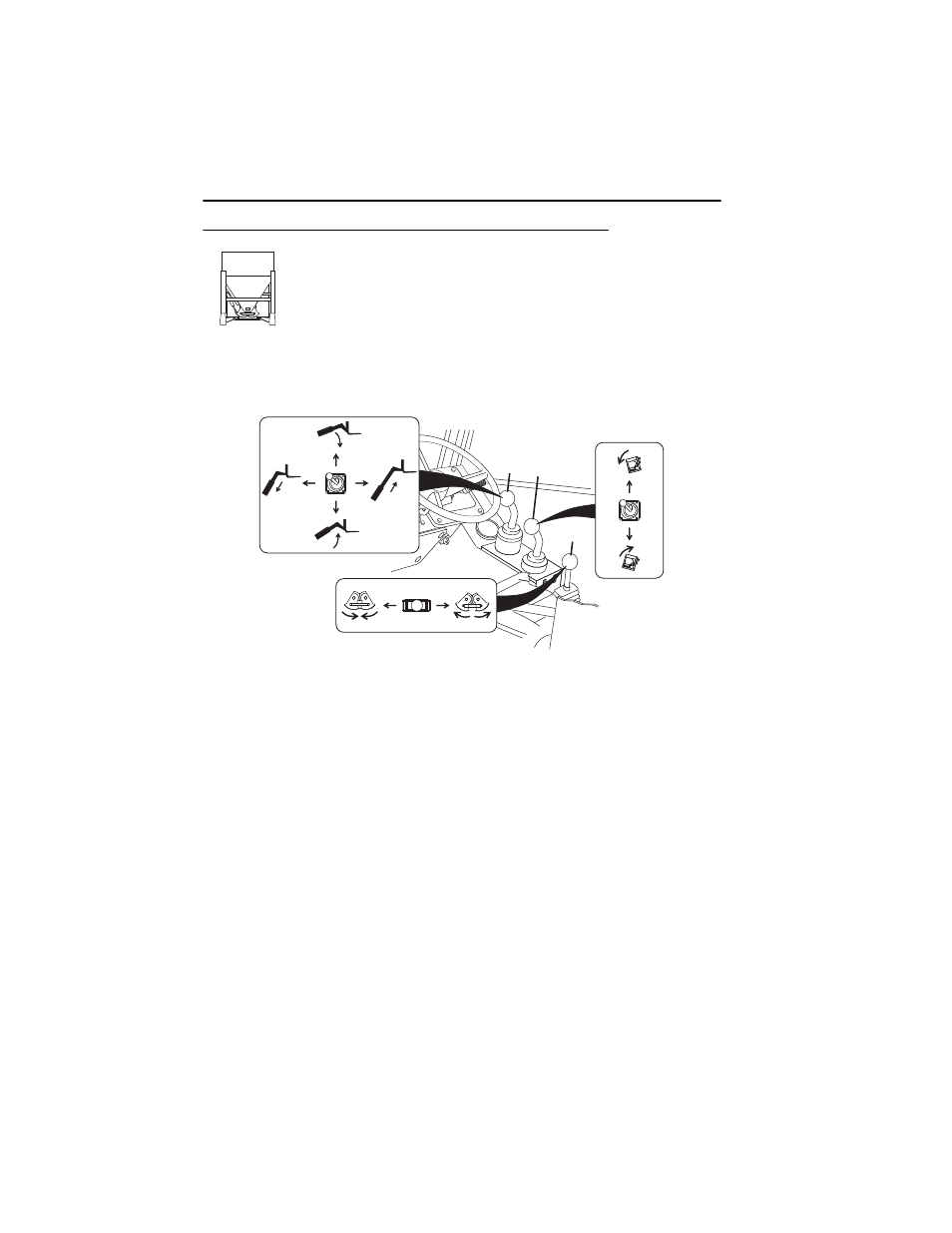

The boom joystick (1) controls lift/lower and extend/retract movement of the boom.
The attachment tilt joystick (2) controls concrete bucket tilt.
• Move joystick back to tilt up.
• Move joystick forward to tilt down.
Bucket Gate Control:
The auxiliary hydraulic joystick (3) controls the bucket gate.
• Move joystick right to open gate.
• Move joystick left to close gate.
Installation Procedure:
• Refer to “Attachment Installation” on page 5-16.
OH4530
OH4042
2
1
3
