OR-Fab 87046 2012-2015 Jeep JK Vacuum Pump Relocation Kit - Manual (Page 3)

2012 Vacuum Pump Relocation Kit 3 Kit #87046
f. Remove approximately 3 Ft. of factory large
vacuum hose from split connector in engine
compartment near PCM module.
g. Reroute & reconnect vacuum connector clip and
one way valve onto vacuum tube engine side.
** NOTE: Discard small vacuum pump exhaust hose.
Pumps new location will not requre exhaust hose.
**
Install Relocation Bracket
1. Install kit pump relocation bracket
a. Remove both upper fender bolts using a 10mm
wrench, located between the PCM & ABS units.
b. Using two kit bolts (M6-1.0x30) and two OEM
6mm nuts, mount vacuum pump to kit
bracket.
c. Using both upper fender bolts, mount kit
bracket and pump to upper fender.
d. Reconnect vacuum connector clip and harness
plug to vacuum pump..

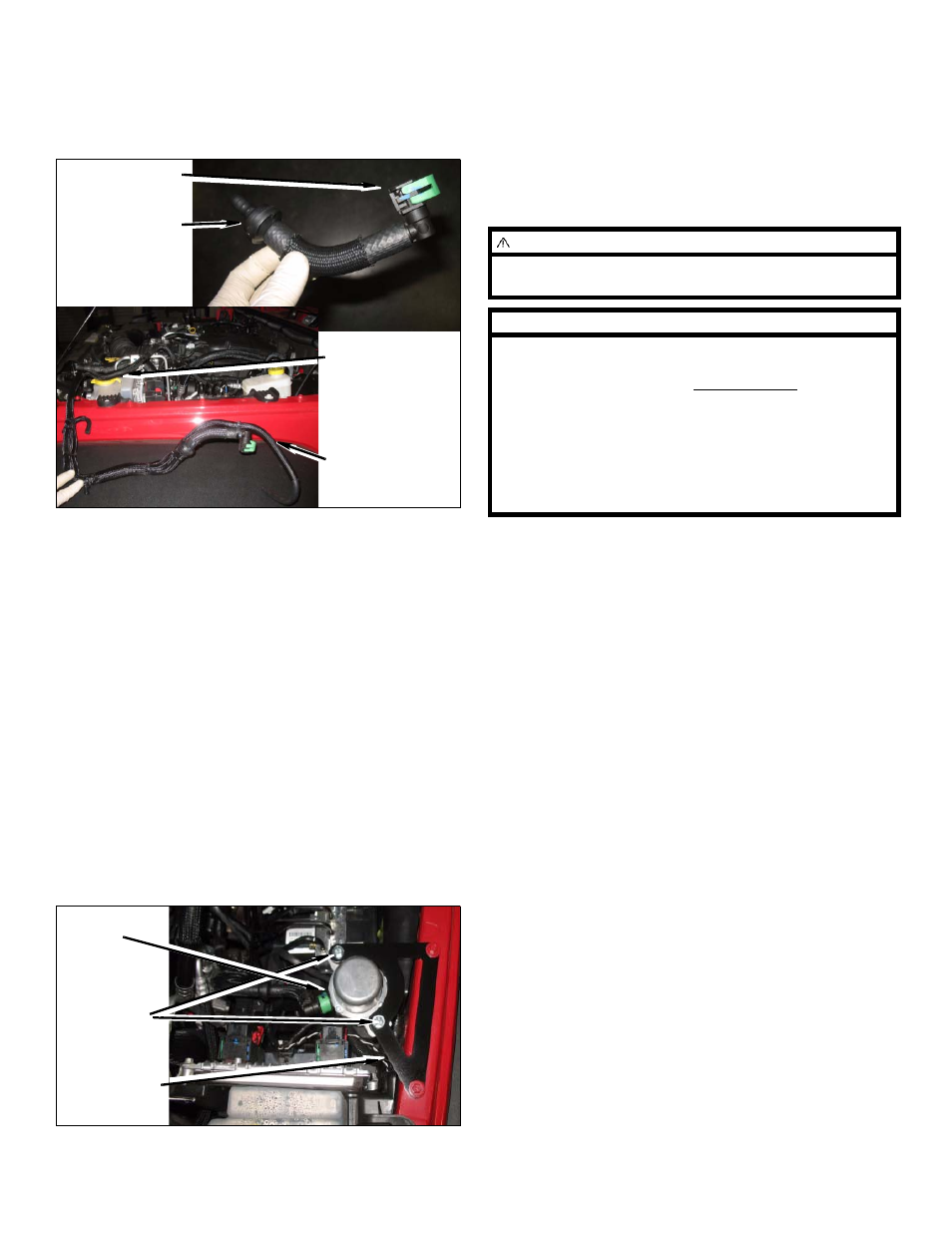

Vacuum Hose
Connector Clip
Remove Vacuum
Hose at Split
Vacuum Hose
One-way Valve
Discard Small
Vacuum Pump
Exhaust Hose
Kit
Bracket
Kit
6mm
Hardware
Vacuum
Pump
After Completing Installation
Miscellaneous
1. Check all fasteners to ensure they are tight.
2. Ensure all wires, hoses, cables, etc. are properly
connected and there is ample slack.
Kit Parts List
Qty. Description
1
Bracket, Pump
1 (Hardware bag)
2
Bolt (M6-1.0 x 30)
4
Connector (22 Gage)
1
Wire (Black)
1
Wire (White)
WARNING
This product is for Off-Road use only. Always make
sure all occupants are wearing seat belts at all times.
NOTE
All warranty information, instruction sheets, and other
documents regarding the installation of this product
must be retained by the vehicle owner. Information
contained in the instructions and on the warranty card
will be required for any warranty claims. The vehicle
owner needs to understand the modifications made to
the vehicle and how they affect vehicle handling and
performance. Failure to provide the customer with this
information can result in damage to the vehicle and
severe personal injury.
