2 Non-Lip Fuel Can Carrier - Kit 87013

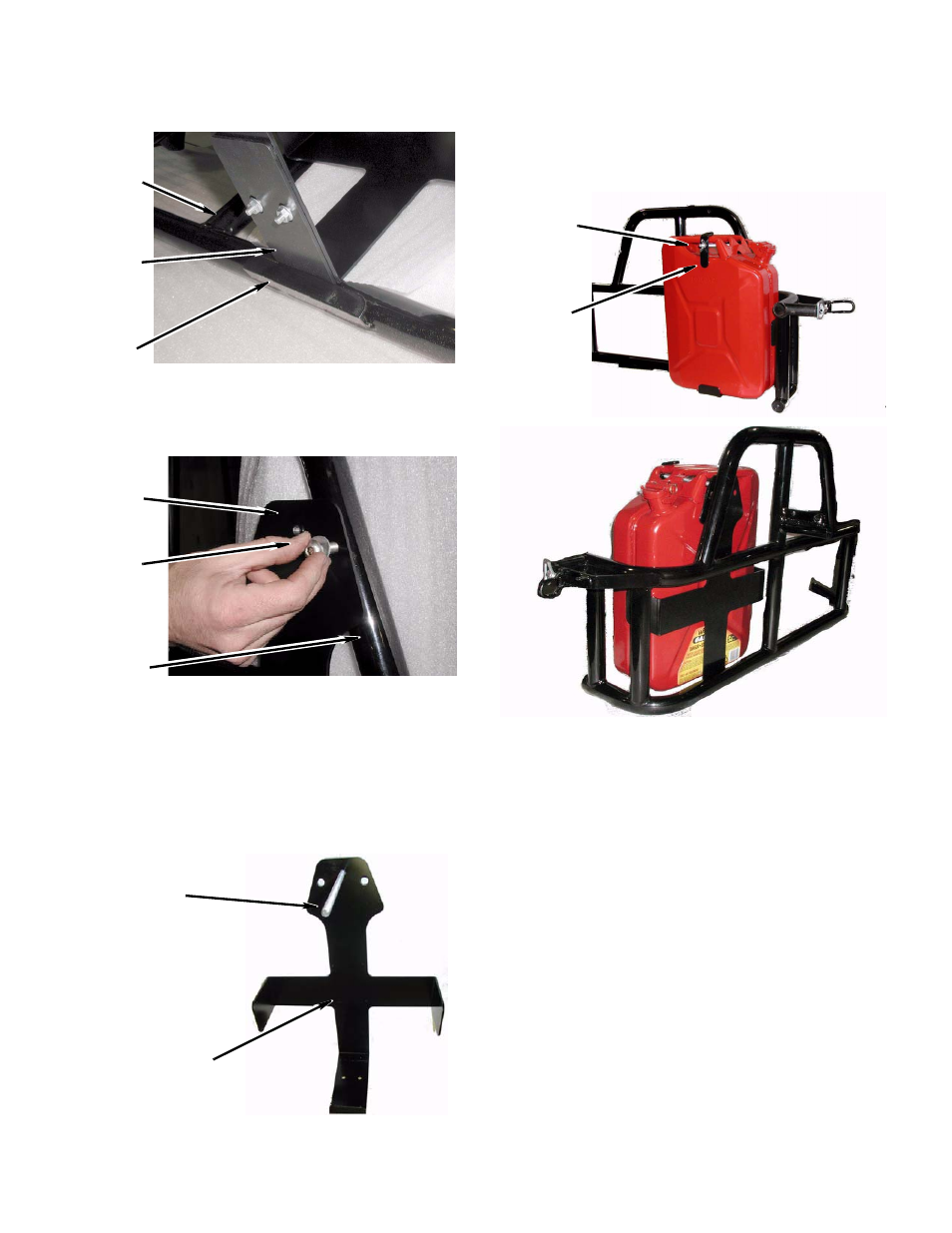

b. Install the fuel can carrier assembly to the ORF
Tire/Fuel Can Carrier. Position lip of lower
mounting bracket into the bracket on the tire/fuel
can carrier.
c. Install the button head bolt in the upper hole of
the fuel can carrier bracket.
d. Tighten the two bolts on the lower mounting
bracket and the button head bolt.
e. Install the 8” piece of all thread, provided with
the ORF Tire/Fuel Can Carrier, in the center
threaded hole of the kit fuel can carrier bracket.
f. Install the fuel can on the carrier by inserting the
bottom of the fuel can on the carrier and slide
the all thread through the fuel can handle.
g. Slide the “L” shaped fuel can bracket onto the all
thread. Using the wing nut, tighten the fuel can
to the carrier.
C. Kit Parts List
Quantity Description
1 Bolt, 3/8-16 x 1.25 Button Head (SS)
2 Bolt, 1/4-20 x 1” Carriage
1 Bracket, Fuel Can Carrier (non-lip can)
1 Bracket, Fuel Can Clamp
2 Nut, 1/4-20 Flange Nut
1 Washer, 3/8 USS Zinc
Kit Lower
Mounting
Bracket
Bracket
ORF Tire/
Fuel Can
Carrier.
Fuel Can
Carrier
Bracket
Button
Head Bolt
ORF Tire/
Fuel Can
Carrier.
Kit Fuel Can Carrier
Bracket
All Thread - 8”
“L” Shaped
Fuel Can
bracket
Wing
Nut
Rev. 02, Copyright 07/06
