Toyota Transmission Skid & Cat Theft Deterrent 2 Kit #87042
Install Skid Plate
1. Install kit skid plate
a. Install front of kit skid plate using two kit bolts
(3/8-16x1”) & washers into rear control arm
cross member existing holes.
b. Using two kit 3/8” washers & bolts to secure kit
skid plate onto transmission cross member.
c. Be sure all of your edges are lined up and clear
any brake lines or fuel lines. Tighten all kit
hardware at this time.
After Completing Installation
Miscellaneous
1. Check all fasteners to ensure they are tight.

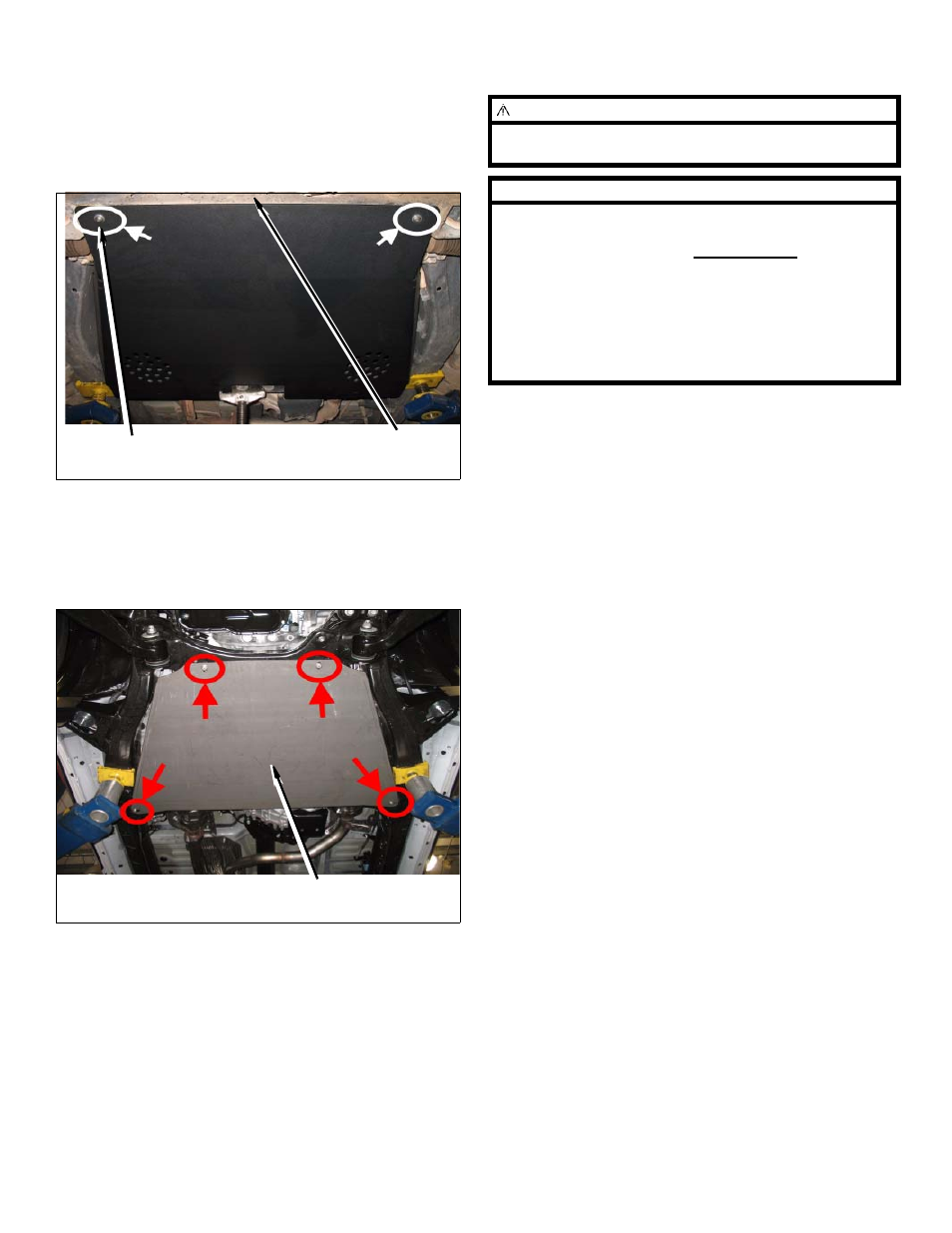

Rear Control Arm
Cross Member
Kit Bolts (3/8”)
Kit Skid Plate Installed
2. Ensure all wires, hoses, cables, etc. are properly
connected and there is ample slack.
Kit Parts List
Qty. Description
1 Plate, Skid
1 (Hardware bag)
4 Bolt (3/8” Button Head)
4 Washer (3/8” USS)
4 Nut Plate (3/8”)
WARNING
This product is for Off-Road use only. Always make
sure all occupants are wearing seat belts at all times.
NOTE
All warranty information, instruction sheets, and other
documents regarding the installation of this product
must be retained by the vehicle owner. Information
contained in the instructions and on the warranty card
will be required for any warranty claims. The vehicle
owner needs to understand the modifications made to
the vehicle and how they affect vehicle handling and
performance. Failure to provide the customer with this
information can result in damage to the vehicle and
severe personal injury.
