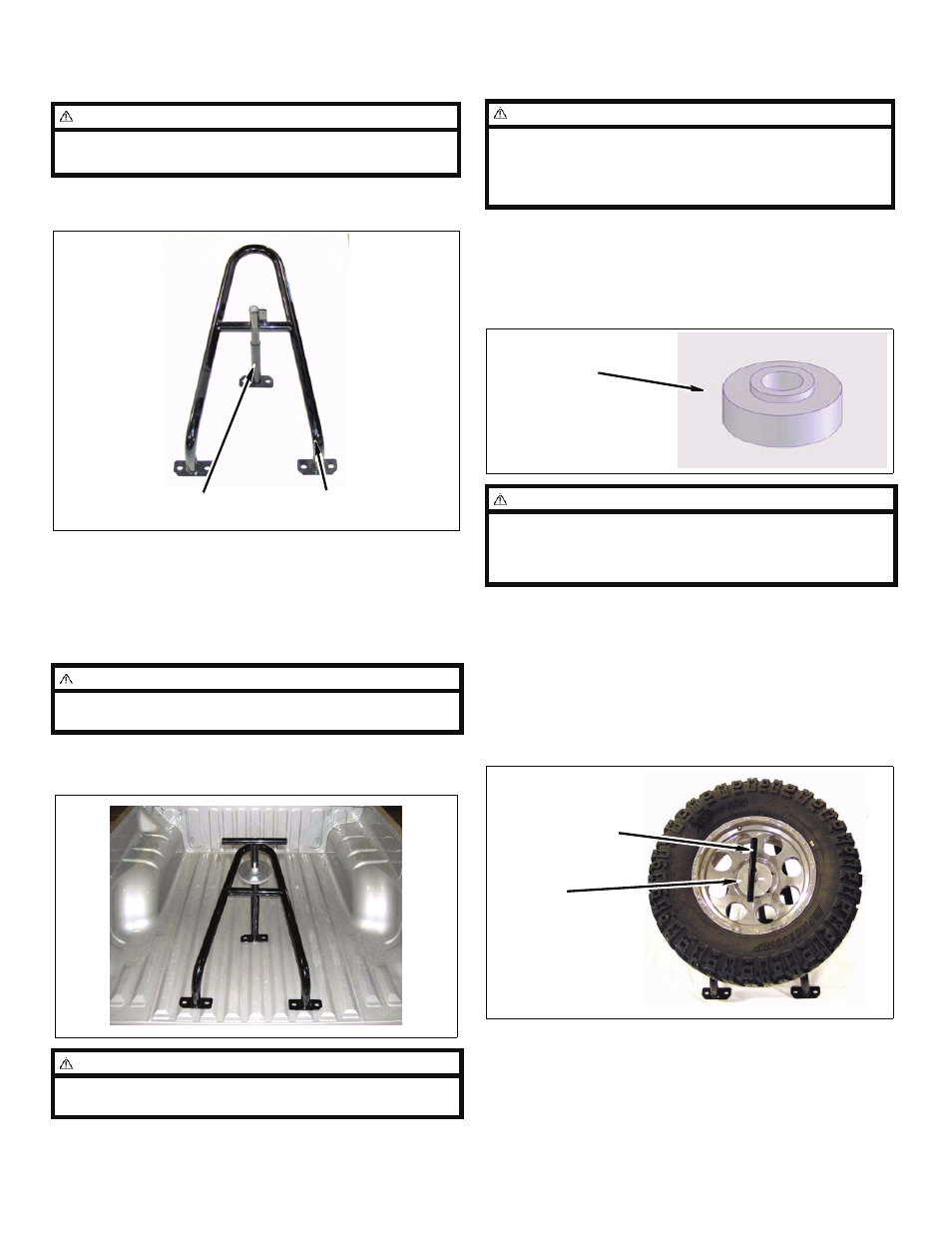

Pre-Runner Tire Carrier - Kit 86300

Install kit

1. Slide kit

front leg onto kit tire carrier.

2. Secure kit

front leg to kit tire carrier with kit bolt

(3/8” x 1”) and kit

washer (3/8” USS).

3. Install kit

lock bar on kit tire carrier with kit bolts (5/

16” x 1”) and kit

nuts (5/16” serrated flange).

4. Set kit

tire carrier in bed to determine installed posi-

tion .

5. Using holes in plates of kit

tire carrier as a template,

mark bed.

6. Drill 3/8” holes in bed where marked.

7. Secure kit

tire carrier to bed with kit bolts (3/8” x

1

1/2

”), kit

washers (3/8” USS), kit bushings

(shock), and kit

nuts (3/8” nylock).

Install spare tire

1. Set spare tire on kit

tire carrier.

2. Set kit

spacer (Urethane Disc) and kit disc (tire

retainer) on wheel.

3. Thread kit “

Thandle into kit tire carrier until it con-

tacts kit

disc (tire retainer). Rotate kit “Thandle at

least an additional two turns.

4. Install lock (not provided in kit) if applicable.

NOTE

The kit

front leg can be positioned as needed to best

fit the application.

NOTE

The hole in the kit

lock bar accommodates a pad lock

that will prevent tire theft.

NOTE

Make sure the tire will not interfere with the tailgate

when it is closed.

Kit

Front Leg

Kit

Tire Carrier

CAUTION

Check under truck bed to make sure nothing will inter-

fere with drilling or installation of mounting hardware.

Check for frame crossmembers, fuel tank, fuel hoses,

electrical wires, etc.

NOTE

The kit bushings are to be used to fill the gap between

the mounting bracket and the valley on the ridge of the

bed. The bushing is not required if the mounting loca-

tion is on top of the ridge in the bed.

Kit

Bushing

Kit “

T Handle

Kit

Disc

(Tire Retainer)
