KNoWINg yoUR RoUTeR

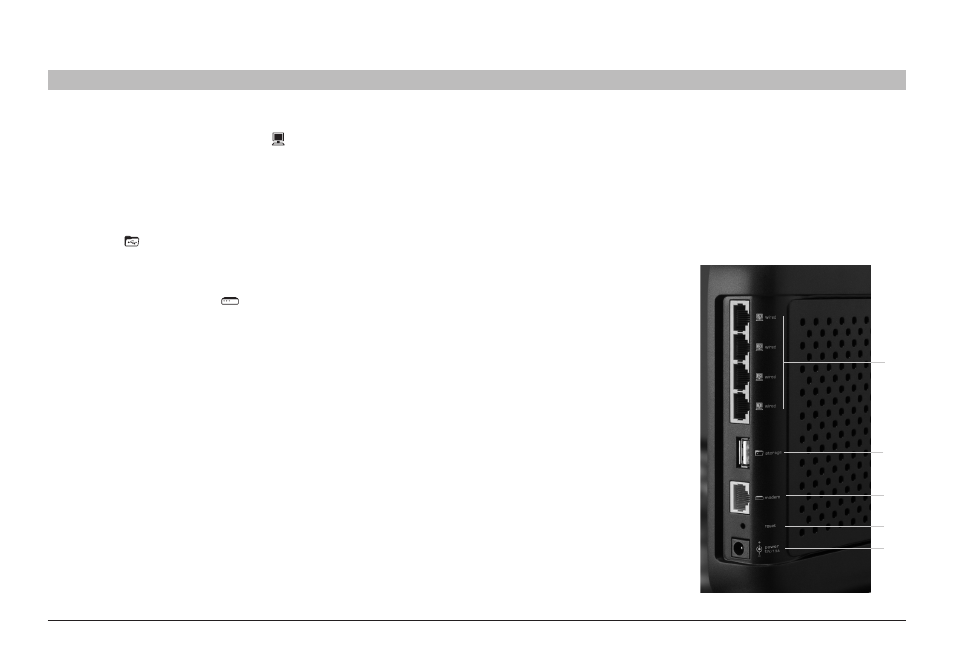

K� Connections to Wired Computers
Connect your wired (non-wireless) computers to these ports . These
ports are RJ45, 10/100/1000 auto-negotiation, auto-uplinking ports for
standard UTP category 5 or 6 Ethernet cable . The ports are labeled 1
through 4 .
l� Usb Port
Plug in your USB storage device here .
M� Connection to Modem
This port is for connection to your cable or DSL modem . Use the cable
that was provided with the modem to connect the modem to this port .
Use of a cable other than the one supplied with the cable modem may
not work properly .
N� Reset button
The “Reset” button is used in rare cases when the Router may function
improperly . Resetting the Router will restore the Router’s normal
operation while maintaining the programmed settings . You can also
restore the factory default settings by using the “Reset” button . Use the
restore option in instances where you may have forgotten your custom
password .
i� Resetting the Router
Push and release the “Reset” button . The lights on the Router will
momentarily flash . The “Power/Ready” light will begin to blink . When
the “Power/Ready” light becomes solid again, the reset is complete .
ii� Restoring the factory defaults
Press and hold the “Reset” button for at least 10 seconds, then
release it . The lights on the Router will momentarily flash . The
“Power/Ready” light will begin to blink . When the “Power/Ready”
light becomes solid again, the restore is complete .
o� Power Jack – black
Connect the included 12V/1 .5A
DC power supply to this jack .
