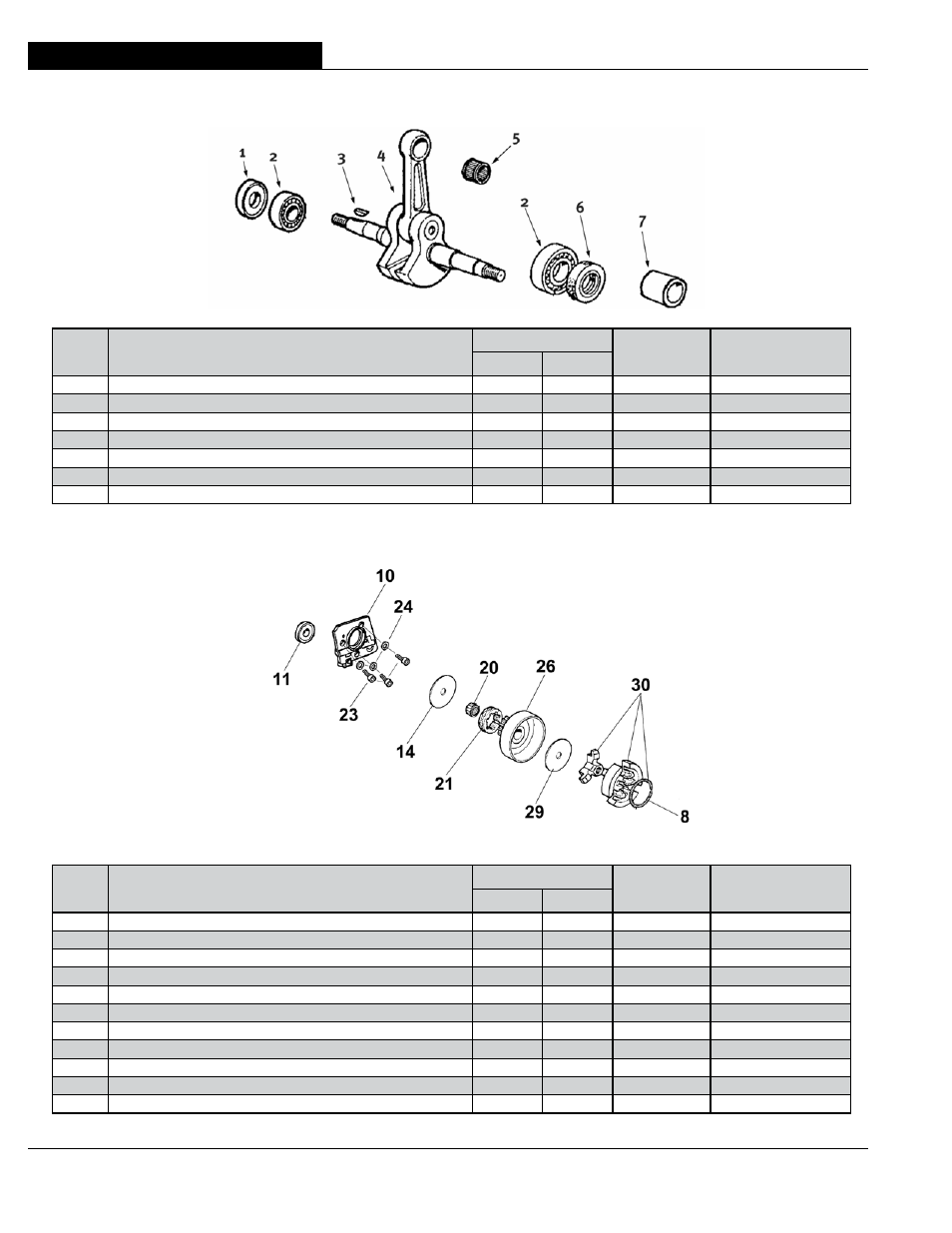

4. SPARE PARTS DIAGRAM
KEY DESCRIPTION
TORQUE LOCTITE ®
PART NUMBER
Nm in‑lbs. 242
1 CRANKSHAFT SEAL FLYWHEEL SIDE 73877
2 CRANKSHAFT BEARING 73209
3 CRANKSHAFT FLYWHEEL WOODRUFF KEY 73878
4 CRANKSHAFT ASSEMBLY 71410
5 WRIST PIN NEEDLE BEARING 73869
6 CLUTCH SIDE MAIN BEARING SEAL-INSIDE 73289
7 CRANKSHAFT BUSHING 71452
KEY DESCRIPTION
TORQUE LOCTITE ®
PART NUMBER
Nm in‑lbs. 242
1 OUTER CRANKCASE SEAL CLUTCH SIDE 73931
2 OUTER CRANKCASE SEAL BODY 73949
3 OUTER CRANKCASE SEAL BODY SCREW 0.3 26 73940
4 WASHER 73285
5 CLUTCH SPACER WASHER 73945
6 8T RIM SPROCKET KIT 70949
7 CLUTCH NEEDLE BEARING 73939
8 613GC CLUTCH DRUM ASSEMBLY 71520
9 CLUTCH SPACER WASHER, INSIDE 73941
10 CLUTCH 3.4 295 71419
11 CLUTCH SPRING 73943
