D1260/D1260B | Owner's Manual | Part IV: Multi-Area Use - View Point Status
Bosch Security Systems | 9/04 | 50410D 69

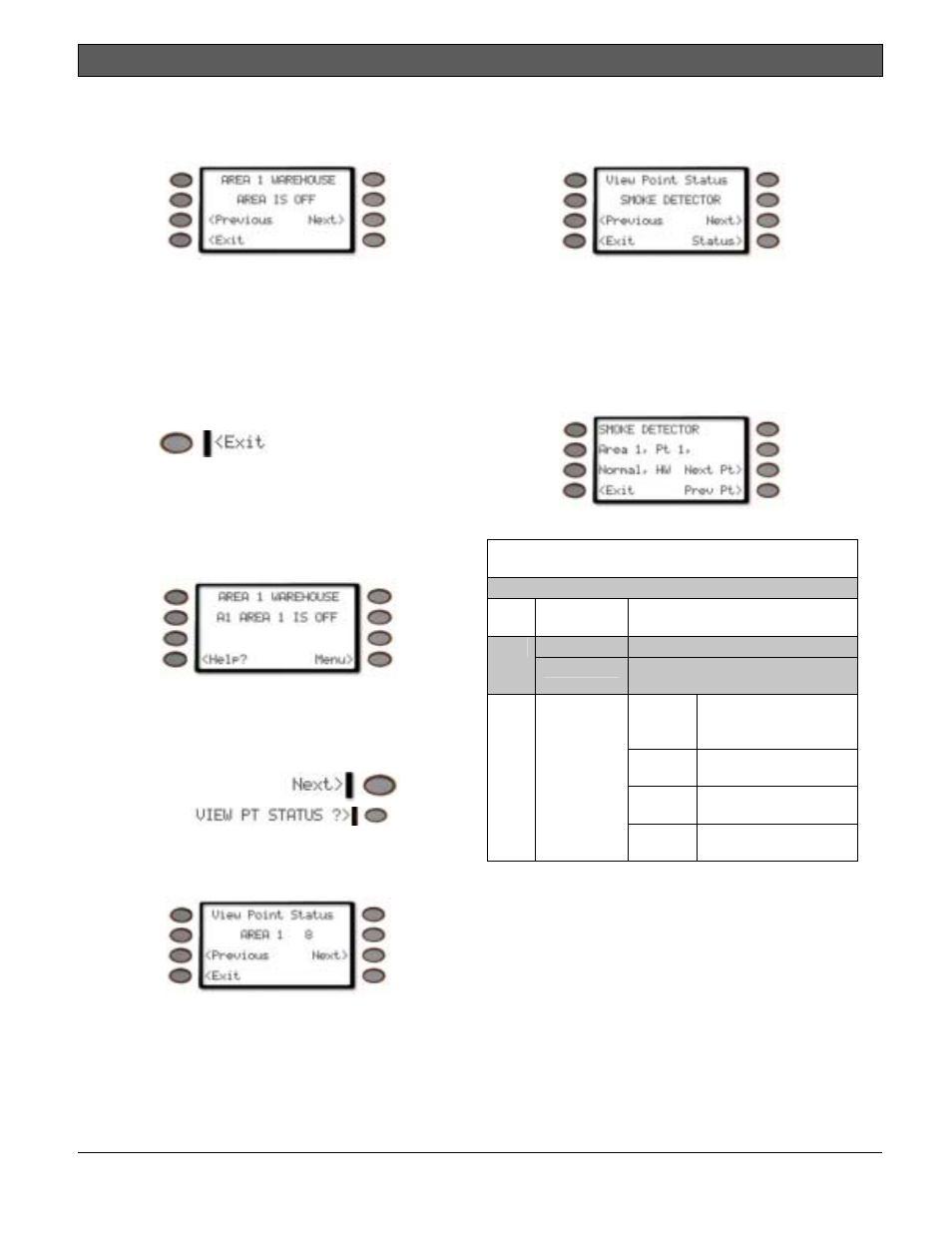

4. The display will change to show on the top line the
area name and the current status on the second
line.
Pressing the Next> soft key will change the
display to the next area and remain for 20 seconds
or until the
Next> soft key is pressed for the next
area. If the time has elapsed, the display returns to
idle text.
Pressing the
soft key will change the
display to the previous area.
5. Press the soft key to return to idle text.
View Point Status
Use this function to identify the number or location of
each point in an area, and to show the current
condition of any point you select.
1. Ensure your keypad shows idle disarmed text.
2. Press the Menu> key to enter the Command
Menu.
3. Press Next> repeatedly until you reach the VIEW
PT STATUS ?> prompt.
Press the adjacent soft key.
4. In this example, Area 1 is the area and there are
eight points assigned to area 1 that can be viewed.
Press the Next> soft key to view the first point in
the area; press the soft key to view the
last point in the area. You may press the soft
key at any time to exit this function.
5. The top line indicates that you are still in View
Point Status mode. The second line will display the
point text.
Pressing the Next> soft key takes you to the next
point in the area whereas the soft key
will take you to the previous point in the area.
To view the status of a point, press the
Status> soft
key.
6. After pressing the Status> key, the command
center will display the following information:
Refer to Table 5 for more information.
Table 5: Screen Area Definitions
Line
# Area Name Definition
Area # This may display numbers 1 to 8. 1
Pt # This may display point numbers 1
to 127 and 129 to 247,
Normal indicates that the point
is not in the faulted
state.
Open indicates that the point
is in an open state.
Short indicates that the point
is in a shorted state.
2 (Point
State), HW
Missing indicates that the point
is missing.
