Model G9-2T DBC

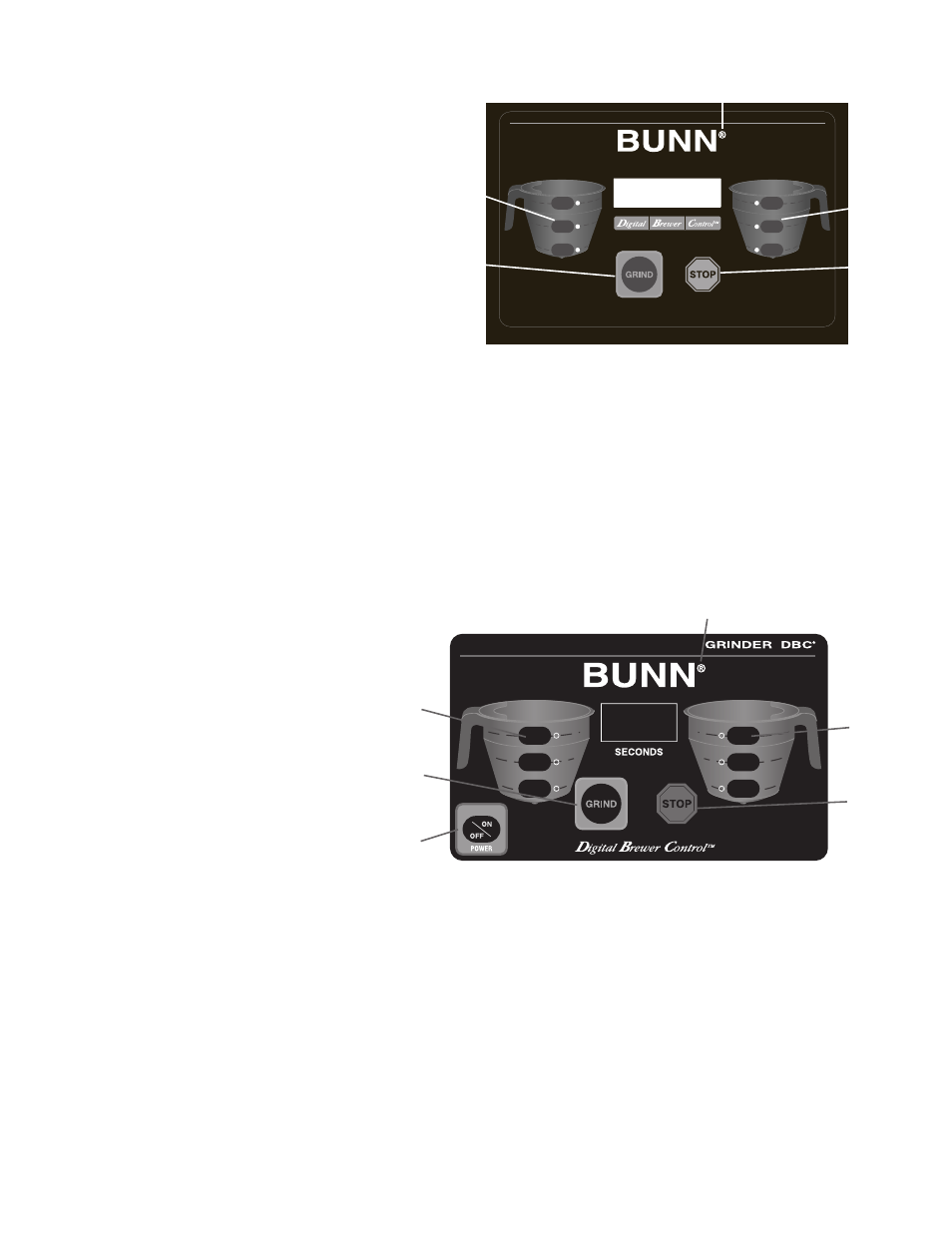

Grind Pad (a)
Pressing initiates a timed grind cycle.
Stop Pad (b)
Pressing ends the operation of the grinder.
® PAD (c)
Pressing the ® pad allows programming access.
OPERATING CONTROLS (Continued)
PANTONE
Red 032 CV
PANTONE
430 CVC
PANTONE
432 CVC
PANTONE
354 CVC
PANTONE
Black C
d
d
c
b
a
Hopper/Batch Selector Pads (d)
These pads are located on the funnel depictions on each side of the grinder with a total of 6 pads. Selecting one
of these pads will select the amount of grind and side from which to grind.
Example: Selecting the lower pad on the left side will grind enough beans from the left hopper of the grinder to
brew the amount programmed into grinder.
Control Board
The control board determines the amount of beans that will leave the hopper in a grind cycle. The timer portion
can be adjusted to dispense a different amount from each hopper and each batch size. The scale is from 0.4 to
99.9 seconds. Refer to the Installation & Operating Manuals for Adjustments.
Model MHG
Grind Pad (a)
Pressing initiates a timed grind cycle.
Stop Pad (b)
Pressing ends the operation of the grinder.
® PAD (c)
Pressing the ® pad allows programming access.
d
d
c
b
a
e
Hopper/Batch Selector Pads (d)
These pads are located on the funnel depictions on each side of the grinder with a total of 6 pads. Selecting one
of these pads will select the amount of grind and side from which to grind.
Example: Selecting the lower pad on the left side will grind enough beans from the left hopper of the grinder to
brew the amount programmed into grinder.
Power ON/OFF Pad (e) (100V Models)
Pressing the ON/OFF pad alternately turns the grinder on and off.
Control Board
The control board determines the amount of beans that will leave the hopper in a grind cycle. The timer portion
can be adjusted to dispense a different amount from each hopper and each batch size. The scale is from 0.4 to
99.9 seconds. Refer to the Installation & Operating Manuals for Adjustments.
