Cleaning the Printer Interior and Drum Unit

Clean the printer interior and the drum unit as follows:

1. Unplug the power cord.

2. Remove the multi-purpose sheet feeder.

3. Open the top cover of the printer.

4. Open the drum cover.

Warning

After you have used the printer, some internal parts of the printer
are extremely hot. When you open the top cover of the printer, never
touch the shaded parts shown in the following diagram.

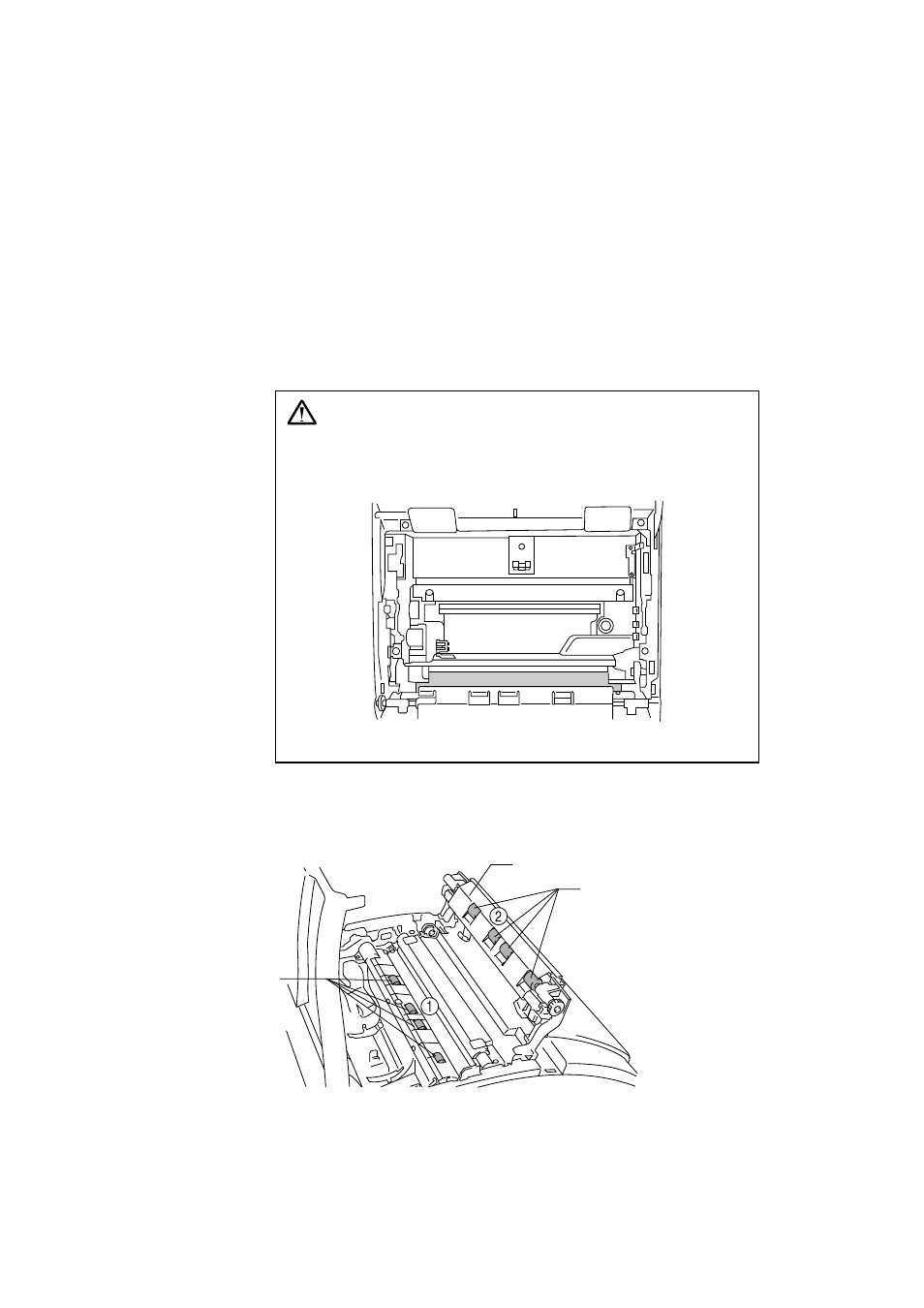

Fig. 5-16 Inside the printer

5. Use a soft cloth to remove any dirt or dust from the drum cover and

inside of the printer. You may use cleaning alcohol (isopropyl) with a
cotton swab to wipe the rollers ( ① ) and pinch rollers ( ② ) of the
drum cover.

Fig. 5-17 Cleaning the Drum Cover and Rollers

Drum Cover

Pinch Rollers

Rollers
