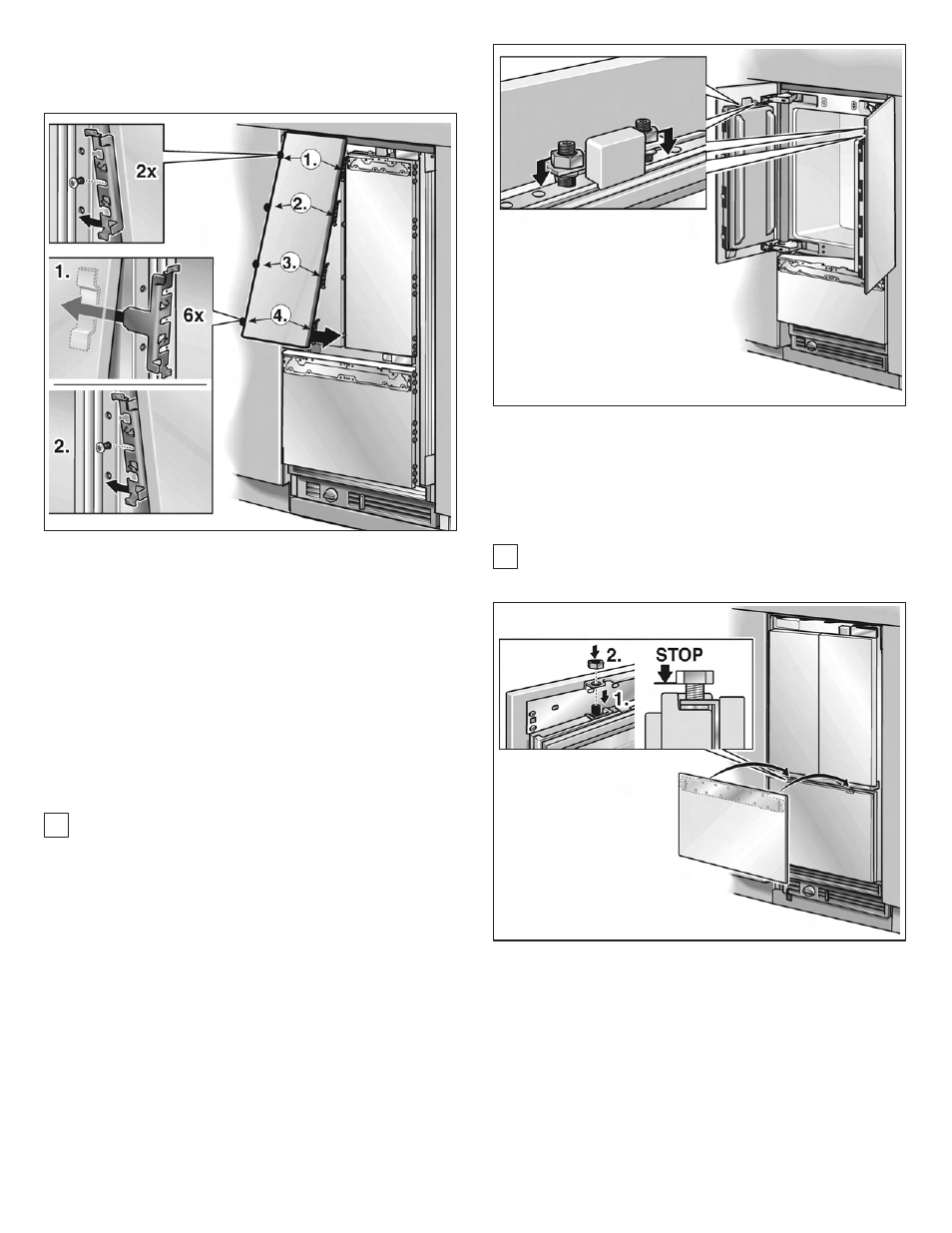

q Align the furniture doors, checking the clearance all
the way round. If required, move the adjusting rail to
the left or right.
q Attach the bracket:
- Lift the furniture door slightly away from the
appliance door.
- Push the side bracket on the left and right over
the screws 1.
- Insert the side bracket on the left and right into
the fixing plate and slide over the screw 2.
Slowly lower the door.
Continue the process until the last side brackets
(4.) have been inserted into the fixing plates and
are positioned on the screws.
i The two upper brackets (1. ć on the left and right)
have no side piece for insertion into the fixing plate.
q Close the door and check that the depth of the
furniture front is aligned with the adjacent fronts.
If required, correct.
q Tighten the bracket screws to fix the depth
alignment.
q Close the door and check the side alignment.
Correct by gently tapping the edge of the open
furniture door with your hand.
q Tighten the nuts on the adjusting rail. This will fix the
side alignment of the door.
23. Attaching the furniture door
(freezer compartment)
i Now fit the furniture handles which are screwed
from behind!
q Hang the furniture door with adjusting rail over the
double threaded bolts.
q Screw the nuts a little onto the double threaded
bolts. Do not tighten!
