3. Connections
TWO WAY
HARDWIRED REMOTE
2 1
3
PUSH
R/PR G/Y B/PB Hs/Cs Vs VIDEO
(HD)SDI
IN
(HD)SDI OUT
S-VIDEO
R.C.
10 BASE-T
DVI ANALOG RGB RS 232/422 IN
POWER WIRELESS
RECEIVER
RS 232/422
OUT

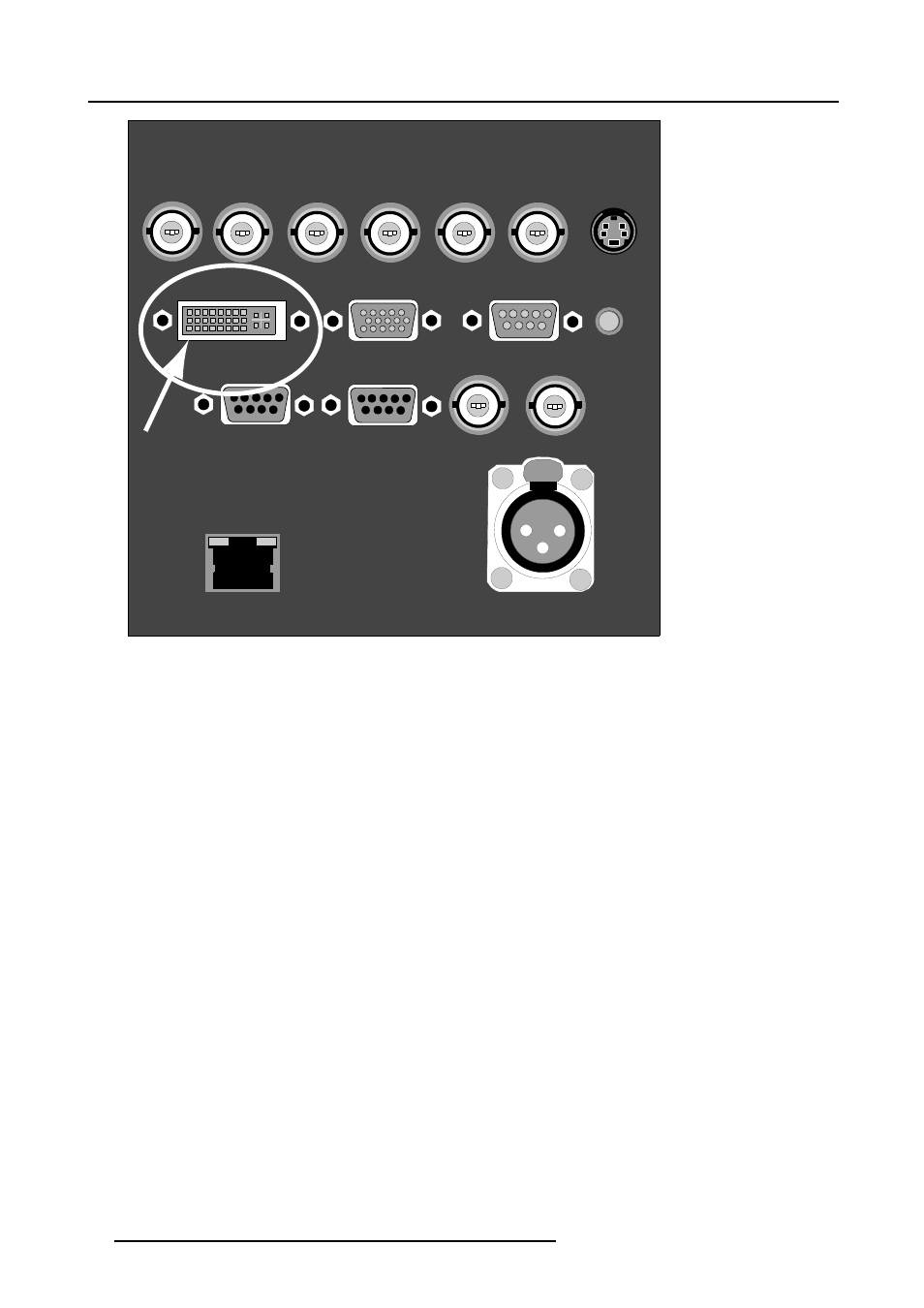

Image 3-7
DVI indication. DVI-I type connector analog link (4 pins at the right side of the connector) not supported.
Pin assignment for the DVI connector.
Pin 1 TMDS DATA2- Pin 13 TMDS DATA3+
Pin 2 TMDS DATA2+ Pin 14 +5 Power
Pin 3 TMDS DATA2/4 Shield Pin 15 Ground (for +5V)
Pin 4 TMDS DATA4- Pin 16 Hot Plug Detect
Pin 5 TMDS DATA4+ Pin 17 TMDS DATA0-
Pin 6 DDC Clock Pin 18 TMDS DATA0+
Pin 7 DDC Data Pin 19 TMDS DATA0/5 Shield
Pin 8 Not connected Pin 20 TMDS DATA5-
Pin 9 TMDS DATA1- Pin 21 TMDS DATA5+
Pin 10 TMDS DATA1+ Pin 22 TMDS Clock Shield
Pin 11 TMDS DATA1/3 Shield Pin 23 TMDS Clock+
Pin 12 TMDS DATA3- Pin 24 TMDS Clock-
How to select the DVI Input ?
1. Press 5 on the RCU
Note: Another way for selecting this input is via Source on the local keypad or via the Menu.
