3. Connections
TWO WAY
HARDWIRED REMOTE
2 1
3
PUSH
R/PR G/Y B/PB Hs/Cs Vs VIDEO
(HD)SDI
IN
(HD)SDI OUT
S-VIDEO
R.C.
10 BASE-T
DVI ANALOG RGB RS 232/422 IN
POWER WIRELESS
RECEIVER
RS 232/422
OUT

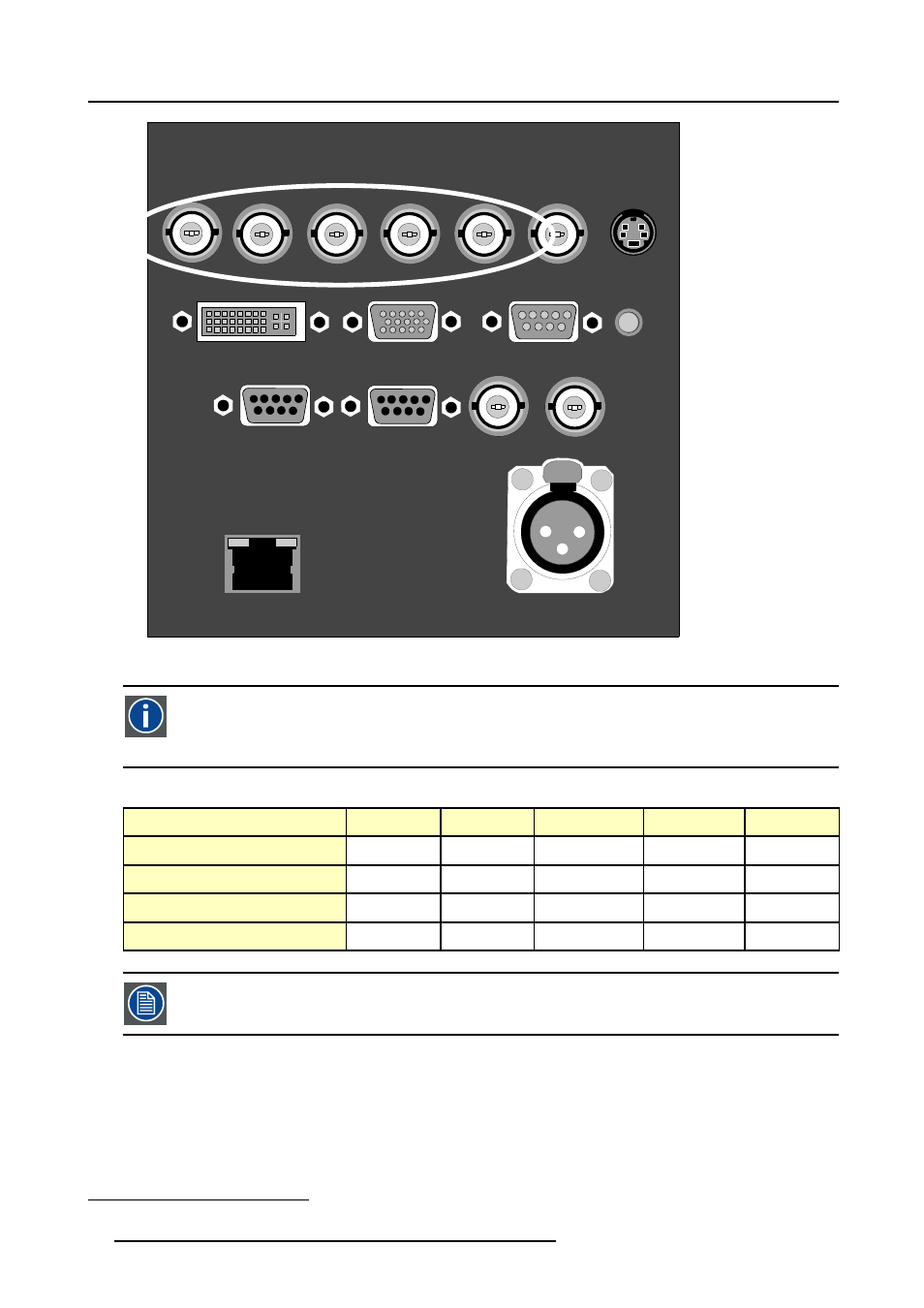

Image 3-3
5-cable input
Component Video
In Component Video the term component describes a number (3) of elements that are needed to make up the video
picture, these components are R-Y/Y/B-Y. A composite video signal on the other hand contains all the information
needed for the color picture in a single channel of information
Which signals can be connected ?
Signals/Input BNC R G B H V
RGBHV R G B H V
RG
s
B 1 R G
s
B - -
RGBS 1 R G B S -
Component PR Y PB - -
Beside the standard RGB, component and sync signals, the extended mode of the 5 Cable input makes pro-
cessing of additional signals possible.
How to select a source on the 5 cable input ?
1. Press 1 on the RCU
Note: Another way for selecting this input is via Source on the local keypad or via the Menu
1. data or video
