4-30 User’s Manual
PORTÉGÉ M750
Inserting an Ultra Slim Bay HDD Adapor II module
To insert the Ultra Slim Bay HDD Adaptor II, follow the steps as described
below:
1. Insert the Ultra Slim Bay HDD Adaptor II in the computer as shown
below and press until the Ultra Slim Bay latch clicks.
2. Remove the Ultra Slim Bay lock screw from the Unlock position.
3. If you want to lock the Ultra Slim Bay HDD Adaptor II, set the Ultra Slim
Bay lock screw in the hole for the lock position.

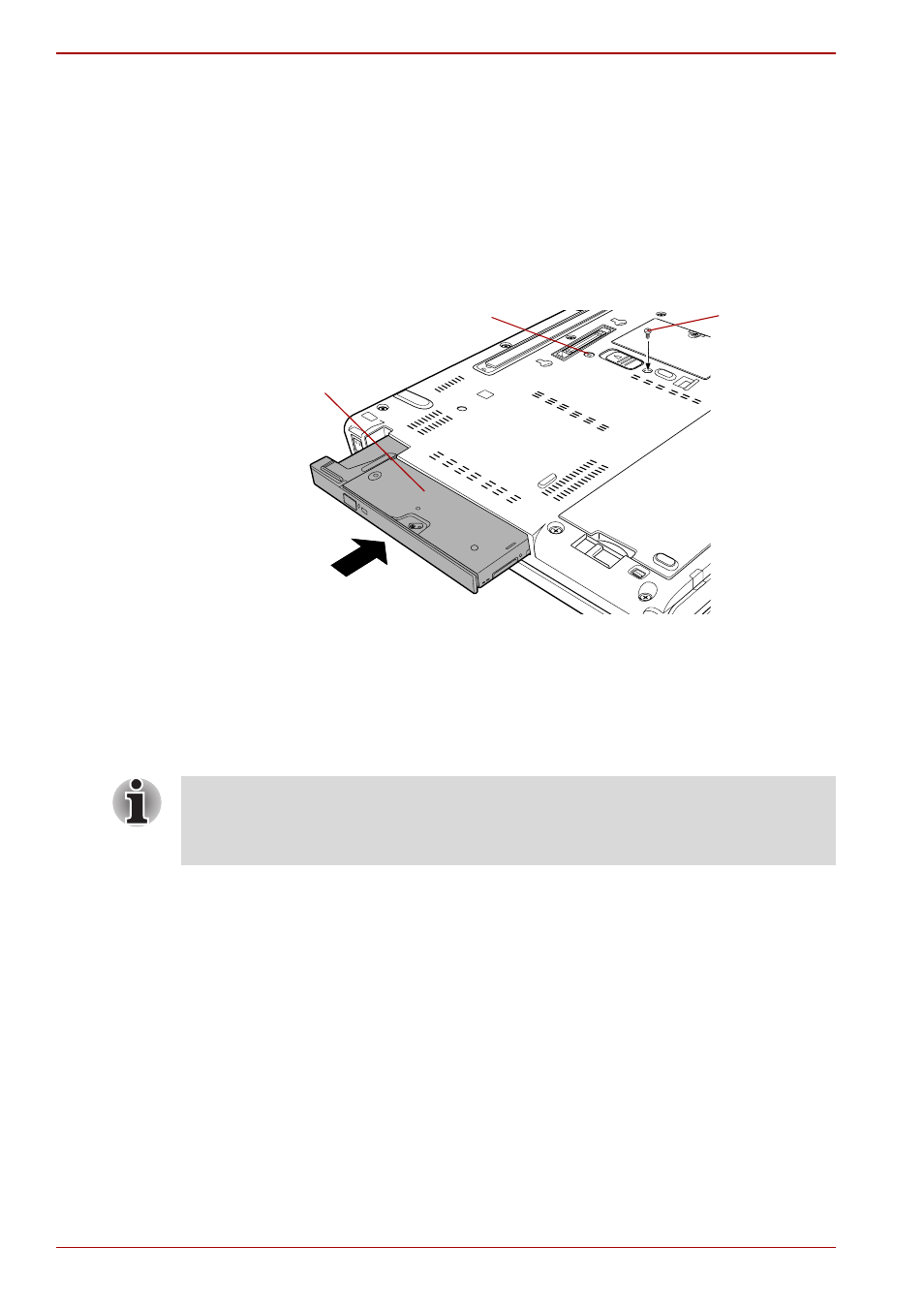

Figure 4-20 Inserting the Ultra Slim Bay HDD Adaptor II
Ultra Slim Bay Case
The DVD Super Multi (Double Layer) Drive Kit II is equipped with an Ultra
Slim Bay Case. This section explains how to remove and install the DVD
Super Multi (Double Layer) Drive Kit II unit.
Removing a unit
To remove the DVD Super Multi (Double Layer) Drive Kit II unit from the
Ultra Slim Bay Case, follow the steps as described below:
1. Slide the Ultra Slim Bay latch to the unlock position.
2. Grasp the DVD Super Multi (Double Layer) Drive Kit II unit and slide
it out.
Ultra Slim Bay
HDD Adaptor II
Lock screw
(Lock position) Unlock position
Store the DVD Super Multi (Double Layer) Drive Kit II unit in the Ultra Slim
Bay Case when removing it from the computer or transporting it.
Refer to Ultra Slim Bay Case section in this chapter.
