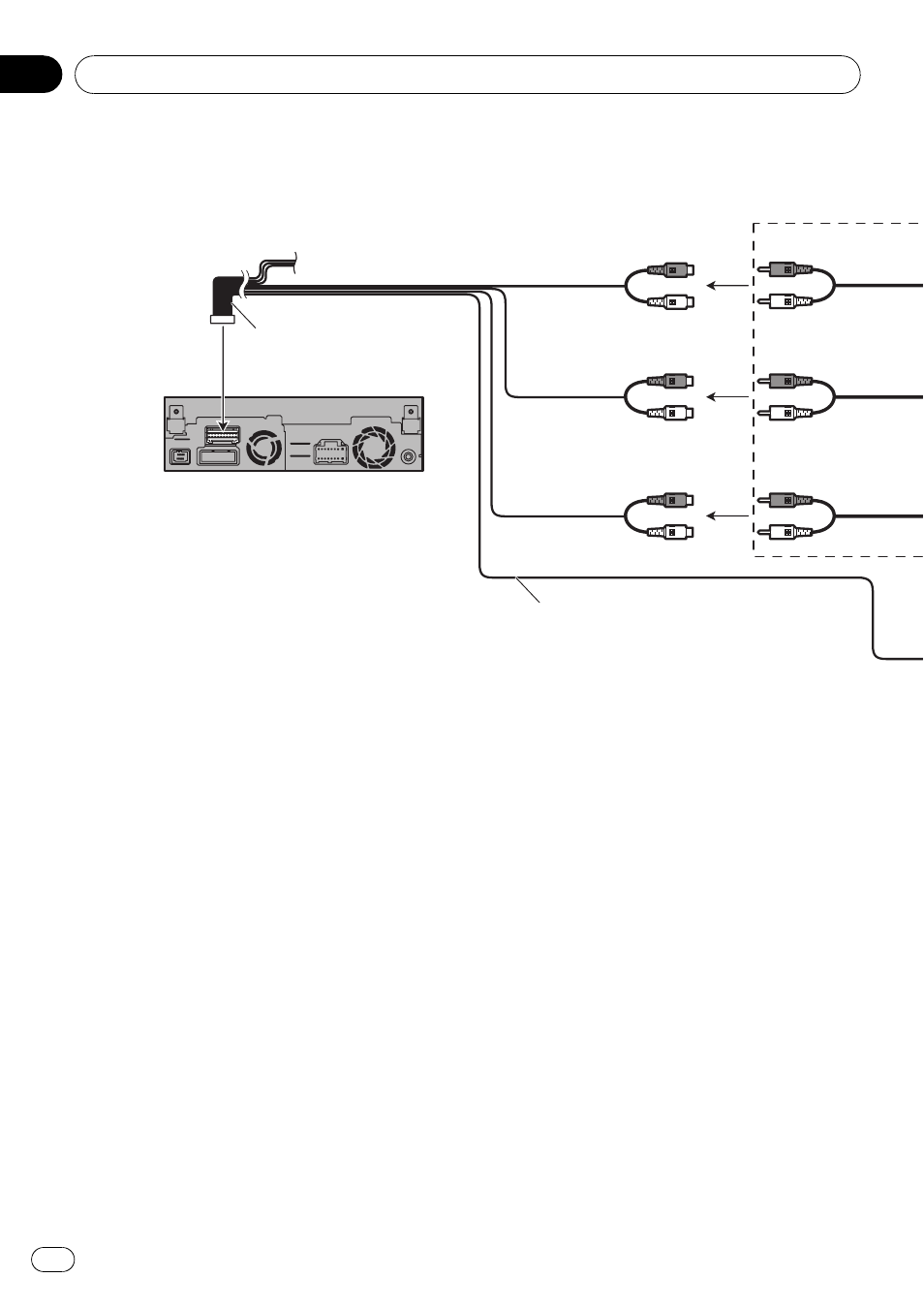

When connecting to separately sold power amp

The display unit

Rear output
(REAR OUTPUT)

20 cm

30 cm

15 cm

RCA connector

Subwoofer output or non-fading output
(SUBWOOFER OUTPUT or NON-
FADING OUTPUT)

Front output
(FRONT OUTPUT)

Blue/White
To system control terminal of the power amp
(max. 300 mA 12 V DC).
