Connecting your equipment
03
30
En
Connecting your TV with no HDMI input

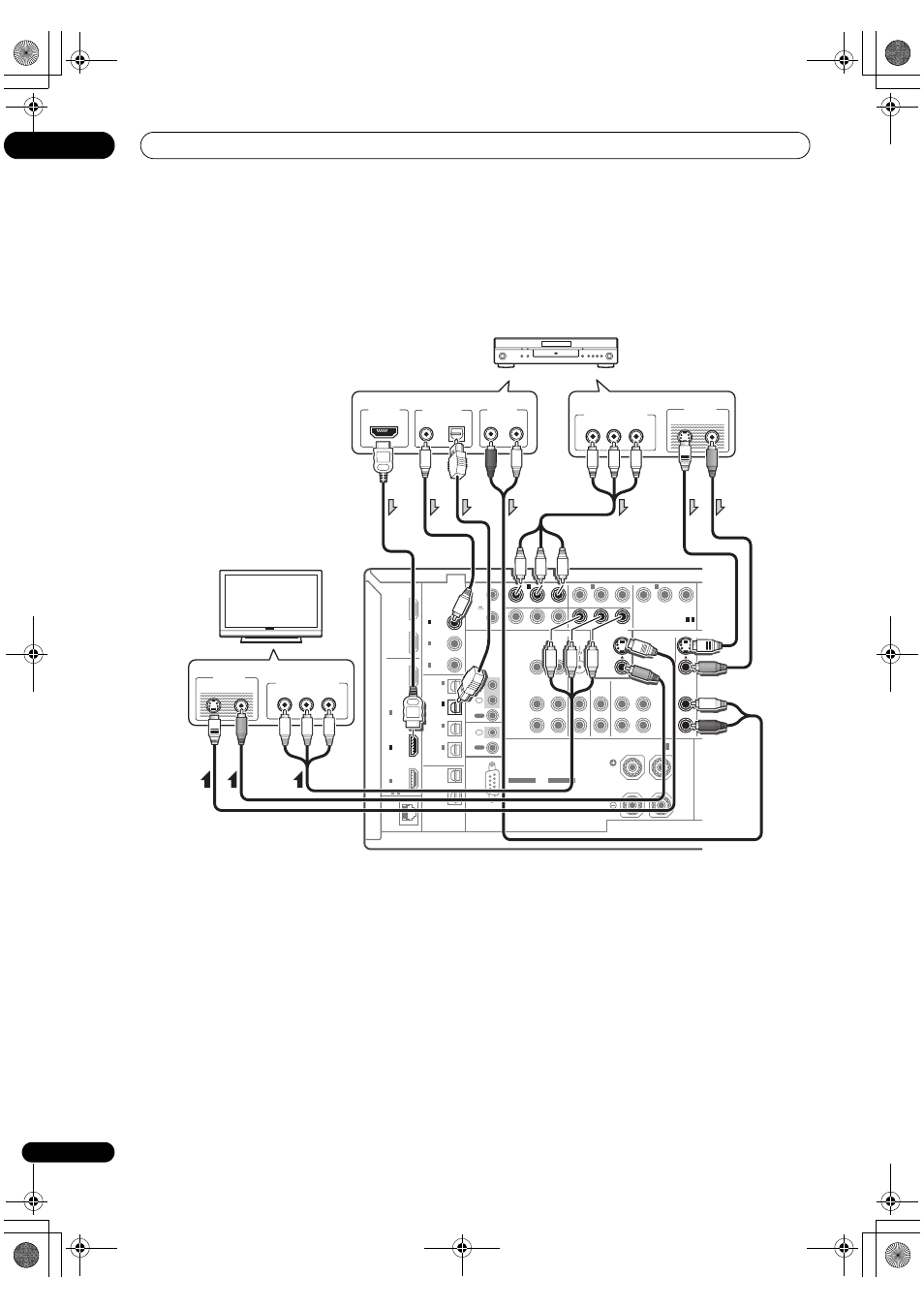

This diagram shows connections of a TV (with no HDMI input) and DVD player (or other playback component) to the
receiver.
• With these connections, the picture is not output to the TV even if the DVD player is connected with an HDMI cable.
Connect the DVD player’s video signals using a composite, S-VIDEO or component cord.
• Connect using an HDMI cable to listen to HD audio
on the receiver. Do not use an HDMI cable to input
video signals.
Depending on the video component, it may not be
possible to output signals connected by HDMI and
other methods simultaneously, and it may be
necessary to make output settings.
Please refer to the
operating instructions
supplied with your component
for more information.
• Component video should give superior picture quality
when compared to composite or S-Video. You can
also take advantage of progressive scan video (if your
source and TV are both compatible), which delivers a
very stable, flicker-free picture. See the manuals that
came with your TV and source component to check
whether they are compatible with progressive-scan
video.
• If your DVD player has multichannel analog outputs,
you can connect these instead. See also see
Connecting the multichannel analog inputs on
page 33.
LAN
(10/100)
SPEAKERS
CAUTION:
SPEAKER IMPEDANCE 6
Ω
- 16
Ω
.
ATTENTION:
ENCEINTE D'IMPEDANCE DE 6
Ω
- 16
Ω
.
OPTICAL
RS-232C
HDMI
COMPONENT VIDEO
IR
CONTROL
BD
IN
12 V
TRIGGER
IN
1
IN
2
IN
3
OUT
1
OUT
2
OUT 1
OUT 2
ASSIGNABLE
3
1
-
3
1
ASSIGNABLE -
(KURO
LINK )
ASSIGNABLE
COAXIAL
ASSIGNABLE
(CD-R)
IN
4
(VIDEO1)
IN
3
(DVR)
IN
2
(TV/SAT)
IN
1
IN
3
(VIDEO 2)
IN
2
(CD)
IN
1
(DVD)
IN
1
IN
2
(OUTPUT
12V
TOTAL
50 mA
MAX)
1
2
IN
1
IN
IN
2
OUT
OUT
(DVD)
P
R
P
B
Y
P
R
P
B
Y
P
R
P
B
Y
(DVR)
IN
3
(VIDEO 1)
ZONE 2 OUT
MONITOR OUT
ZONE 2
OUT
VIDEO
ZONE 3
OUT
PHONO
IN
CD
IN
OUT
IN
CD-R/TAPE
T
DVD
IN
SIGNAL
GND
S-VIDEO
VIDEO
B
R SURROUND BACK/
L
(Single)
L
R
SEE INSTRUCTION
MANUAL
SELECTABLE
VOIR LE MODE
D'EMPLOI
SELECTABLE
HDMI
IN
1
(DVD)
OPTICAL
(DVR)
IN
2
DVD
IN
COMPONENT VIDEO
3
1
ASSIGNABLE -
IN
1
(DVD)
IN
2
MONITOR OUT
P
R
P
B
Y
COAXIAL
ASSIGNABLE
VIDEO IN
VIDEO
S-VIDEO
Y
P
B
P
R
COMPONENT VIDEO IN
VIDEO OUT
S-VIDEO
VIDEO
ANALOG
R
AUDIO OUT
DIGITAL OUT
COAXIAL
OPTICAL
HDMI OUT
L
Y
P
B
P
R
COMPONENT VIDEO OUT
DVD player, etc.
TV
Select one
Select one
Select one
