10 /// (TUNE/PRESET) /ENTER
Use the arrow buttons when setting up your HOME
MENU. Use TUNE / to find radio frequencies and use
PRESET / to find preset stations (page 55).
11 TUNER EDIT
Use with
////ENTER to memorize and name
stations for recall (page 55).
12 BAND
Switches between AM and FM radio bands (page 55).
13 Listening mode buttons
AUTO SURR/ALC/STREAM DIRECT – Switches
between Auto Surround (page 58), Auto level control,
Optimum Surround mode and Stream Direct mode
(page 62).
HOME THX – Press to select a Home THX listening
mode (page 60).
STANDARD SURROUND – Press for Standard
decoding and to switch between the various
2 Pro
Logic IIx and Neo:6 options (page 59).
ADVANCED SURROUND – Use to switch between
the various surround modes (page 60).
STEREO – Switches between stereo playback and
Front Stage Surround Advance modes (page 62).
14 MULTI-ZONE controls
If you’ve made MULTI-ZONE connections (see
MULTI-
ZONE setup on page 37) use these controls to control the
sub zone from the main zone (see
Using the MULTI-ZONE
controls on page 88).
15 SPEAKERS
Use to change the speaker system (page 88).
16 HOME MENU
Press to access the Home Menu (pages 44, 47, 82, 106,
115, 118, 120 and 125).
17 RETURN
Press to confirm and exit the current menu screen.
18 HDMI input connector
Use for connection to compatible HDMI device (Video
camera, etc.). See
Connecting an HDMI-equipped
component to the front panel input on page 41.
19 iPod/iPhone/USB terminals
Use to connect your Apple iPod as an audio and video
source, or connect a USB device for audio and photo
playback (page 42).
20 MCACC SETUP MIC jack
Use to connect the supplied microphone (page 45).
21 PHONES jack
Use to connect headphones. When the headphones are
connected, there is no sound output from the speakers.

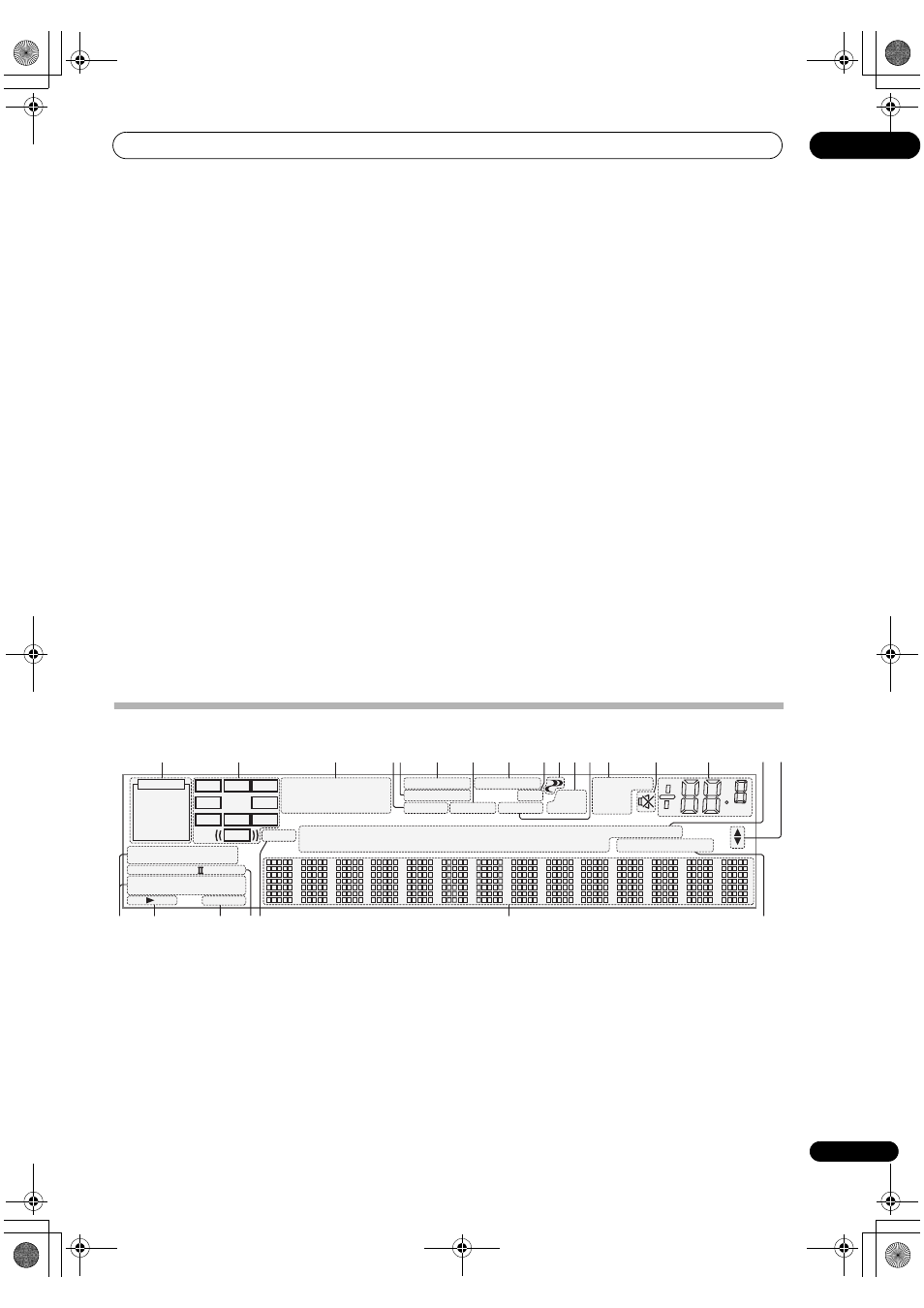

Display
1 SIGNAL indicators
Light to indicate the currently selected input signal.
AUTO lights when the receiver is set to select the input
signal automatically (page 65).
2 Program format indicators
Light to indicate the channels being input when PCM
signals are being input. They do not indicate the audio
signals being output from the receiver.
L/R – Left front/Right front channel
C – Center channel
SL/SR – Left surround/Right surround channel
LFE – Low frequency effects channel (the (( )) indicators light
when an LFE signal is being input)
XL/XR – Two channels other than the ones above
XC – Either one channel other than the ones above, the mono
surround channel or matrix encode flag
3 Digital format indicators
Light when a signal encoded in the corresponding format
is detected.
4 S.RTRV
Lights when the Sound Retriever function is active
(page 85).
PCM
HDMI
DIGITAL
ANALOG
L C R
SL SR
XL XR XC
LFE
AUTO DIGITAL PLUS
AUTO SURROUND
STREAM DIRECT
PROLOGIC x Neo:6
THX ADV.SURROUND
STEREO STANDARD
SP AB SLEEP
DSD PCM
DTS HD ES 96/24
MSTR
S.RTRV SOUND UP MIX OVER MONO dB
2
MULTI-ZONE STEREO TrueHD WMA9Pro
FULL BAND TUNED RDS
PQLS ALC ATT 2
2
USB HMG VIDEO TV DVD
HDMI DVR BD
CD TUNER
CD-R PHONO iPod [ 2 ] [ 3 ] [ 4 ]
