Checking the connections of
leads and installation positions
Check that leads are properly connected be-
tween the navigation system and the vehicle.
Please also check whether they are connected
in the correct positions.
1 Touch [Settings] in NAVI MENU, then
touch [Hardware Info].
2 Touch [Connection Status].

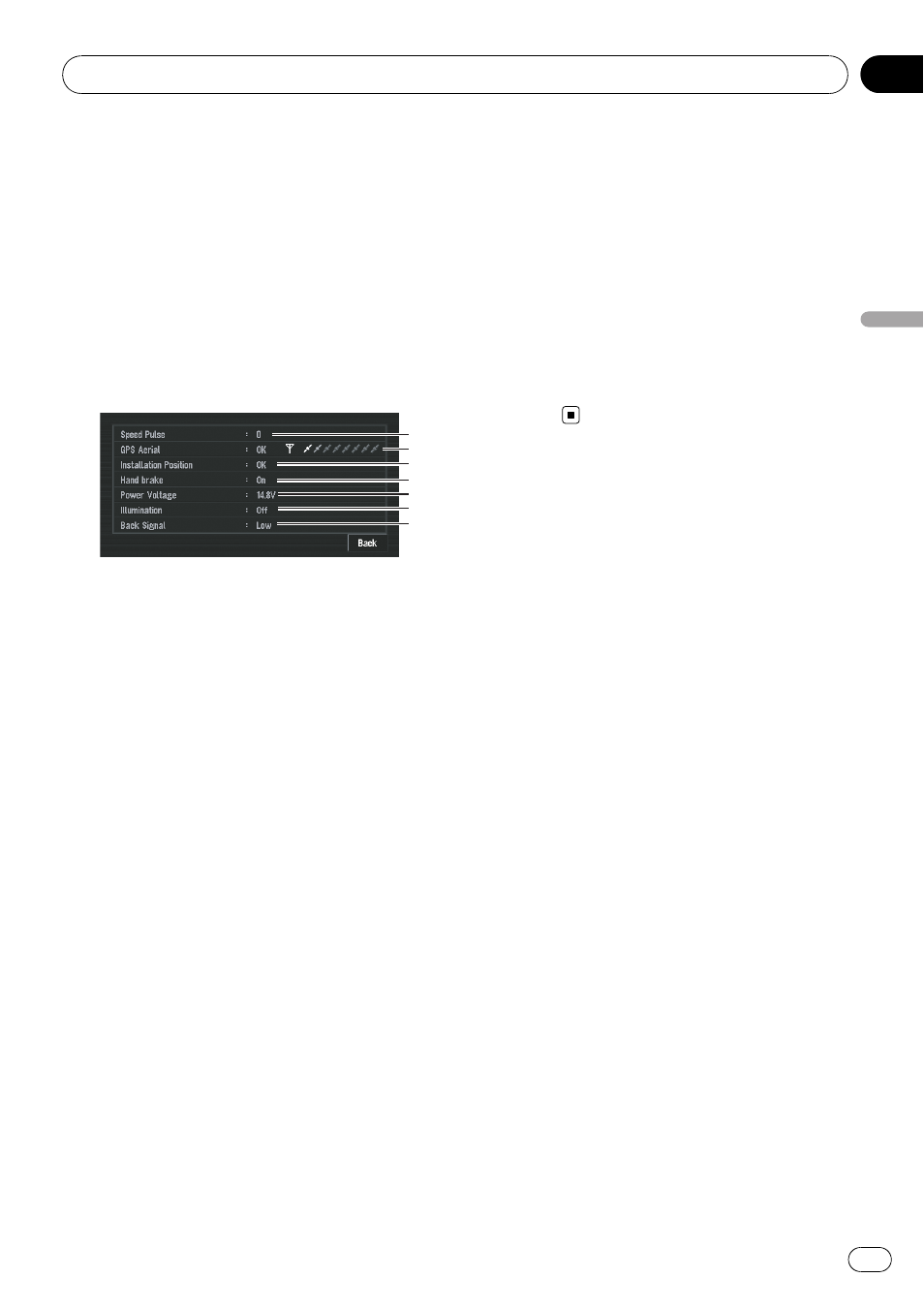

The Connection Status screen appears.
4
5
6
7
1
3
2
1 Speed Pulse
The Speed Pulse value detected by the navi-
gation system is shown.
“0” is shown while
the vehicle is stationary.
2 GPS Aerial
Indicates the connection status of the GPS
aerial, the reception sensitivity and from
how many satellites the signal is received.
If the signal is received correctly, [
OK] is dis-
played. If reception is poor, [ NOK] appears.
3 Installation Position
The installation position of the navigation
system is shown.
If installed correctly, [
OK] appears. Indicates
whether the installation position of the navi-
gation system is correct or not. When the
navigation system is installed at an extreme
angle exceeding the limitation of the instal-
ling angle, [
Incorrect angle] will be dis-
played. When the angle of the navigation
system has been changed, [
Excessive vi-
bration] will be displayed.
4 Hand brake
When the handbrake is applied, [ On] is dis-
played. When the handbrake is released,
[
Off] is displayed.
5 Power Voltage
The power supply (reference value) provided
from the vehicle battery to the navigation
system is shown. If the voltage does not fall
within the range of 11 V to 15 V, check that
power cable connection is correct.
6 Illumination
When the headlights or small lamps of a ve-
hicle are on, [
On] is displayed. (If the or-
ange/white lead is not connected, [ Off]
appears.)
7 Back Signal
When the gearstick is shifted to
“R”, the sig-
nal switches to [ High] or [Low]. (Which of
these is displayed depends on the
vehicle.)
