Connecting your equipment
8
En

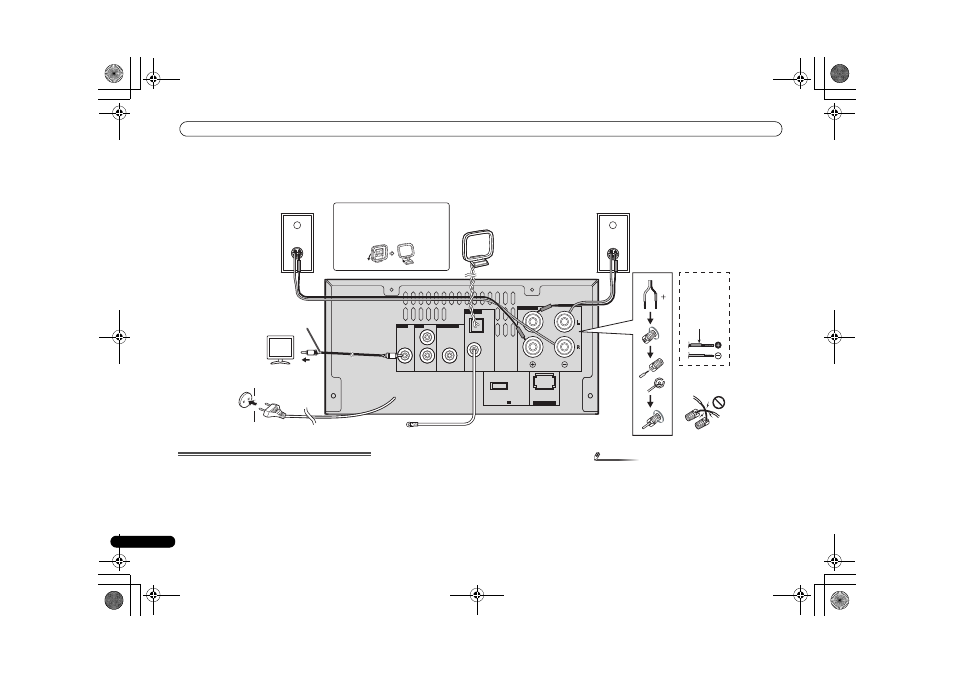

Connecting your equipment
Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.
Aerial connection
Supplied FM aerial:
Connect the FM aerial wire to the FM 75 ohms socket and
position the FM aerial wire in the direction where the
strongest signal can be received.
External FM aerial:
Use an external FM aerial (75 ohms coaxial cable) for better
reception. When an external FM aerial is used, disconnect
the supplied FM aerial wire.
Supplied AM loop aerial:
Connect the AM loop aerial to the AM terminal. Position the
AM loop aerial for optimum reception. Place the AM loop
aerial on a shelf, etc., or attach it to a stand.
Note
• Placing the aerial on the unit or near the AC power lead
may cause noise pickup. Place the aerial away from the
unit for better reception.
DC OUTPUT
for WIRELESS LAN
(OUTPUT 5 V 0.6 A MAX) LAN (10/100)
FM
UNBAL
75Ω
SPEAKERS
AM
LOOP
ANTENNA
OUT IN PREOUT
L
R
VIDEO LINE SUBWOOFER
Right
speaker
FM aerial
Left
speaker
TV
To video input
socket
AM loop
aerial
< Assembling >
Installing the AM loop aerial
Video cable
Wall socket
(AC 220 V to 240 V,
50 Hz)
Red tube
X-HM70
provided
speaker wire
Incorrect
