4

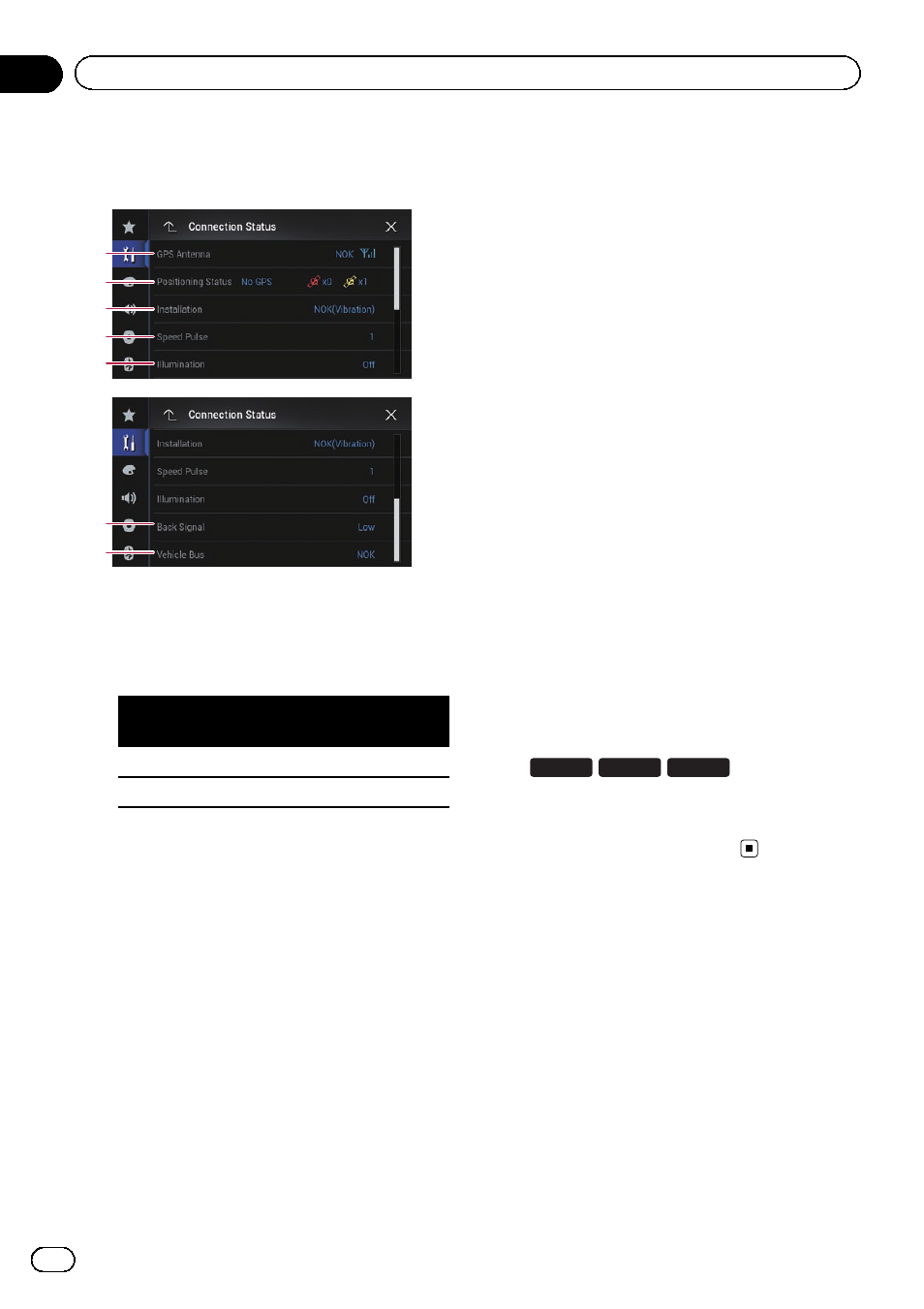

Touch [Connection Status].
The
“Connection Status” screen appears.
2
3
5
4
1
7
6
1 GPS Antenna
Indicates the connection status of the GPS
aerial, the reception sensitivity, and from
how many satellites the signal is received.
Colour
Signal com-
munication
Used in posi-
tioning
Orange
Yes
Yes
Yellow
Yes
No
p When the GPS aerial is connected to
this product,
“OK” is displayed. When
the GPS aerial is not connected to this
product,
“NOK” is displayed.
p If reception is poor, please change the
installation position of the GPS aerial.
2 Positioning Status
Displays the positioning status (3D posi-
tioning, 2D positioning, or no positioning),
the number of satellites used for position-
ing (orange), and the number of satellites
whose signal has been received (yellow). If
signals from more than three satellites are
received, the current location can be mea-
sured.
= For details, refer to Positioning technol-
3 Installation
The installation position of this product is
shown. If installed correctly,
“OK” appears.
Indicates whether the installation position
of this product is correct or not. When this
product is installed at an extreme angle ex-
ceeding the limitation of the installing
angle,
“NOK(Installation Angle)” will be
displayed. When the angle of this product
has been changed,
“NOK(Vibration)” will
be displayed.
4 Speed Pulse
The Speed Pulse value detected by this pro-
duct is shown.
“0” is shown while the vehi-
cle is stationary.
5 Illumination
When the headlights or small lamps of the
vehicle are on,
“On” is displayed. When the
small lamps of the vehicle are off,
“Off” is
displayed. (If the orange/white lead is not
connected,
“Off” appears.)
6 Back Signal
When the gearstick is shifted to
“R”, the
signal switches to
“High” or “Low”. (One of
these is displayed depending on the vehi-
cle.)
7 Vehicle Bus
F960BT
F960DAB
F960BT
When the optional Vehicle Bus adapter is
connected,
“OK” is displayed. If not con-
nected,
“NOK” is displayed.
