Pioneer AVIC-F860BT - Manual (Page 127)

F60DAB F960DAB F960BT
You can display the video image output by the
device connected to this product. This section
describes operations for an HDMI source.
p A High Speed HDMI
® Cable (sold sepa-
rately) is required for connection.
= For details of the connection method,
refer to the Installation Manual.
CAUTION
For safety reasons, video images cannot be
viewed while your vehicle is in motion. To view
video images, you must stop in a safe place and
apply the handbrake.

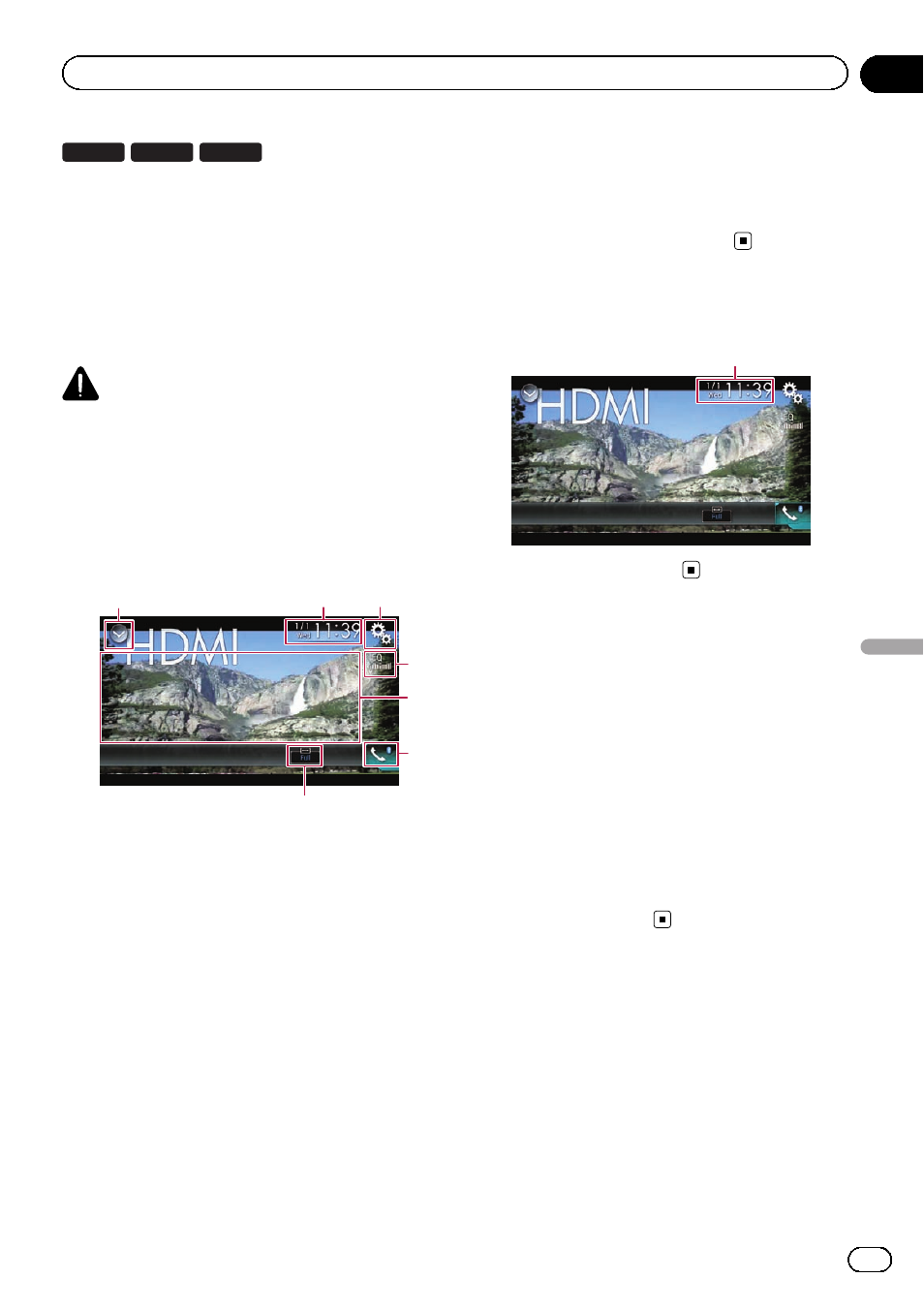

Using the touch panel keys
1 3 2
7
5
4
6
1 Displays the source list.
= For details, refer to Selecting a front
source on the source list on page 21.
2 Displays the Time and date setting
screen.
= For details, refer to Setting the time and
date on page 177.
3 Displays the Setting menu screen.
4 Recalls equaliser curves.
= For details, refer to Using the equaliser
on page 156.
5 Hides the touch panel keys.
Touching this area hides the touch panel keys.
p Touch anywhere on the LCD screen to
display the touch panel keys again.
6 Displays the Phone menu screen.
= For details, refer to Displaying the phone
menu on page 61.
7 Changes the wide screen mode.
= For details, refer to Changing the wide
screen mode on page 178.
Reading the screen
1
1 Current time and date
Starting procedure
1 Display the AV source selection screen.
= For details of the operations, refer to Dis-
playing the AV operation screen on page 20.
2 Touch [HDMI] on the AV source selec-
tion screen.
The image is displayed on the screen.
3 Use the touch panel keys on the screen
to control the external unit.
= For details, refer to Using the touch panel
keys on page 127.
Engb
127
Chapter
24
Using
an
HDMI
sour
ce
Using an HDMI source
