21
En
02 Install Your Flat Panel Display
Englis
h

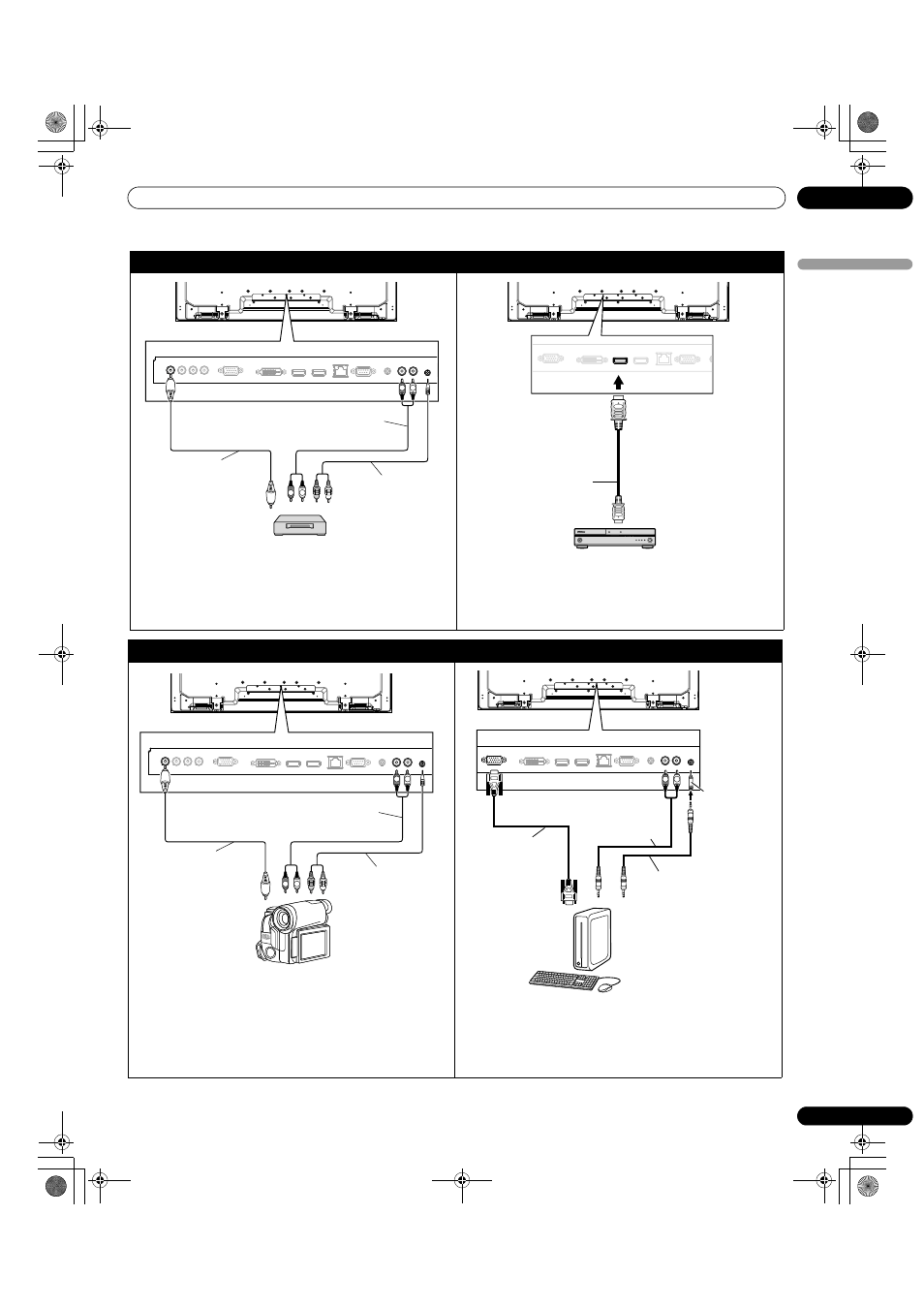

Connect a VCR: Connect HDMI equipment:
Connect a game console or camcorder: Connect a PC:
R L
L R
Use INPUT 1 terminal when connecting a VCR or other
recording equipment. For details, refer to the operation
manual that came with the device.
VCR
Rear view
Video cable
(commercially available)
Audio cable
(commercially available)
Stereo sound cable
with a mini plug
(supplied)
HDMI equipment
Rear view
INPUT 5 and INPUT 6 are HDMI terminals. For details,
refer to “6.3 Use HDMI Inputs.”
HDMI compliant cable
(HDMI cable having
the HDMI mark)
R L
L R
Use INPUT 1 terminal when connecting a game
console, camcorder, or other audio/visual equipment.
For details, refer to the operation manual that came with
the game console or camcorder.
Rear view
Video cable
(commercially available)
Camcorder/Game console
Audio cable
(commercially available)
Stereo sound cable
with a mini plug
(supplied)
R L
Personal computer
Rear view
Stereo mini cable
(audio, commercially
available)
Use INPUT 3 terminal (Analog RGB) when connecting
a computer (PC). For details, refer to the operation
manual that came with the PC.
Stereo mini cable
(commercially available)
RGB cable
(commercially
available)
Conversion plug
(ø 3.5 mm to
ø 2.5 mm,
commercially
available)
