20
En
02 Install Your Flat Panel Display
2.6 Connect to Other Devices (DVR, Receiver, BDR, etc.)
The type of equipment attached to your flat panel display determines which panel ports are used. The following
sections explain how to connect equipment such as a DVD player, video recorder, etc. to the panel. If your
equipment is not listed, please refer to the operating instructions that came with the device(s) for connection
assistance.

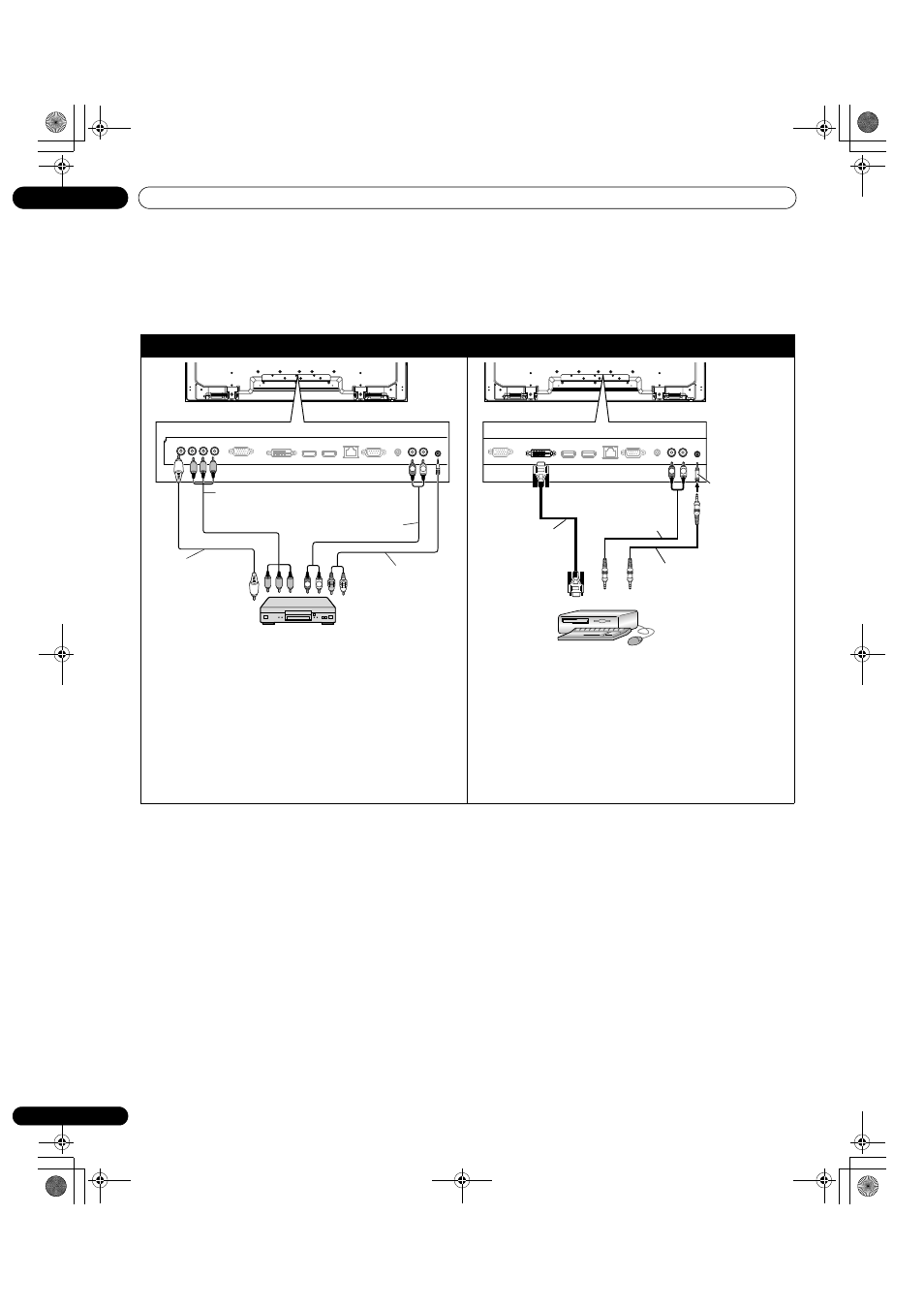

Connect a DVD player: Connect DVI equipment:
L R
R L
Use INPUT 2 terminals when connecting a DVD player
or other audio/visual equipment. If your DVD player has
an HDMI terminal, use this connection instead of
making video connections. For details, refer to the
operation manual that came with the DVD player.
DVD player
Stereo sound cable
with a mini plug
(supplied)
Video cable
(commercially
available)
Rear view
Component video cable
(commercially
available)
Audio cable
(commercially available)
R L
Use a DVI-D 24-pin (digital only) cable to connect a PC
equipped with a DVI output terminal (digital RGB
signal). After completing connections, follow the on-
screen setup directions (page 56). INPUT 4 supports
Microsoft “Plug & Play” (VESA DDC 2B) components.
See “9.2 Video/PC Signals (HDMI/DVI/Component/min
D-Sub/Composite)” for information about signals and
display formats supported by INPUT 4.
Rear view
PC
Stereo mini cable
(audio, commercially
available)
Stereo mini cable
(commercially available)
DVI-D cable
(commercially
available)
Conversion plug
(ø 3.5 mm to
ø 2.5 mm,
commercially
available)
