17
En
02 Install Your Flat Panel Display
Englis
h
2.5 Mount the Flat Panel Display
Because your flat panel display is slim but heavy, have at least two people mount and/or position the panel. The
following sections provide instructions for the different mounting and anchoring options.
Anchor the Panel When Using a Stand
When using a stand, stabilize the panel to keep it from tipping over. Please use the metal fittings and screws
supplied with the optional stand to anchor the panel to a wall or other solid support structure.
Another option is to purchase hooks, cords, and fittings through your installer or from your local hardware store.
The hardware size and strength depends on the composition and thickness of the anchoring surface.
Recommended hook: Nominal diameter 8 mm, length 12 mm to 18 mm
To anchor the panel when using the stand, follow the steps below.
To stabilize the flat panel display on a table or platform, use the metal fittings and screws supplied with the
optional stand as well as commercially available wood screws. The wood screws are to anchor the metal fittings
when mounting on a wooden surface. These screws should have a nominal diameter of 4 mm and are at least 20
mm long.
Notes: Avoid moving the table after the panel is attached.
Do not use bare wires for the cord. If any part of the wire is introduced into the ventilation port on the back
of the display panel, fire or electrical shock could result.

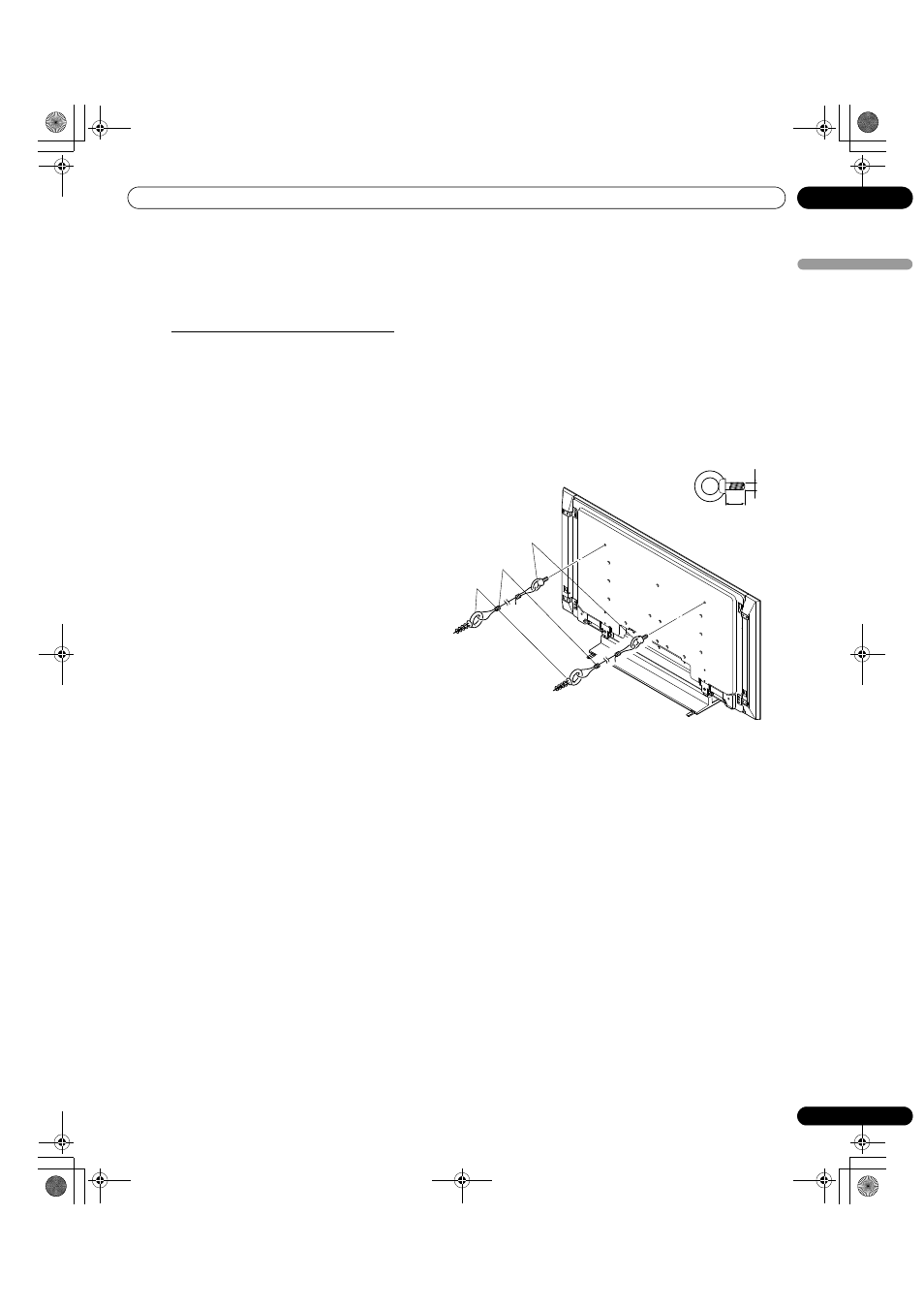

1 ) Attach the hooks to the mounting holes on
the back of the panel.
2 ) Sink the fittings into the wall or support
structure.
3 ) Run cords between the hooks and the
fittings.
4 ) Tighten the cords until the panel is anchored
but not pulled off balance.
Fitting
2. Cord
1. Hook
12 mm to 18 mm
M8
(KRP-600M)
