Page 87: Chapter 11
HDMI Control
11
87
En
Chapter 11
HDMI Control
Important
• The KURO LINK function name used on the web and
in catalogues is referred to as HDMI Control in the
operating instructions and on the product.
By connecting this receiver to an HDMI Control-
compatible Pioneer flat screen TV or the HDD/DVD
recorder with an HDMI cable, you can control this
receiver from the remote control of a connected flat
screen TV, as well as have the connected flat screen TV
automatically change inputs in response to operations
carried out on this unit.
Refer to the operating manual for your flat screen TV for
more information about which operations can be carried
out by connecting via HDMI cable.
• You cannot use this function with components that
do not support HDMI Control.
• We cannot guarantee this unit will work with HDMI
Control-compatible components other than those
made by Pioneer.

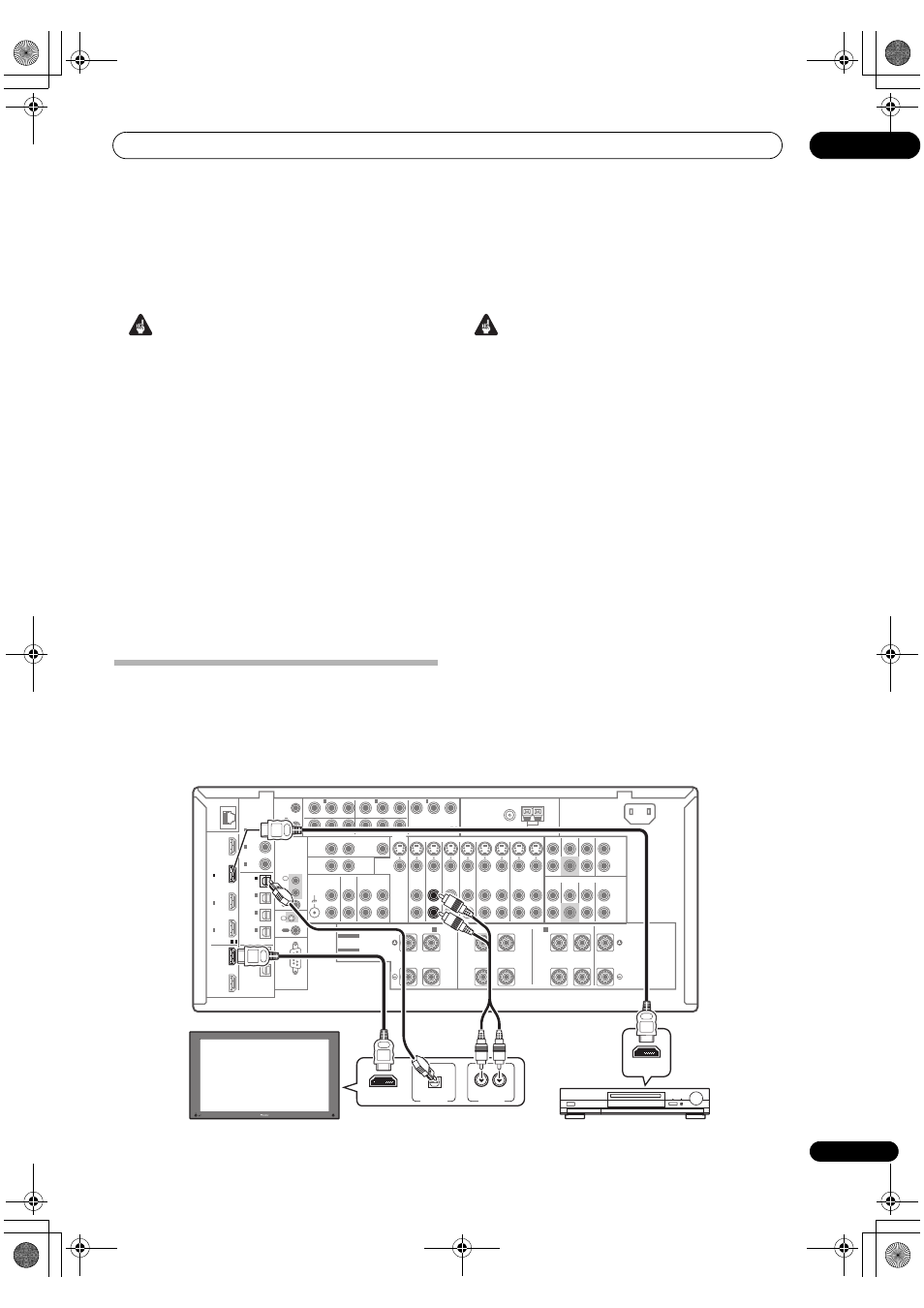

Making the HDMI Control connections
You can use synchronized operation for a connected flat
screen TV and up to four other components.
Be sure to connect the flat screen TV’s audio cable to the
audio input of this unit.
Important
• When connecting this system or changing
connections, be sure to switch the power off and
disconnect the power cord from the wall socket.
After completing all connections, connect the power
cords to the wall socket.
• After connecting this receiver to an AC outlet, a 15
second initialization process begins. You cannot
carry out any operations during initialization. The
HDMI indicator on the display unit blinks during
initialization, and you can turn this receiver on once
it has stopped blinking.
• To get the most out of this function, we recommend
that you connect your HDMI component not to a flat
screen TV but rather directly to the HDMI terminal on
this receiver.
•
SC-LX81 only: To use the HDMI control function,
connect this receiver and flat screen TV using the
HDMI OUT 1 terminal. Connecting the HDMI control
compatible component using the
HDMI OUT 2
terminal may result in malfunction. If this happens,
turn off the HDMI control compatible component’s
HDMI control setting.
• HDMI Control is compatible with up to four units, two
DVD or Blu-ray disc players and two DVD or Blu-ray
disc recorders. (The maximum number of units may
differ depending on the connected flat screen TV.)
LAN
(10/100)
DIGITAL
OPTICAL
RS-232C
HDMI
COAXIAL
COMPONENT VIDEO
ANTENNA
PRE OUT
MULTI CH IN
A
IR
CONTROL
BD
IN
12 V
TRIGGER
IN
1
IN
2
IN
3
OUT
1
OUT
2
SOURCE
OUT
ZONE3/
SOURCE
OUT
3
1
ASSIGNABLE -
3
1
ASSIGNABLE -
(HDMI
CTRL)
ASSIGNABLE
ASSIGNABLE
(CD-R)
IN
4
(VIDEO1)
IN
3
(DVR1)
IN
2
(TV/SAT)
IN
1
IN
3
(DVR2)
IN
2
(CD)
IN
1
(DVD)
IN
1
IN
2
(OUTPUT
12V
TOTAL
50mA
MAX)
1
2
IN
1
IN
IN
2
OUT
OUT
(DVD)
P
R
P
B
Y
P
R
P
B
Y
P
R
P
B
Y
(VIDEO1)
IN
3
(VIDEO2)
R
ZONE 2 OUT
MONITOR
OUT
PHONO
IN
CD
IN
DVD
IN
TV/SAT
IN
VIDEO1
IN
VIDEO2
IN
OUT
DVR1
IN
OUT
DVR2
IN
OUT
IN
CD-R/TAPE
SIGNAL
GND
ZONE 2
OUT
ZONE 3
OUT
VIDEO
VIDEO
S-VIDEO
FRONT
CENTER
SUBWOOFER
SURROUND SURROUND BACK
FRONT
CENTER
CENTER
L
R
FRONT
B
L
R SURROUND BACK/
L
R
SURROUND
SUBWOOFER
SURROUND SURROUND BACK
(Single)
(Single)
L
L
R
L
R
L
R
FM UNBAL 75
AM LOOP
SPEAKERS
SEE INSTRUCTION
MANUAL
SELECTABLE
VOIR LE MODE
D'EMPLOI
SELECTABLE
AC IN
HDMI
IN
1
OUT
1
3
1
ASSIGNABLE -
(HDMI
CTRL)
OPTICAL
ASSIGNABLE
(TV/SAT)
IN
1
TV/SAT
IN
HDMI OUT
AUDIO OUT
AUDIO
R
L
DIGITAL OUT
HDMI IN
SC-LX81
HDMI-compatible monitor or flat screen TV
HDMI-equipped component
