Other connections 09
69
En
• Use a 3-ringed miniplug SR+ cable to connect the
CONTROL IN jack of this receiver with the CONTROL
OUT jack of your flat screen TV.

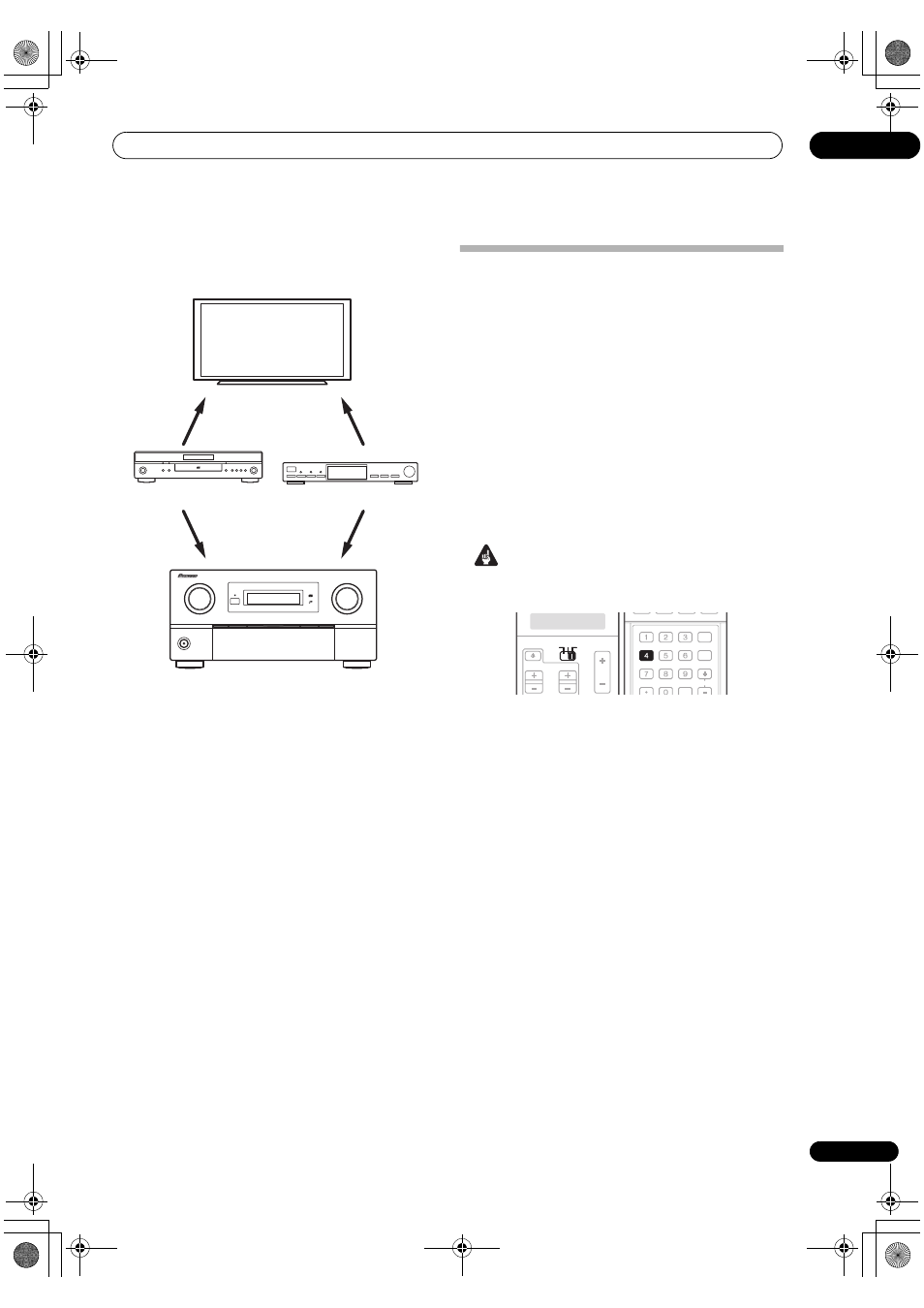

To make the most of the SR+ features, you should
connect your source components (DVD player, etc.) in a
slightly different way to that described in this chapter. For
each component, connect the video output directly to the
flat screen TV, and just connect the audio (analog and/or
digital) to this receiver.
Using the SR+ mode with a Pioneer flat
screen TV
When connected using an SR+ cable, a number of
features become available to make using this receiver
with your Pioneer flat screen TV even easier. These
features include:
• On-screen displays when making receiver settings,
such as speaker setup, MCACC setup, and so on.
• On-screen volume display.
• On-screen display of listening mode.
• Automatic video input switching on the flat screen
TV.
• Automatic volume muting on the flat screen TV.
See also SR+ Setup for Pioneer flat screen TVs on page 93
for more on setting up the receiver.
Important
• The SR+ features do not work when any of the HOME
MEDIA GALLERY function is selected.
1 Make sure that the flat screen TV and this receiver
are switched on and that they are connected with the
SR+ cable.
See
Using this receiver with a Pioneer flat screen TV on
page 68 for more on connecting these components.
• Make sure you have also selected the display input to
which you’ve connected the receiver in The Input
Setup menu on page 90.
2 To switch SR+ mode on/off, set the operation
selector switch to RCV, then press SR+.
The front panel display shows
SR+ ON or SR+ OFF.
• The automatic video input switching and the
automatic volume muting features are enabled
separately; see
SR+ Setup for Pioneer flat screen TVs
on page 93.
 STANDBY/ON
INPUT SELECTOR
PHASE CONTROL ADVANCED MCACC DIGITAL VIDEO SCALER HDMI
MASTER
VOLUME
SC-LX81
VIDEO
INPUT 1
VIDEO
INPUT 2
TV/SAT
AUDIO IN
DVD
AUDIO IN
Pioneer flat screen TV
This receiver
DVD player Satellite receiver, etc.
SOURCE TV RCV
VOL
VOL CH
SOURCE TV RCV
BD MENU
SIGNAL SEL SLEEP AUDIO DIMMER
SR+ SBch MCACC
A.ATT GENRE HDMI OUT
D.ACCESS
ENTER
CLASS
DISP
CH
SR+
