Connecting your equipment 03
21
En

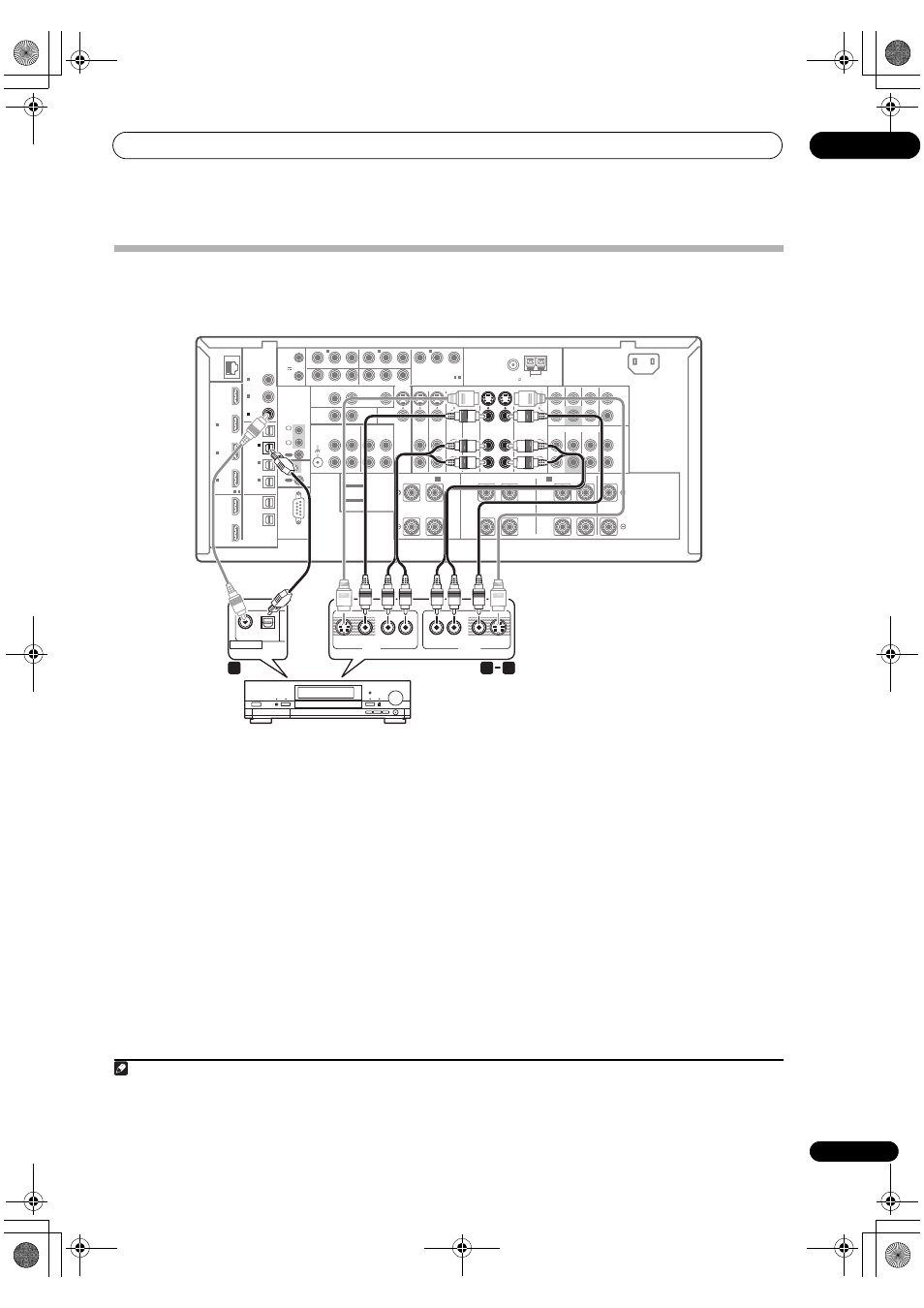

Connecting a DVD/HDD recorder, VCR and other video sources
This receiver has two sets of audio/video inputs and outputs suitable for connecting analog or digital video devices,
including DVD/HDD recorders and VCRs.
1 Connect the audio/video outputs of the video
player/recorder to the DVR 1 AUDIO and VIDEO inputs.
Use a stereo RCA/phono jack audio cable for the audio
connection and a video or S-Video cable for the video
connection.
• For a second recorder, use the DVR 2 IN inputs.
2 If the device can record, connect the DVR 1 AUDIO
and VIDEO outputs to the recorder’s audio/video
inputs.
Use a stereo RCA/phono jack audio cable for the audio
connection and a video or S-Video cable for the video
connection.
• For a second recorder, use the DVR 2 OUT outputs.
3 If the device can output digital audio, connect an
optical-type 1 digital audio output from the recorder to
the OPTICAL IN 2 (DVR 1) input.
Use an optical cable for the connection. 2
• SC-LX81 only: For a second recorder, use the
COAXIAL IN 3 (DVR 2) input.
LAN (10/100)
DIGITAL
OPTICAL
RS-232C
HDMI COMPONENT VIDEO
ANTENNA
PRE OUT
MULTI CH IN
A
IR
CONTROL
BD
IN
12 V
TRIGGER
IN
1
IN
2
IN
3
OUT
1
OUT
2
SOURCE
OUT
ZONE3/
SOURCE
OUT
3 1 ASSIGNABLE -
3 1 ASSIGNABLE -
(HDMI
CTRL)
ASSIGNABLE
(CD-R)
IN 4
(VIDEO1)
IN 3
(DVR1)
IN 2
(TV/SAT)
IN 1
IN 3 (DVR2)
IN 2 (CD)
IN 1 (DVD)
IN 1 IN 2
(OUTPUT
12V
TOTAL
50mA
MAX)
1
2
IN
1
IN
IN
2
OUT
OUT
(DVD)
P R P B Y P R P B Y
P R P B Y (VIDEO1)
IN 3
(VIDEO2)
R
ZONE 2 OUT MONITOR
OUT
PHONO
IN
CD
IN
DVD
IN
TV/SAT
IN
VIDEO1
IN
VIDEO2
IN OUT
DVR1
IN OUT
DVR2
IN OUT IN
CD-R/TAPE
SIGNAL
GND
ZONE 2
OUT
ZONE 3
OUT VIDEO
VIDEO S-VIDEO FRONT CENTER
SUBWOOFER
SURROUND SURROUND BACK
FRONT CENTER
CENTER L R FRONT B L R SURROUND BACK/ L R SURROUND
SUBWOOFER
SURROUND SURROUND BACK
(Single)
(Single)
L
L
R
L
R
L
R
FM UNBAL 75 AM LOOP
SPEAKERS
COAXIAL
ASSIGNABLE
SEE INSTRUCTION
MANUAL
SELECTABLE
VOIR LE MODE
D'EMPLOI
SELECTABLE
AC IN
OUT
DVR1
IN
1 2 3
AV OUT
VIDEO AUDIO R L
AV IN
S-VIDEO AUDIO R L VIDEO S-VIDEO
OPTICAL COAXIAL
DIGITAL OUT
SC-LX81
DVR, VCR, etc.
Note
1 • In order to record, you must connect the analog audio cables (the digital connection is for playback only).
• If your video component doesn’t have a digital audio output, you can skip this step.
2 If your recorder only has a coaxial digital output, you can connect it to one of the coaxial inputs on this receiver using a coaxial digital audio
cable. When you set up the receiver you’ll need to tell the receiver which input you connected the recorder to (see also The Input Setup menu
on page 90).
