Other connections 09
62
En
Switching the speaker system
If you selected Speaker B in Surround back speaker
setting on page 57, three speaker system settings are
possible using
SPEAKERS. If you selected Normal or
Front Bi-Amp, the button will simply switch your main
speaker system on or off. The options below are for the
Speaker B setting only. 1
• Use SPEAKERS on the front panel to select a
speaker system setting.
As mentioned above, if you have selected
Normal, the
button will simply switch your main speaker system (A)
on or off.
Press repeatedly to choose a speaker system option:
• SP A – Sound is output from speaker system A and
the same signal is output from the pre-out terminals.
• SP B – Sound is output from the two speakers
connected to speaker system B. Multichannel
sources will not be heard. The same signal is output
from the surround back channel pre-out terminals.
• SP AB – Sound is output from speaker system A (up
to 5 channels, depending on the source), the two
speakers in speaker system B, and the subwoofer.
The sound from speaker system B will be the same as
the sound from speaker system A (multichannel
sources will be downmixed to 2 channels).
• SP  (off) – No sound is output from the speakers. The
same sound is output from the pre-out terminals
(including from your subwoofer, if connected) as
when selecting speaker system A (above).
Bi-amping your speakers
Bi-amping is when you connect the high frequency driver
and low frequency driver of your speakers to different
amplifiers for better crossover performance. Your
speakers must be bi-ampable to do this (having separate
terminals for high and low) and the sound improvement
will depend on the kind of speakers you’re using.
1 Connect your speakers as shown next page.

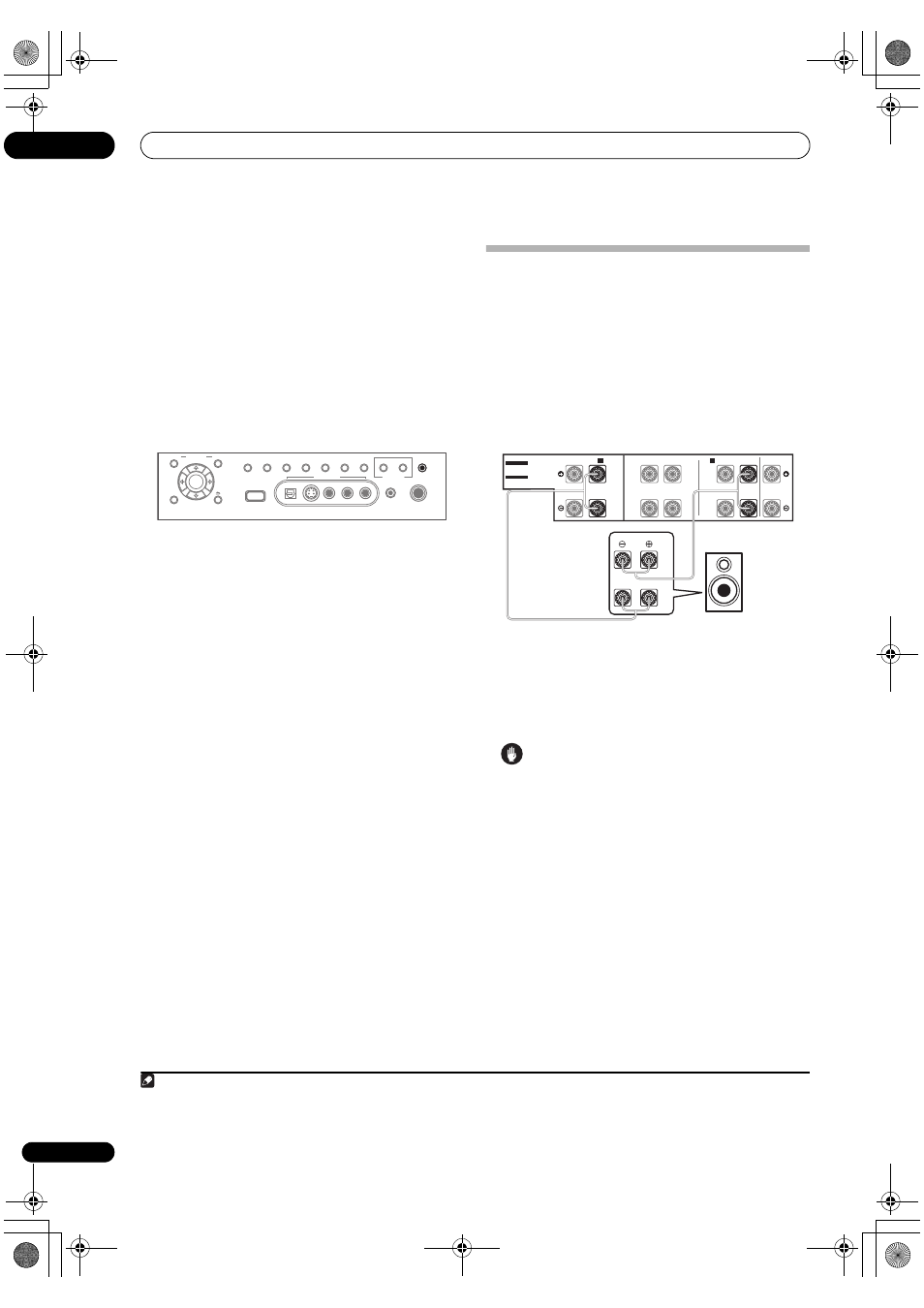

This illustration below shows the connections for bi-
amping your front left speaker. Hook up your bi-amp
compatible speakers for other channels in the same way.
• Make sure that the + / – connections are properly
inserted.
2 Select the ‘Front Bi-Amp’ setting from the ‘Surr
Back System’ menu.
See
Surround back speaker setting on page 57 to specify
how you’re using the surround back speaker terminals.
Caution
• Most speakers with both High and Low terminals
have two metal plates that connect the High to the
Low terminals. These must be removed when you are
bi-amping the speakers or you could severely
damage the amplifier. See your speaker manual for
more information.
• If your speakers have a removable crossover network,
make sure you do not remove it for bi-amping. Doing
so may damage your speakers.
Note
1 • The subwoofer output depends on the settings you made in Manual speaker setup on page 56. However, if SP B is selected above, no sound
is heard from the subwoofer (the LFE channel is not downmixed).
• Depending on the settings in
Surround back speaker setting on page 57 output from the surround back pre-out terminals may change.
• All speaker systems (except Speaker B connections) are switched off when headphones are connected.
VIDEO3 INPUT
DIGITAL IN S-VIDEO VIDEO L R AUDIO PHONES
SPEAKERS CONTROL
MULTI-ZONE & SOURCE
ON/OFF
MCACC
SETUP MIC
PARAMETER
ENTER
(TUNE)
(TUNE)
(ST) (ST)
AUDIO VIDEO
TUNER EDIT
iPod DIRECT
USB
AUTO SURR/
STREAM DIRECT
HOME
THX
STANDARD
SURROUND ADVANCED
SURROUND STEREO/
A.L.C. BAND
HOME MENU RETURN
SPEAKERS A CENTER L R FRONT B L R SURROUND BACK/ L R SURROUND (Single) A L R FRONT
SPEAKERS
B L R SURROUND BACK/ (Single)
High
Low
SEE INSTRUCTION
MANUAL
SELECTABLE
VOIR LE MODE
D'EMPLOI
SELECTABLE
Bi-amp
compatible
speaker
