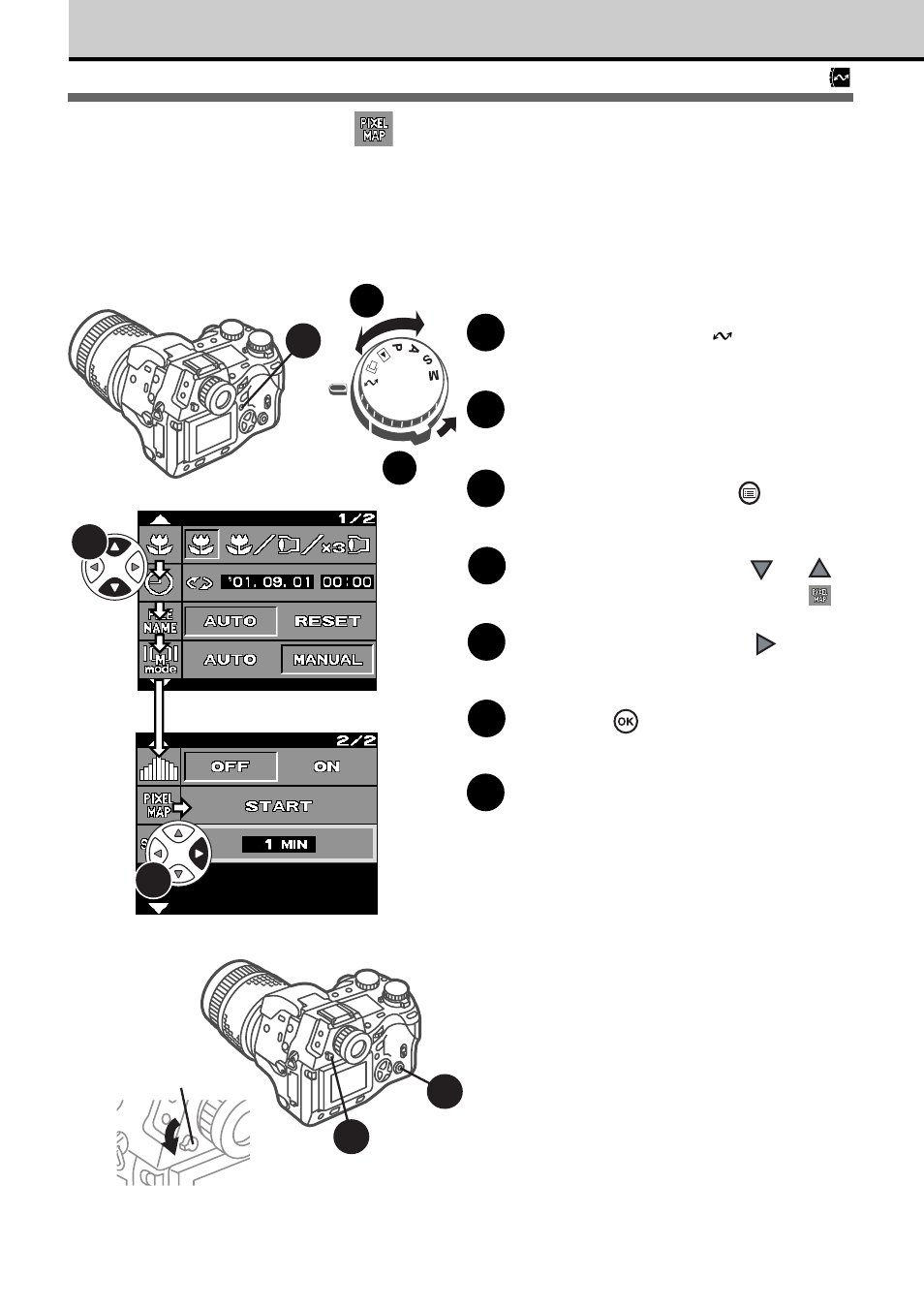

Pixel Mapping
Pixel Mapping checks the image processing circuit and adjusts the CCD. This checking
and adjustment is performed at the factory before shipping. Pixel Mapping needs to be
performed at least once a year. For the best effect, one minute interval after shooting or
playback is needed prior to Pixel Mapping.
1
Set the mode dial to
(Setup/
connection mode).
2
Turn the power switch to align the
white line with ON.
3
Press the menu button
.
The menu is displayed on the moniter.
4
On the arrow pad, press
or
to move the green highlight to
.
5
On the arrow pad, press
to
move the green highlight to START.
6
Press the
button.
“START PIXEL MAPPING?” is displayed.
7
Press the eyepiece shutter lever
down to close the eyepiece shutter
to prevent light from entering
through the viewfinder.
3
ON
OFF
5
4
6
7
Eyepiece shutter lever
1
2
