5. Reinstall the PCI card bracket assembly by doing the following:
a. Install the small low-profile PCI card bracket into the main PCI card bracket as shown.

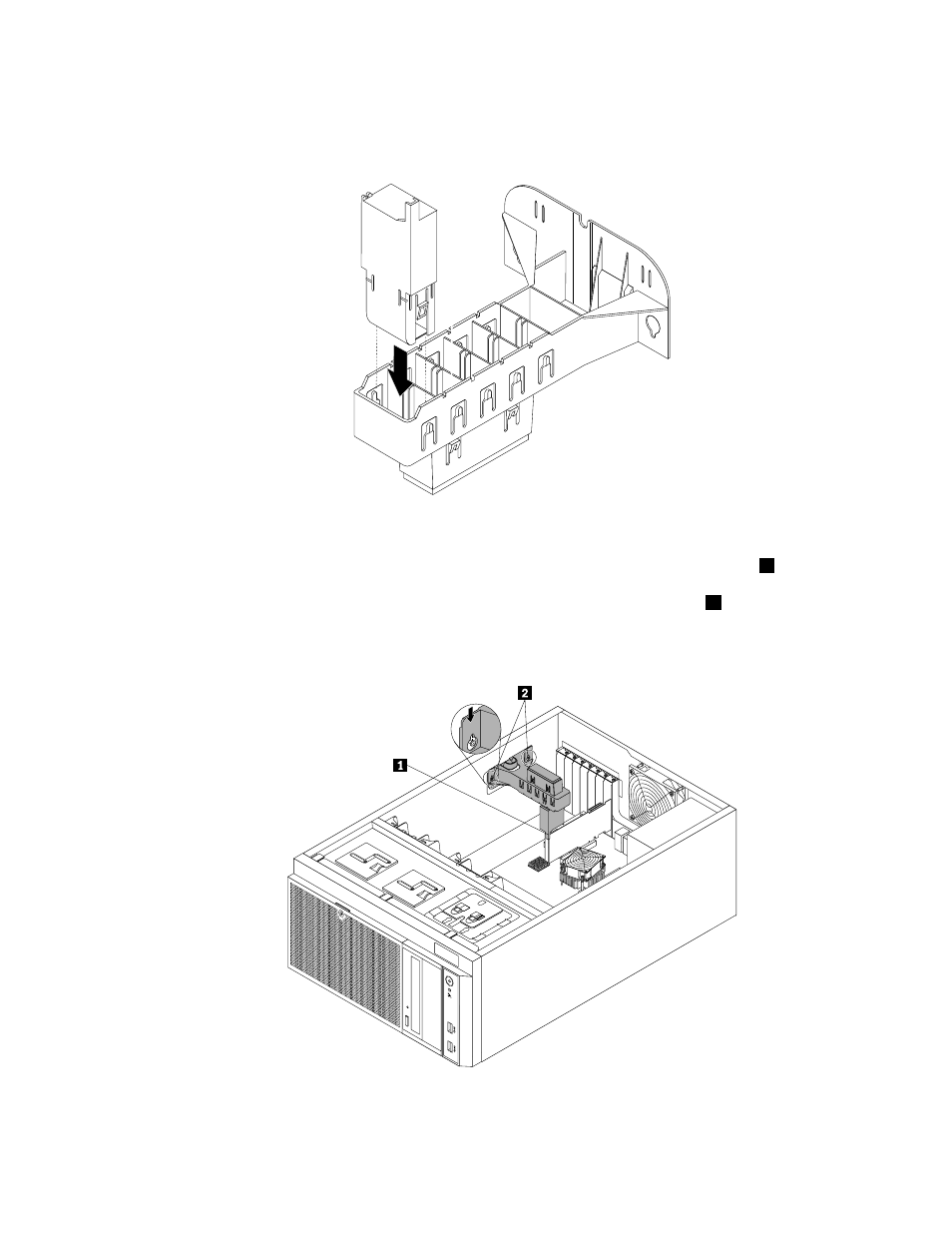

Figure 32. Installing the small low-profile PCI card bracket into the main PCI card bracket
b. Place the PCI card bracket assembly into the chassis so that the two retention posts 2 on the
bottom of the chassis are inserted into the corresponding holes in the PCI card bracket assembly.
Ensure that the edge of the RAID card can be smoothly inserted into the slot
1 in the small
low-profile PCI card bracket. Then, carefully press the PCI card bracket assembly down until it is
securely installed and locked into position by the two retention posts.
Figure 33. Reinstalling the PCI card bracket assembly
Chapter 6 . Installing, removing, or replacing hardware 73
