Front view of the server
This topic provides information to help you locate the parts on the front of the server.

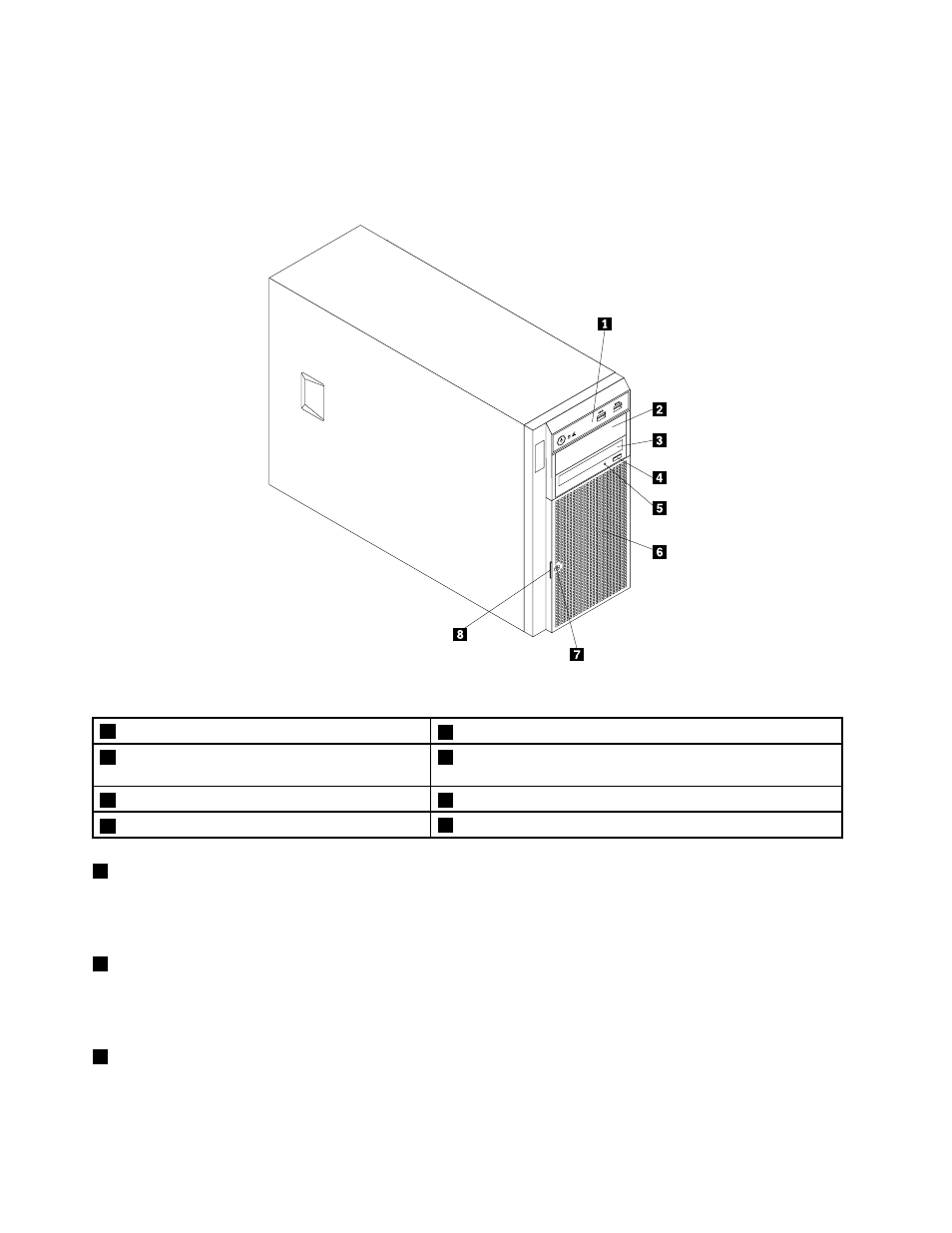

The following illustration shows the front view of the server.
Figure 3. Front view of the server
1 Front panel 5 Optical drive status LED
2 Optical drive bay 2 (with an optical drive installed
in some models)
6 Front door
3 Optical drive bay 1 (with an optical drive installed) 7 Front door lock
4 Optical drive eject/close button 8 Front door handle
1 Front panel
For detailed information about the control, connectors, and status LEDs on the front panel, see “Front
panel” on page 16.
2 Optical drive bay 2
The 5.25-inch optical drive bay 2 is for a secondary optical drive. Some models have a secondary optical
drive installed.
3 Optical drive bay 1
Your server comes with an optical drive installed in the 5.25-inch optical drive bay 1.
