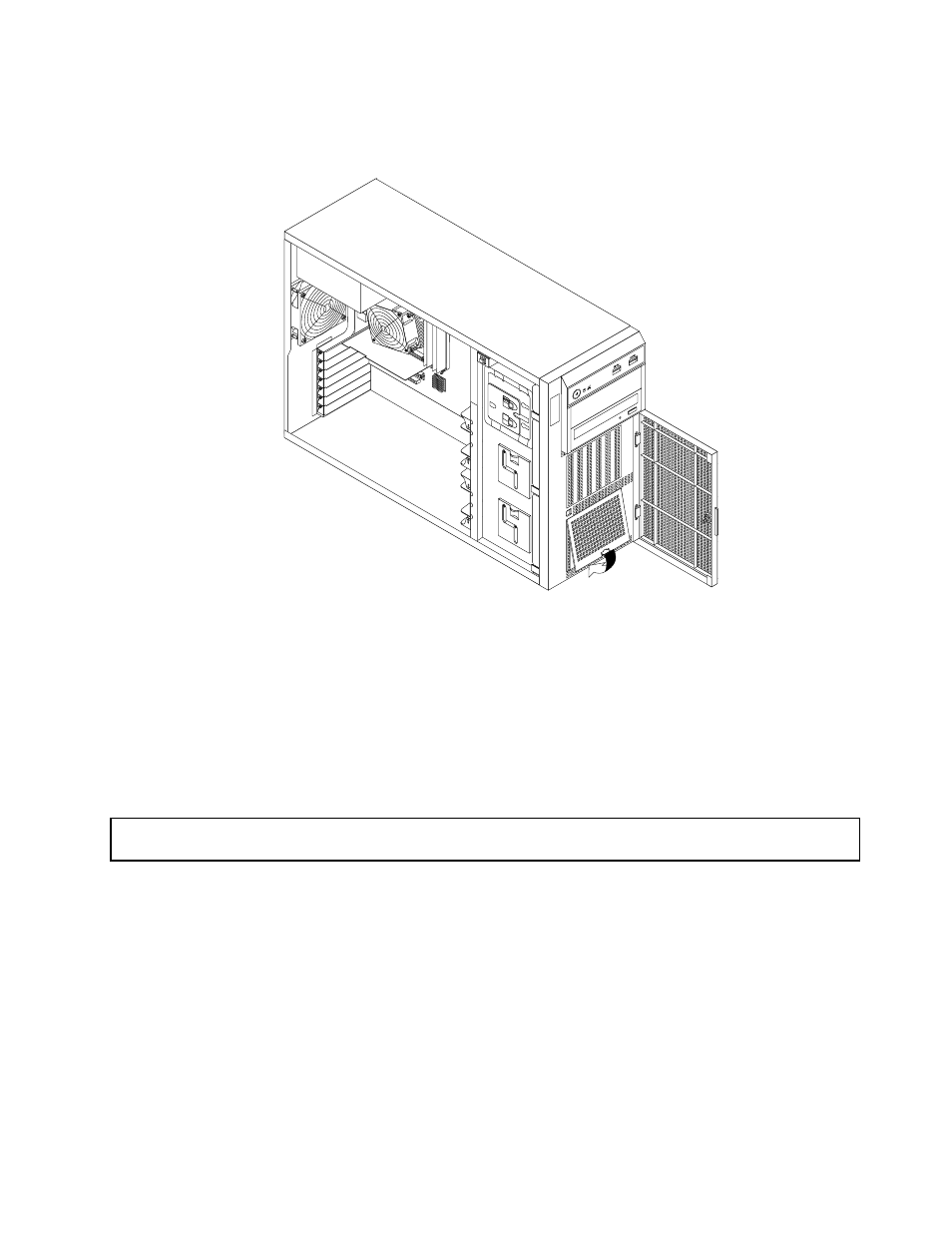

13. Align the top edge of the EMI-protective panel with the top side of the hard-disk-drive cage, and then
pivot the EMI-protective panel down until it snaps into position.
Figure 53. Installing the EMI-protective panel
14. Close and lock the front door.
What to do next:
• To work with another piece of hardware, go to the appropriate section.
• To complete the installation, go to “Completing the parts replacement” on page 157. Then, you might
need to reconfigure RAID for your server. See “Configuring RAID” on page 57.
Removing a non-hot-swap hard disk drive
Attention: Do not open your server or attempt any repair before reading and understanding “Safety information”
on page iii and “Guidelines” on page 65.
This topic provides instructions on how to remove a non-hot-swap hard disk drive.
This topic applies only to server models that have non-hot-swap hard disk drives installed. See “Features”
on page 7 for more information about the supported non-hot-swap hard disk drives.
Before you begin, review the following hard-disk-drive installation rules:
• Follow the order of the hard-disk-drive bays when installing a hard disk drive. See “Server components”
on page 23 to locate the hard-disk-drive bays in your server.
• For RAID configuration, the hard disk drives must be the same type with the same capacity if they are
within a single RAID array. For more information, see “Configuring RAID” on page 57.
• For hard disk drives with different capacities, install the hard disk drive by following the order of the
hard-disk-drive bays as well as the order from the lowest capacity to the highest capacity.
.
