ThinkServer RAID 700 Adapter

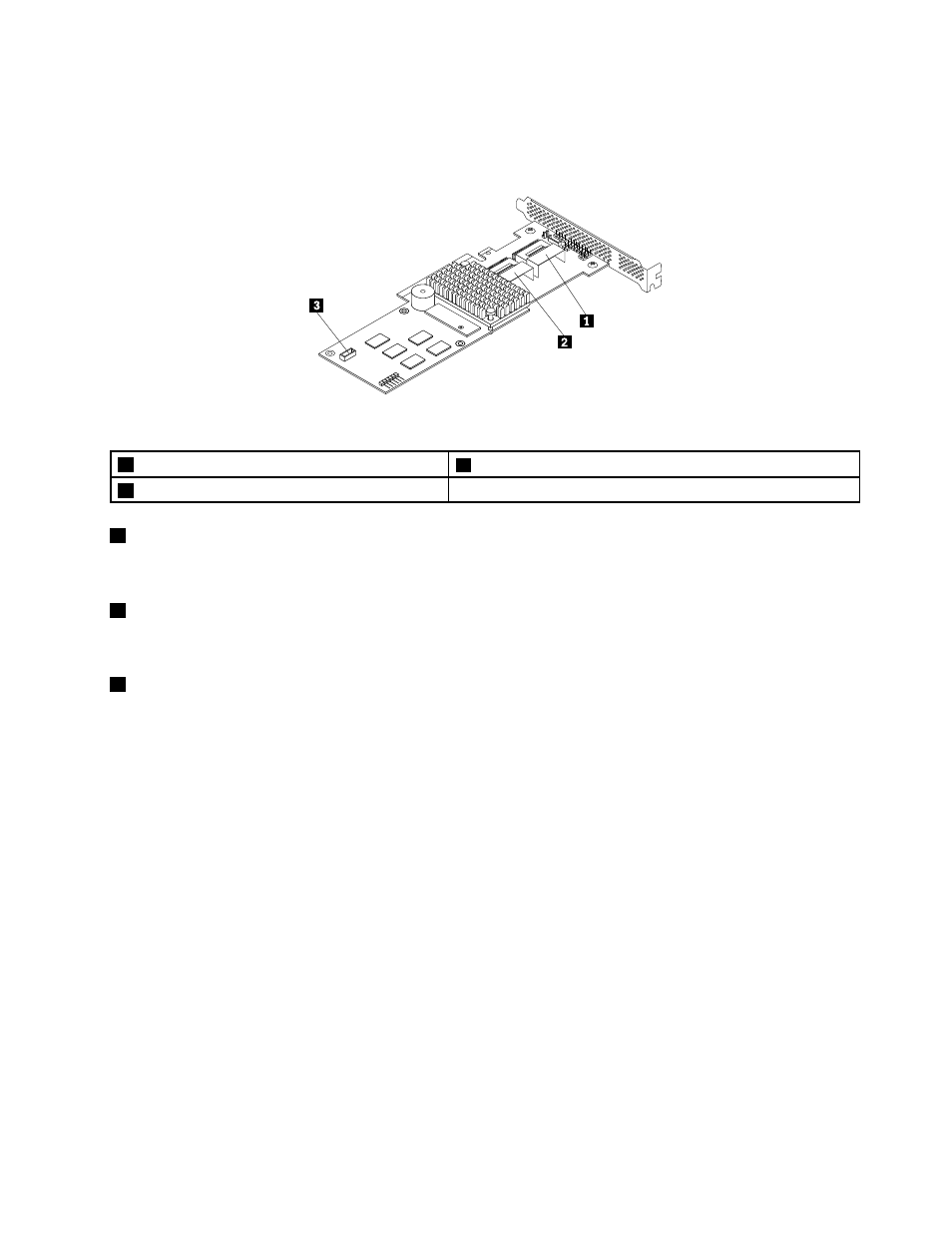

The following illustration shows the connectors on the ThinkServer RAID 700 Adapter.
Figure 17. ThinkServer RAID 700 Adapter
1 Ports 7-4 3 ThinkServer RAID 700 Battery connector
2 Ports 3-0
1 Ports 7-4
Used to connect a mini-SAS signal cable. See “Connecting the cables” on page 35.
2 Ports 3-0
Used to connect a mini-SAS signal cable. See “Connecting the cables” on page 35.
3 ThinkServer RAID 700 Battery connector
Used to connect a ThinkServer RAID 700 Battery. See “Installing or removing the ThinkServer RAID 700
Battery” on page 88.
Hot-swap hard-disk-drive backplane
Your server might come with one of the following hot-swap hard disk drive and backplane configurations:
• Five to eight 3.5-inch hot-swap SATA or SAS hard disk drives with two backplanes
• Up to four 3.5-inch hot-swap SATA or SAS hard disk drives with one backplane
• Up to eight 2.5-inch hot-swap SAS hard disk drives with one backplane
