8. Install the new non-hot-swap hard disk drive into a blue bracket by flexing the sides of the bracket and
aligning pin 1 , pin 2 , pin 4 , and pin 5 on the bracket with the corresponding holes in the hard disk
drive so that the hard disk drive can be seated in the bracket.
Note: Do not touch the circuit board 3 on the bottom of the hard disk drive.

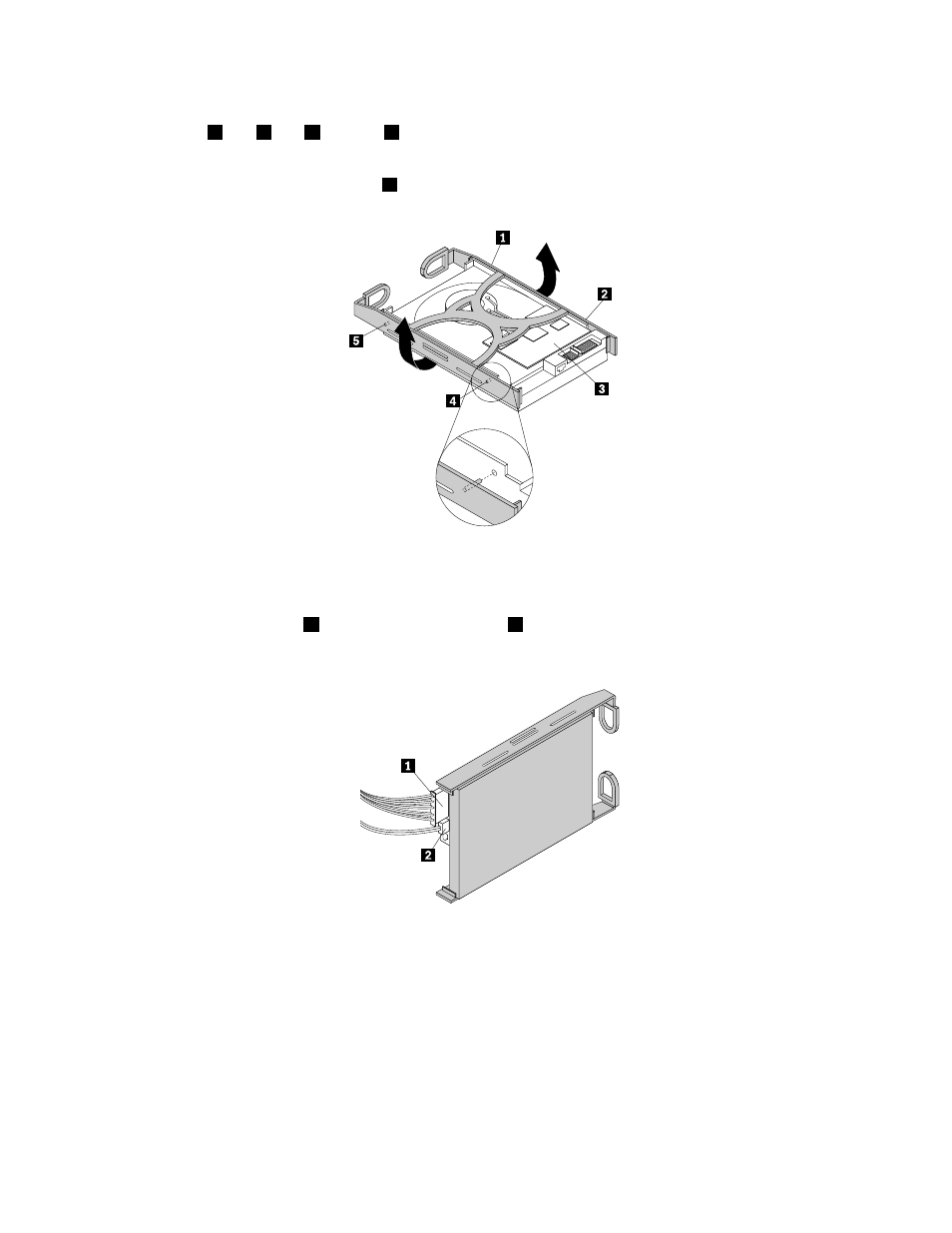

Figure 51. Installing the non-hot-swap hard disk drive into the bracket
9. Slide the new non-hot-swap hard disk drive with bracket into the drive bay until it snaps into position.
10. Connect the power cable 1 and the SATA signal cable 2 to the rear of the non-hot-swap hard disk
drive. See “Connecting the cables” on page 35
Figure 52. Connecting cables to the rear of the non-hot-swap hard disk drive
11. Connect the other end of the SATA signal cable to the appropriate SATA connector on the system board.
See “System board components” on page 38.
12. Reinstall the front system fan 1. See “Replacing the front system fan 1” on page 144.
98 ThinkServer TS440 User Guide
