Backplane for server models with eight 2.5-inch hot-swap hard-disk-drive bays
This topic provides information to help you locate the connectors on the backplane for server models
with eight 2.5-inch hot-swap hard-disk-drive bays.
The following illustrations show the connectors on the backplane for server models with eight 2.5-inch
hot-swap hard-disk-drive bays.

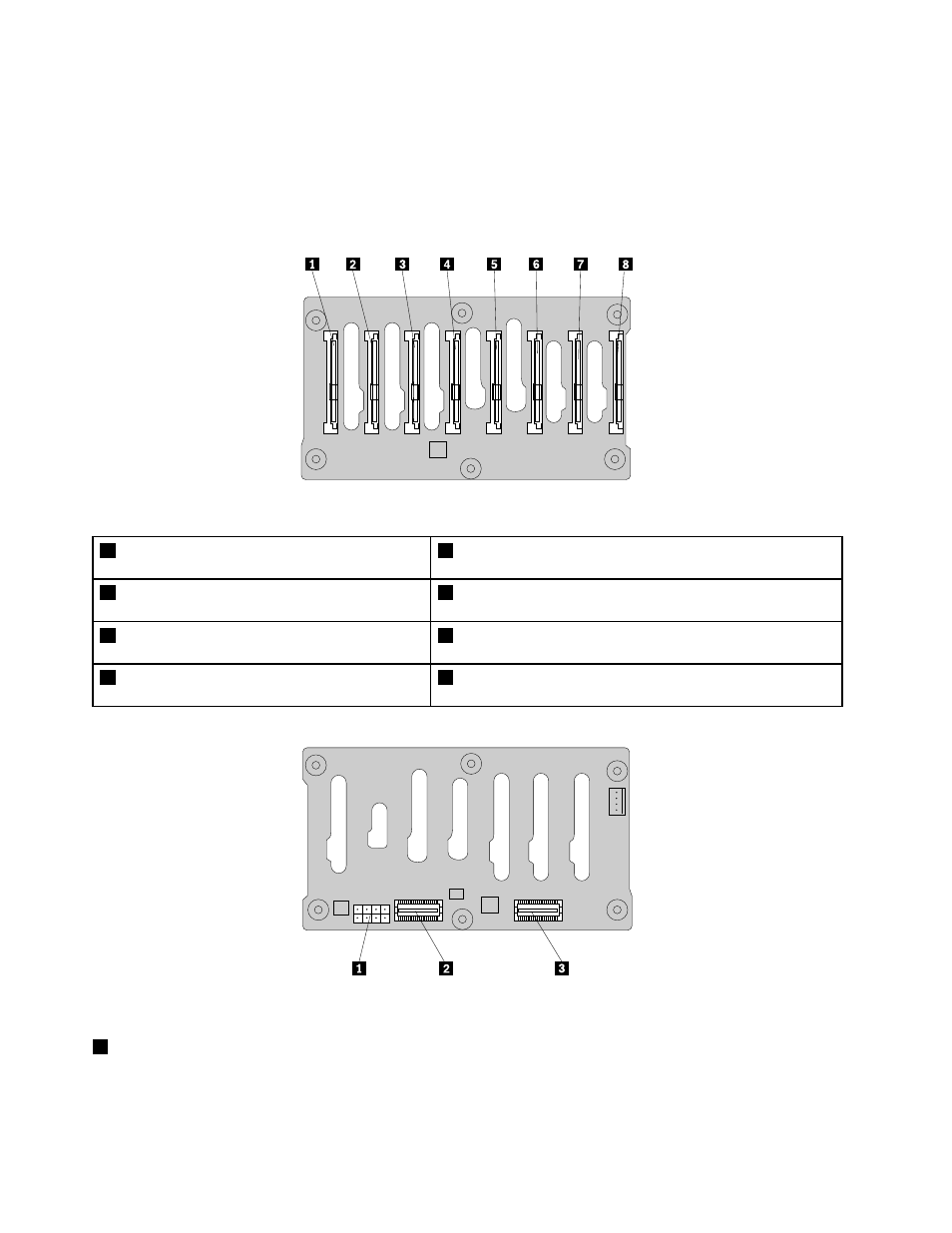

Figure 21. Front view of the backplane for server models with eight 2.5-inch hot-swap hard-disk-drive bays
1 Slot 0 for a 2.5-inch SAS hot-swap hard disk
drive
5 Slot 4 for a 2.5-inch SAS hot-swap hard disk drive
2 Slot 1 for a 2.5-inch SAS hot-swap hard disk
drive
6 Slot 5 for a 2.5-inch SAS hot-swap hard disk drive
3 Slot 2 for a 2.5-inch SAS hot-swap hard disk
drive
7 Slot 6 for a 2.5-inch SAS hot-swap hard disk drive
4 Slot 3 for a 2.5-inch SAS hot-swap hard disk
drive
8 Slot 7 for a 2.5-inch SAS hot-swap hard disk drive
Figure 22. Rear view of the backplane for server models with eight 2.5-inch hot-swap hard-disk-drive bays
1 8-pin power connector
Used to connect a power cable.
