9.
Install lower boot drive in boot drive module with circuit side facing down
and connectors oriented toward backplane (see 1 in the following figure).
Secure disk drive to boot drive module with four screws (see 2 ).
10.
(Optional) Install second boot drive in upper slot with circuit side facing up
and connectors oriented toward backplane (see 1 in the following figure).
Secure disk drive to boot drive module with four screws (see 2 ).

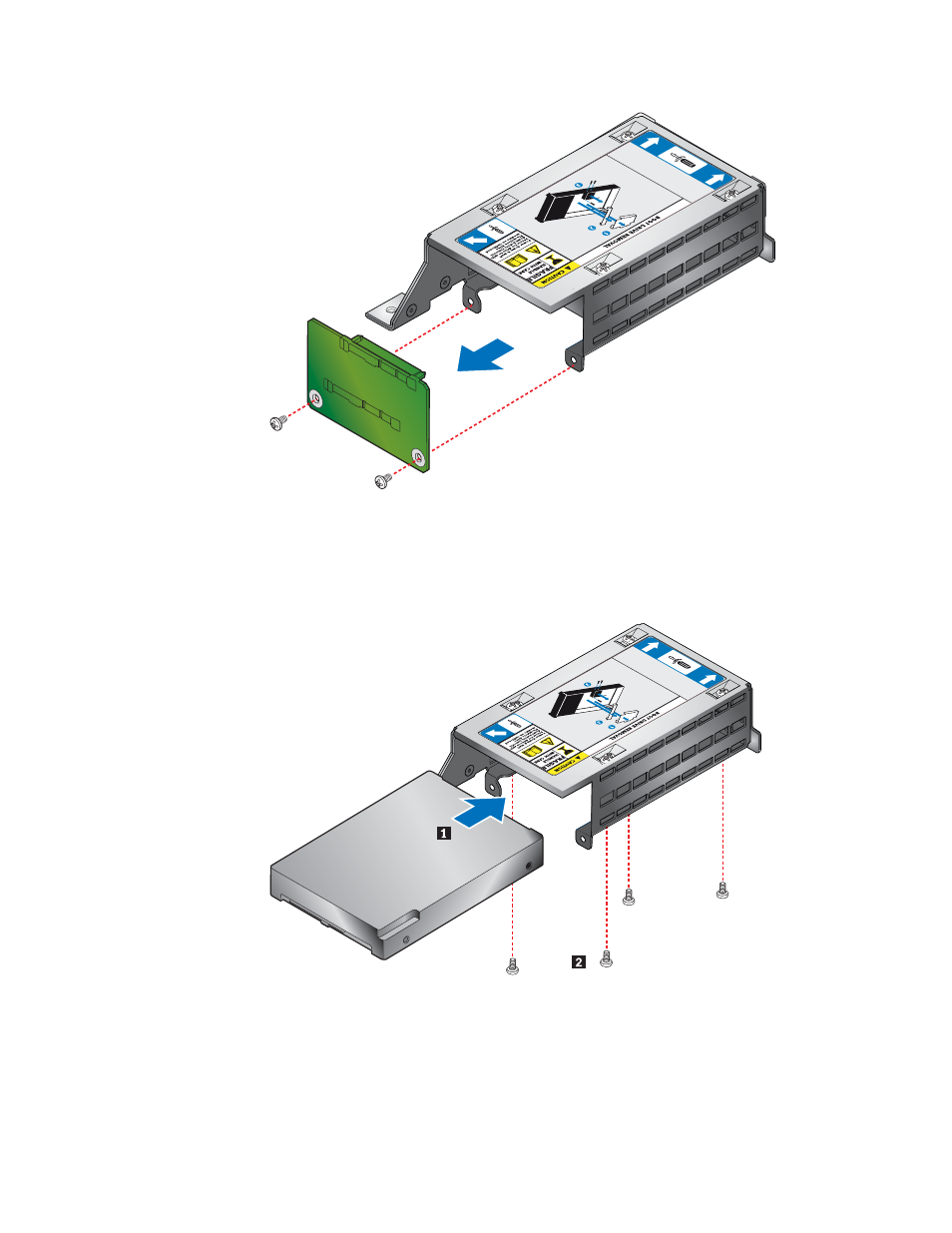

Figure 34. Removing backplane from boot drive module
Figure 35. Installing lower boot drive
Chapter 3. Hardware installations and upgrades 33
